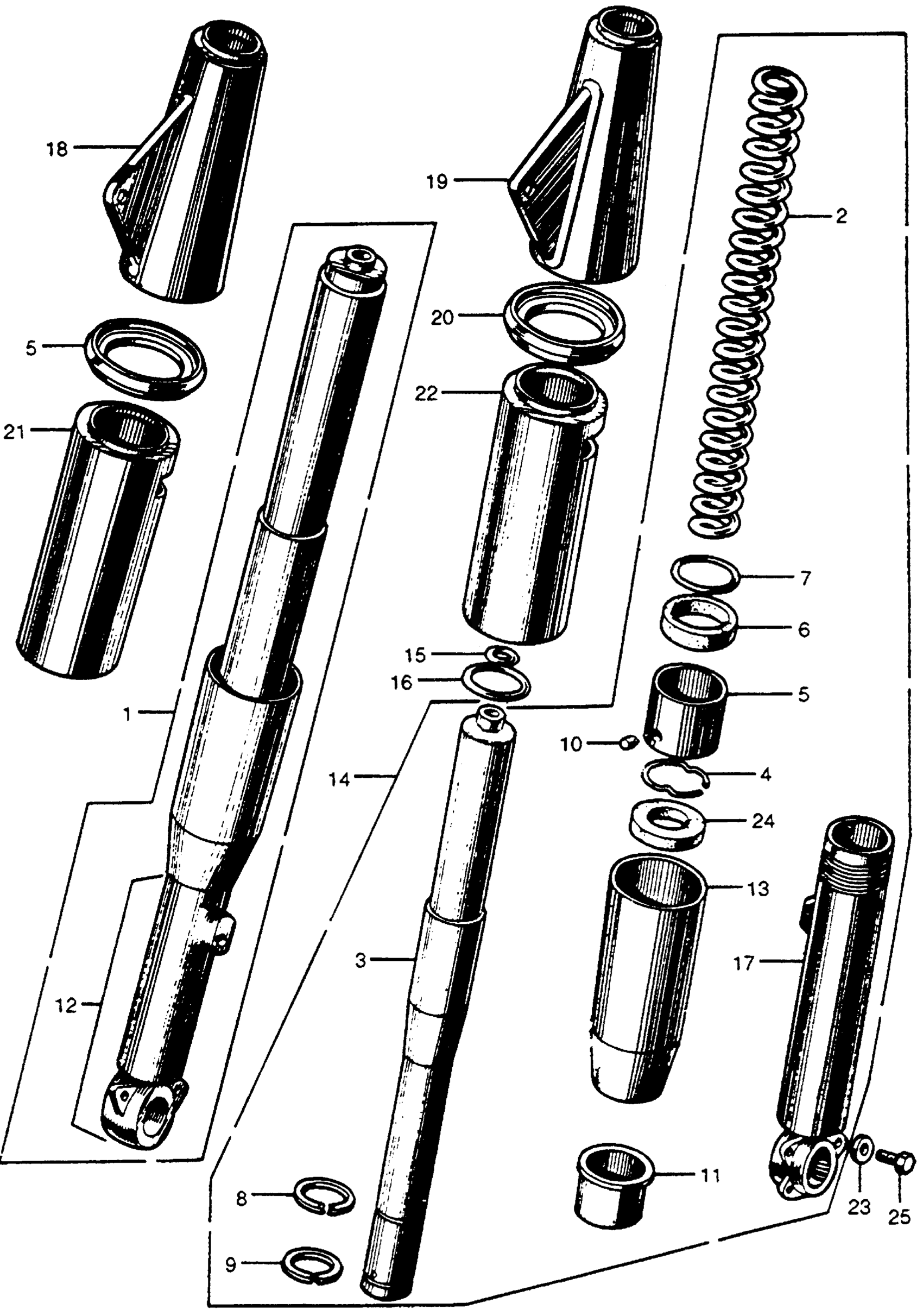

Honda CB72A MOTORCYCLE, JPN, VIN# CB72-100001 FRONT FORK I Diagram

#

Description
Price

1

FORK ASSY., R. FR. | Use from Frame SN 0010001 to 0029881

51400-268-000Z

Unavailable

1

FORK ASSY., R. FR. | Use from Frame SN 0310001 to 0311005

51400-268-000Z

Unavailable

1

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51400-268-010Z

Unavailable

1

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 0400001 to 1005227

51400-268-010Z

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0010001 to 1005227

51401-268-000

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029881

51410-268-060

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51410-268-070

Unavailable

4

RETAINER, FR. FORK OIL SEAL (NOT AVAILABLE)

51432-268-000

Unavailable

5

PISTON, FR. FORK (NOT AVAILABLE)

51442-268-040

Unavailable

6

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-268-020

Unavailable

7

RING, FORK PIPE STOPPER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0024501

51444-268-000

Unavailable

7

RING, FORK PIPE STOPPER (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51444-268-000

Unavailable

7

RING, FORK PIPE STOPPER (NOT AVAILABLE) | Use from Frame SN 0310001 to 0315446

51444-268-000

Unavailable

7

RING, FORK PIPE STOPPER (NOT AVAILABLE) | Use from Frame SN 0400001

51444-268-000

Unavailable

8

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-268-000

Unavailable

9

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-268-000

Unavailable

10

PIN, FORK PISTON KNOCK (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029881

51448-268-000

Unavailable

11

GUIDE, FR. FORK PIPE (NOT AVAILABLE) | Use from Frame SN 0010001 to 1005227

51451-268-000

Unavailable

12

CASE, R. FR. FORK (LOWER) | Use from Frame SN 0010001 to 0029881

51465-268-010Z

Unavailable

12

CASE, R. FR. FORK (LOWER) | Use from Frame SN 0310001 to 0311005

51465-268-010Z

Unavailable

12

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51465-268-020Z

Unavailable

12

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0400001 to 1005227

51465-268-020Z

Unavailable

13

HOUSING, FR. FORK SEAL (NOT AVAILABLE) | Use from Frame SN 0010001 to 1005227

51471-268-000

Unavailable

14

FORK ASSY., L. FR. | Use from Frame SN 0010001 to 0029881

51500-268-000Z

Unavailable

14

FORK ASSY., L. FR. | Use from Frame SN 0310001 to 0311005

51500-268-000Z

Unavailable

14

FORK ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51500-268-010Z

Unavailable

14

FORK ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN 0400001 to 1005227

51500-268-010Z

Unavailable

15

O-RING (9.4X2.4) This part replaces 51521-268-010.

91304-KK3-830

$2.31

15

O-RING (9.4X2.4)

91304-KK3-830

$2.31

15

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

16

O-RING (40.5X3) (NOT AVAILABLE)

51522-268-000

Unavailable

17

CASE, L. FR. FORK (LOWER) | Use from Frame SN 0010001 to 0029881

51565-268-010Z

Unavailable

17

CASE, L. FR. FORK (LOWER) | Use from Frame SN 0310001 to 0311005

51565-268-010Z

Unavailable

17

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51565-268-020Z

Unavailable

17

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0400001 to 1005227

51565-268-020Z

Unavailable

18

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51602-268-030Z

Unavailable

18

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 0400001

51602-268-030Z

Unavailable

18

COVER, R. FR. FORK (UPPER) | Use from Frame SN 0010001 to 0029881

51602-270-000Z

Unavailable

18

COVER, R. FR. FORK (UPPER) | Use from Frame SN 0310001 to 0311005

51602-270-000Z

Unavailable

19

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0100001 to 0109800

51606-268-030Z

Unavailable

19

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0311006 to 0315446

51606-268-030Z

Unavailable

19

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0400001

51606-268-030Z

Unavailable

19

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0010001 to 0029881

51606-270-000Z

Unavailable

19

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0310001 to 0311005

51606-270-000Z

Unavailable

20

RIM, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029881

51608-268-010

Unavailable

20

RIM, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51608-268-020

Unavailable

20

RIM, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0400001

51608-268-020

Unavailable

21

COVER, R. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029881

51611-268-010Z

Unavailable

21

COVER, R. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51611-268-020Z

Unavailable

21

COVER, R. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0400001

51611-268-020Z

Unavailable

22

COVER, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029881

51612-268-010Z

Unavailable

22

COVER, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109800

51612-268-020Z

Unavailable

22

COVER, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 0400001 to 1005227

51612-268-020Z

Unavailable

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

OIL SEAL (33X46X10) | Use from Frame SN 0100001 to 1005227

90755-268-000

Unavailable

25

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
