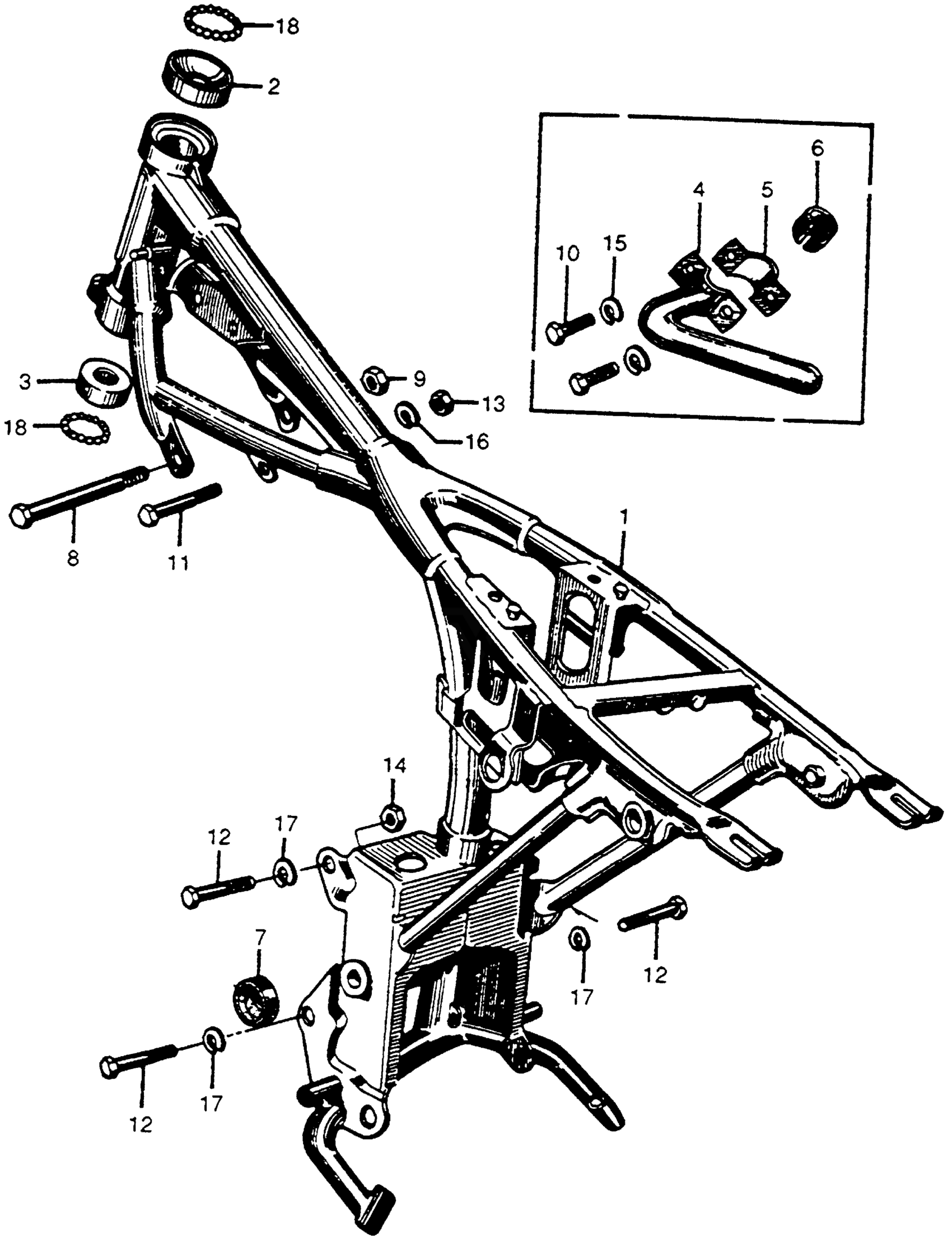

Honda CB72A MOTORCYCLE, JPN, VIN# CB72-100001 FRAME Diagram

#

Description
Price

1

FRAME (NOT AVAILABLE)

50100-268-050Z

Unavailable

2

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

2

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

2

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

3

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

4

GRIP, SIDE (NOT AVAILABLE) | Use from Frame SN 0402265

50316-268-000B

Unavailable

5

BRACKET, SIDE GRIP (NOT AVAILABLE) | Use from Frame SN 0402265

50317-268-000Z

Unavailable

6

GASKET, SIDE GRIP (NOT AVAILABLE)

50318-268-000

Unavailable

7

RUBBER, SWINGARM DUST SEAL CAP This part replaces 52145-268-000.

52145-329-000

$7.36

7

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

8

BOLT, ENGINE HANGER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0011370

90105-268-000

Unavailable

8

BOLT, ENGINE HANGER (NOT AVAILABLE) | Use from Frame SN 0011371

90105-268-020

Unavailable

9

NUT, SELF-LOCK (10MM) | Use from Frame SN 0011371

90351-268-000

$2.87

10

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

10

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

10

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

10

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49

11

BOLT, HEX. (8X45) This part replaces 92000-08045.

92101-08045-0A

$2.13

11

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$2.13

11

BOLT, HEX. (8X45) This part replaces 92000-08045-00.

92101-08045-0A

$2.13

11

BOLT, HEX. (8X45)

92101-08045-0A

$2.13

12

BOLT, HEX. (10X48) (NOT AVAILABLE)

92000-10048

Unavailable

13

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

13

NUT, HEX. (8MM)

94030-08000

$1.49

13

NUT, HEX. (8MM) | Use from Frame SN 0011371

94030-08000

$1.49

13

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

14

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

14

NUT, HEX. (10MM)

94030-10000

$1.49

14

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

15

WASHER, PLAIN (8MM)

94101-08000

$1.49

16

WASHER, SPRING (8MM)

94111-08000

$1.49

17

WASHER, SPRING (8MM)

94111-10000

$1.49

18

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
