CRANKSHAFT + PISTON

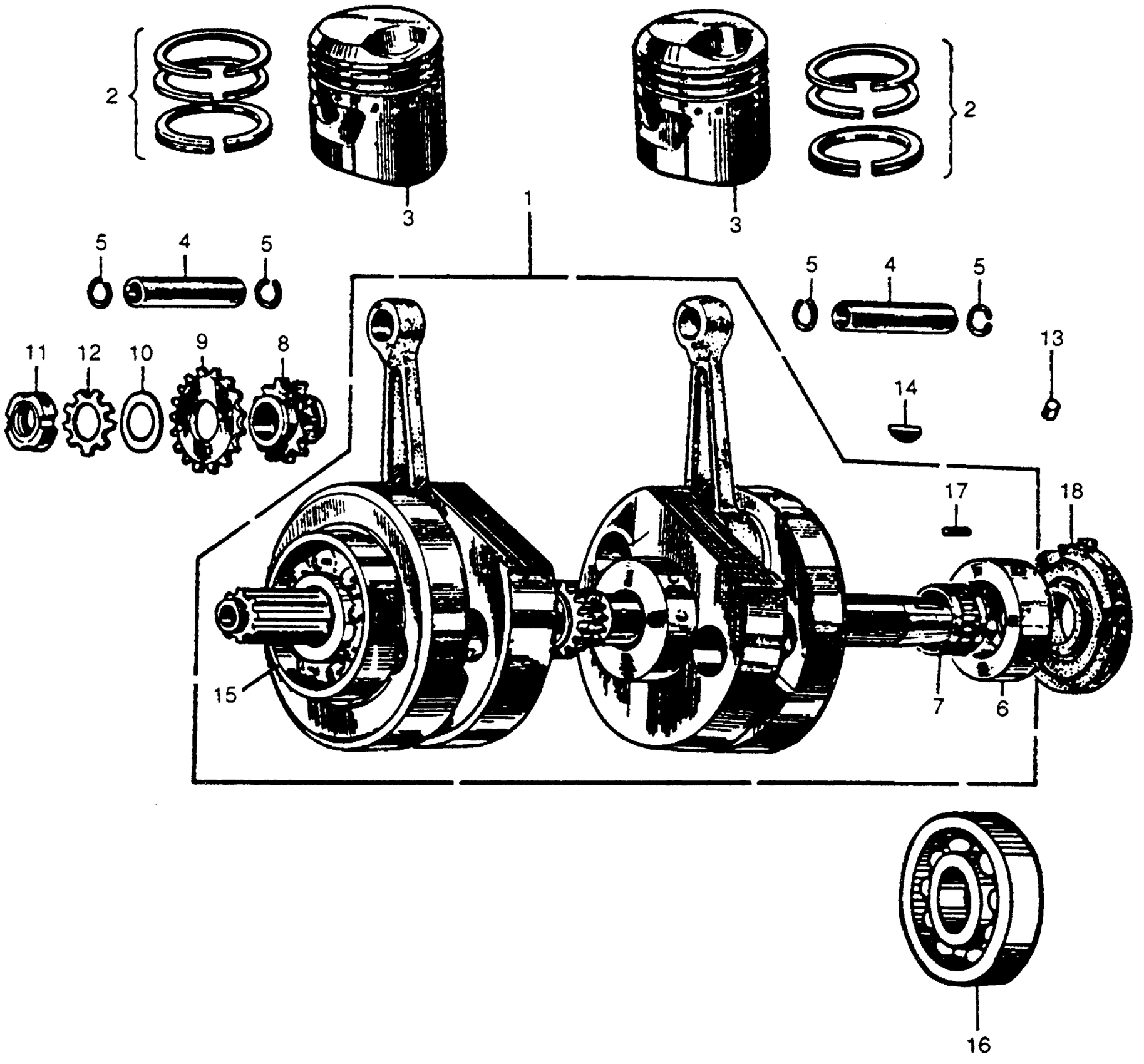

Honda CB72A MOTORCYCLE, JPN, VIN# CB72-100001 CRANKSHAFT + PISTON Diagram
#
1
CRANKSHAFT ASSY. | Use from Engine SN 0110001 to 0112068
13000-268-010
Unavailable
1
CRANKSHAFT ASSY. This part replaces 13000-268-020.
13000-268-030
Unavailable
1
CRANKSHAFT ASSY.
13000-268-030
Unavailable
2
RING SET, PISTON (STD)
13010-268-000
Unavailable
2
RING SET (OS) (0.25) | (Optional). This part replaces 13020-268-000.
13021-504-305
Unavailable
2
RING SET (OS) (0.50) | (Optional). This part replaces 13030-268-000.
13031-504-305
Unavailable
2
RING SET (OS) (0.75) | (Optional). This part replaces 13040-268-000.
13041-504-305
Unavailable
2
RING SET (1.00) | (Optional). This part replaces 13050-268-000.
13051-504-305
Unavailable
3
PISTON (STD) | Use from Engine SN 0104082 to 0104165
13101-268-030
Unavailable
3
PISTON (STD) | Use from Engine SN 0400001
13101-268-030
Unavailable
3
PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). Use from Engine SN 0100001 to 0104081
13102-268-010
Unavailable
3
PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). Use from Engine SN 0104082 to 0104165
13102-268-030
Unavailable
3
PISTON (OS 0.50) (NOT AVAILABLE) | (Optional). Use from Engine SN 0100001 to 0104081
13103-268-010
Unavailable
3
PISTON (OS 0.50) | (Optional). Use from Engine SN 0104082 to 0104165
13103-268-030
Unavailable
3
PISTON (OS 0.50) | (Optional). Use from Engine SN 0400001
13103-268-030
Unavailable
3
PISTON (0.75) (NOT AVAILABLE) | (Optional). Use from Engine SN 0100001 to 0104081
13104-268-010
Unavailable
3
PISTON (0.75) (NOT AVAILABLE) | (Optional). Use from Engine SN 0104082 to 0104165
13104-268-030
Unavailable
3
PISTON (1.00) | (Optional). Use from Engine SN 0100001 to 0104081
13105-268-010
Unavailable
3
PISTON (1.00) | (Optional). Use from Engine SN 0110001 to 0315446
13105-268-010
Unavailable
3
PISTON (1.00) (NOT AVAILABLE) | (Optional). Use from Engine SN 0400001
13105-268-030
Unavailable
4
PIN, PISTON
13111-MA7-000
Unavailable
4
PIN, PISTON This part replaces 13111-250-000.
13111-MA7-000
Unavailable
4
PIN, PISTON (OS) (NOT AVAILABLE)
13112-250-305
Unavailable
6
RACE, BEARING (OUTER) This part replaces 13411-268-010.
13411-268-020
Unavailable
6
RACE, BEARING (OUTER)
13411-268-020
Unavailable
7
RETAINER, ROLLER | Use from Engine SN 0100001 to 0104165
13481-268-010
Unavailable
7
RETAINER, ROLLER | Use from Engine SN 0112069
13481-268-010
Unavailable
8
SPROCKET, PRIMARY DRIVE This part replaces 13611-259-010.
13611-259-020
Unavailable
8
SPROCKET, PRIMARY DRIVE
13611-259-020
Unavailable
9
SPROCKET, OIL FILTER DRIVE (NOT AVAILABLE)
13621-259-010
Unavailable
10
SPRING, FILTER DRIVE SPROCKET (NOT AVAILABLE)
13692-259-000
Unavailable
11
NUT, LOCK (20MM) (NOT AVAILABLE)
90231-259-010
Unavailable
12
WASHER, LOCK (20MM) (NOT AVAILABLE)
90431-259-010
Unavailable
13
PIN, KNOCK (7X5X12) (NOT AVAILABLE) | Use from Engine SN 0100001 to 0104165
90701-259-010
Unavailable
14
KEY, WOODRUFF
90741-253-000
Unavailable
15
BEARING, BALL (6306) | Use from Engine SN 0110001 to 0113067
91001-259-010
Unavailable
15
BEARING, BALL (6306) | Use from Engine SN 0100001 to 0104165 This part replaces 91001-259-020.
91001-286-003
Unavailable
15
BEARING, BALL (6306) | Use from Engine SN 0113068 This part replaces 91001-259-020.
91001-286-003
Unavailable
15
BEARING, BALL (6306) | Use from Engine SN 0100001 to 0104165
91001-286-003
Unavailable
15
BEARING, BALL (6306) | Use from Engine SN 0113068
91001-286-003
Unavailable
16
BEARING, BALL (63062) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0112068
91002-259-010
Unavailable
18
OIL SEAL (326575) (NOT AVAILABLE)
91201-259-000
Unavailable
