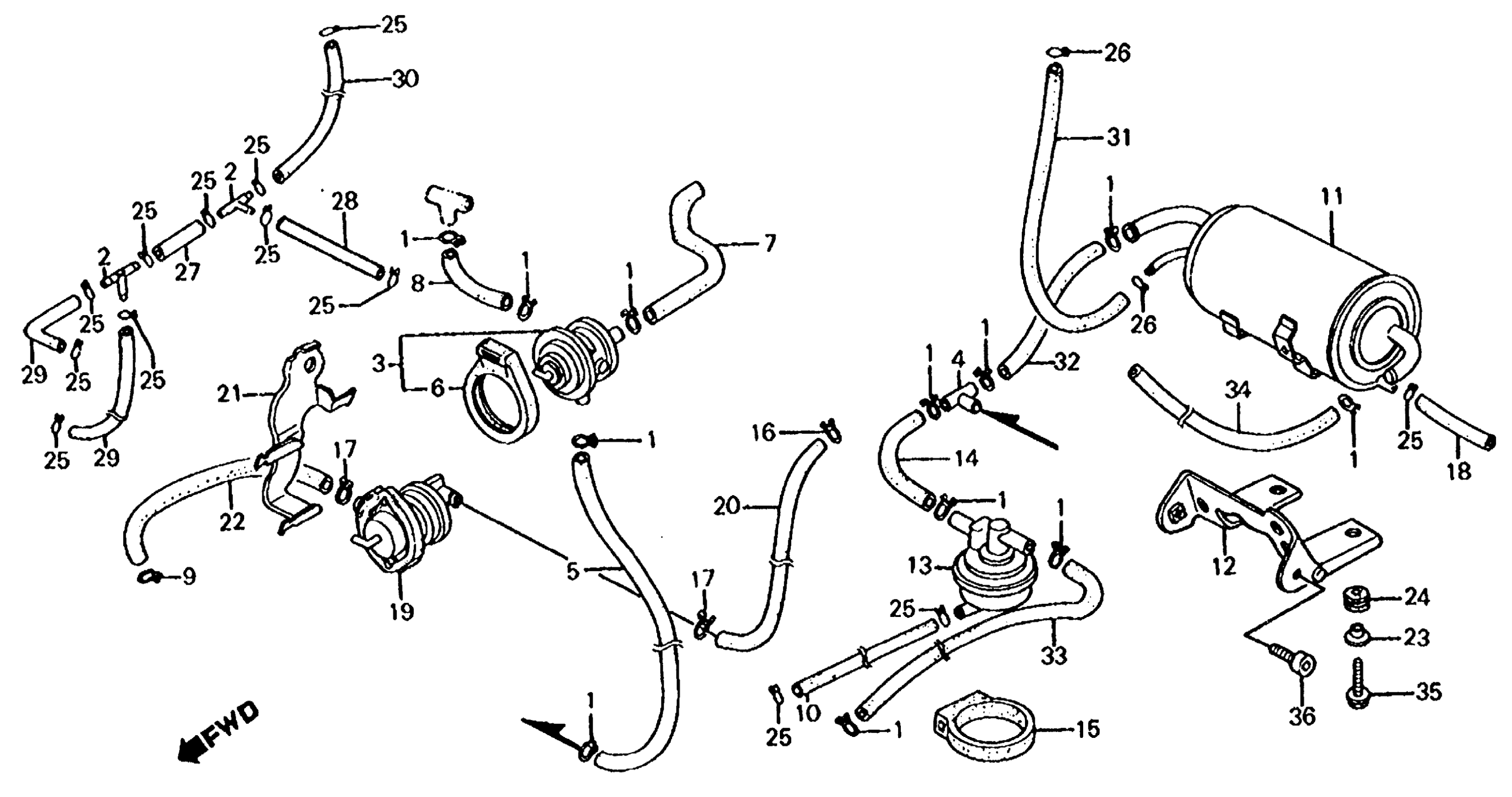

Honda CB700SCAC (86) NIGHTHAWK S, JPN, VIN# JH2RC201-GM200008 TO JH2RC201-GM200598 CANISTER 86 Diagram

#

Description
Price

1

CLIP, OIL DRAIN

15707-634-000

$5.13

2

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

3

VALVE ASSY., AIR VENT CONTROL

17300-MJ1-791

Unavailable

4

JOINT (THREE-WAY)

17303-MJ1-790

Unavailable

5

TUBE B, AIR VENT CONTROL VALVE

17304-MJ1-790

Unavailable

6

RUBBER, SETTING

17305-MJ4-771

$12.46

7

TUBE, AIR VENT CONTROL VALVE

17306-MJ1-790

Unavailable

8

TUBE C, AIR VENT CONTROL VALVE

17307-MJ1-790

Unavailable

9

CLIP, BREATHER TUBE

17316-611-000

$9.23

10

TUBE, PURGE CONTROL VALVE VACUUM

17385-MJ1-790

Unavailable

11

CANISTER

17410-MJ1-791

Unavailable

12

BRACKET, CANISTER

17422-MJ1-870

Unavailable

13

VALVE, PURGE CONTROL

17440-MJ1-790

Unavailable

14

TUBE, PURGE CONTROL VALVE

17442-MJ1-790

Unavailable

15

RUBBER, PURGE CONTROL VALVE SETTING

17451-MG2-880

$13.08

16

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

17

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

18

TUBE, CANISTER DRAIN

18388-MJ1-790

Unavailable

19

VALVE ASSY., AIR INJECTION CONTROL This part replaces 18650-MJ1-791.

18650-MJ1-793

Unavailable

19

VALVE ASSY., AIR INJECTION CONTROL This part replaces 18650-MJ1-792.

18650-MJ1-793

Unavailable

19

VALVE ASSY., AIR INJECTION CONTROL

18650-MJ1-793

Unavailable

20

TUBE A, AIR IN.

18651-MJ1-790

Unavailable

21

BRACKET, AIR IN. CONTROL VALVE

18652-MJ1-790

Unavailable

22

TUBE B, AIR IN.

18656-MJ1-790

Unavailable

23

COLLAR (6.3X13)

50324-425-010

$5.05

24

RUBBER A, BATTERY BOX

50328-425-000

$3.83

25

CLIP, TUBE (B7)

95002-02070

$1.80

26

CLIP, TUBE (B8)

95002-02080

$1.80

27

BULK HOSE, VACUUM (3.5X8000) (3.5X30)

95005-35008-10M

$105.82

28

BULK HOSE, VACUUM (3.5X8000) (3.5X65)

95005-35008-10M

$105.82

29

BULK HOSE, VACUUM (3.5X8000) (3.5X85)

95005-35008-10M

$105.82

30

BULK HOSE, VACUUM (3.5X8000) (3.5X250)

95005-35008-10M

$105.82

31

BULK HOSE, VACUUM (4.5X1000) (4.5X550) (BULK HOSE: 95005-45008-10M)

95005-45001-10M

$23.47

32

BULK HOSE, VACUUM (8X8000) (8X150) (BULK HOSE: 95005-80008-10M)

95005-80008-10M

Unavailable

33

BULK HOSE, VACUUM (8X8000) (8X200) (BULK HOSE: 95005-80008-10M)

95005-80008-10M

Unavailable

34

BULK HOSE, VACUUM (8X8000) (8X630) (BULK HOSE: 95005-80008-10M)

95005-80008-10M

Unavailable

35

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

35

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

36

BOLT, SOCKET (6X12)

96600-06012-07

$1.49

36

BOLT, SOCKET (6X12) This part replaces 96700-06012-07.

96600-06012-07

$1.49
