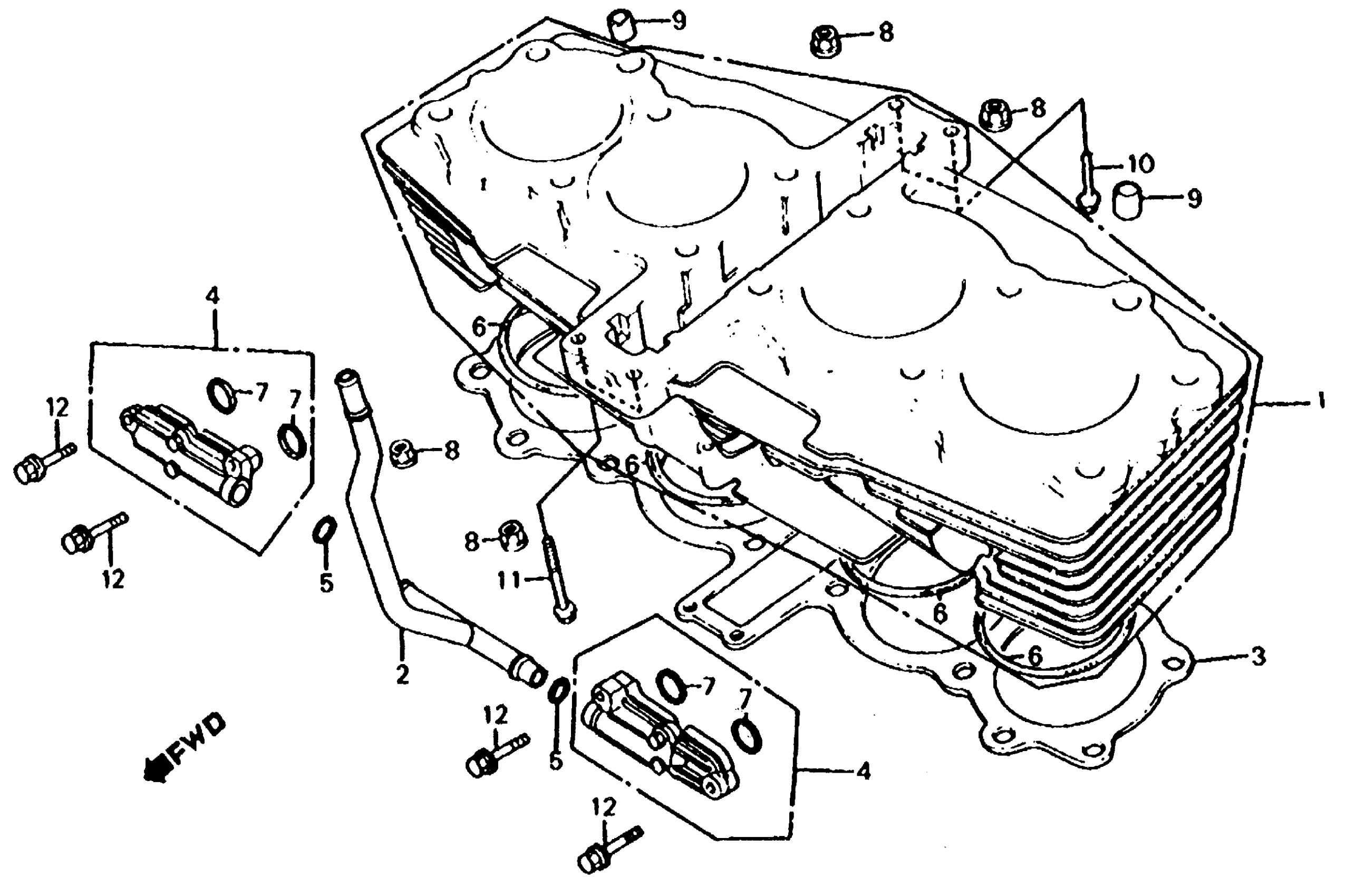

Honda CB700SCAC (86) NIGHTHAWK S, JPN, VIN# JH2RC201-GM200008 TO JH2RC201-GM200598 AC CYLINDER + REED VALVE 86 Diagram

CYLINDER

12100-MJ1-790

Unavailable

PIPE, AIR PASS

12115-MJ1-790

Unavailable

GASKET, CYLINDER This part replaces 12191-MJ0-000.

12191-MW3-602

$27.71

GASKET, CYLINDER This part replaces 12191-MJ1-760.

12191-MW3-602

$27.71

GASKET, CYLINDER This part replaces 12191-MW3-600.

12191-MW3-602

$27.71

VALVE, PULSE SECONDARY AIR INJECTION CHECK

18600-MJ1-790

Unavailable

O-RING (12X3)

91303-350-005

$4.51

O-RING (74X1.9)

91307-MJ0-000

Unavailable

O-RING (14.8X1.9)

91307-PJ4-000

$3.24

O-RING (14.8X1.9) This part replaces 91308-MJ1-792.

91307-PJ4-000

$3.24

NUT, FLANGE (6MM)

94050-06000

$0.59

PIN A, DOWEL (12X20)

94301-12200

$2.25

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.71

BOLT, FLANGE (6X32)

95701-06032-00

$1.71

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.28

BOLT, FLANGE (6X40)

96001-06040-07

$1.28
