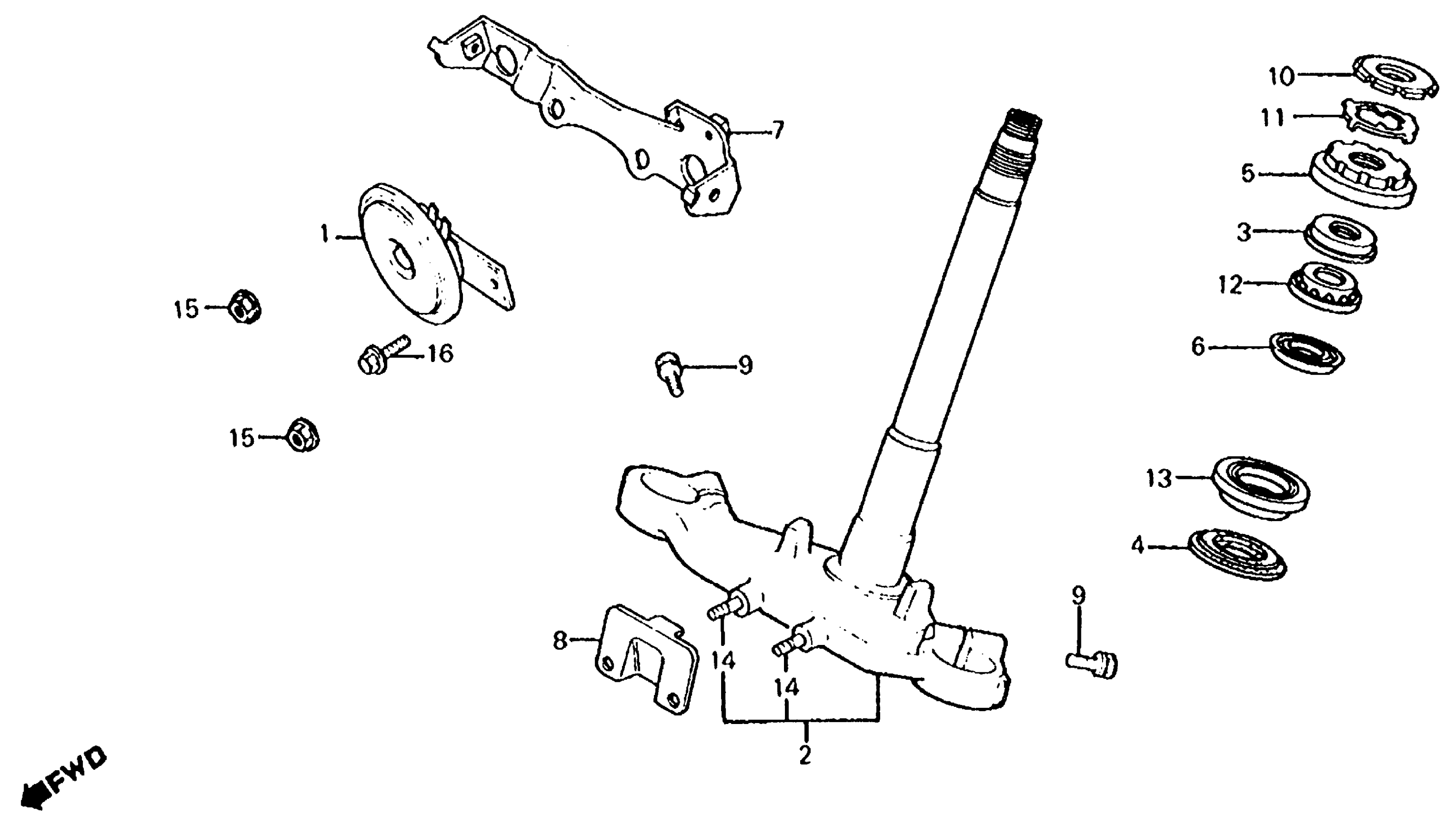

Honda CB700SCA (86) NIGHTHAWK S, JPN, VIN# JH2RC200-GM200004 TO JH2RC200-GM203101 STEERING STEM + HORN Diagram

#

Description
Price

1

HORN This part replaces 38110-MB6-671.

38110-ML8-711

Unavailable

1

HORN This part replaces 38110-MC8-000.

38110-ML8-711

Unavailable

2

STEM, STEERING (NOT AVAILABLE)

53200-MJ1-670

Unavailable

3

DUST SEAL, STEERING HEAD

53213-MB4-771

$12.13

4

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

5

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

5

THREAD, STEERING HEAD TOP This part replaces 53220-460-840.

53220-422-000

$32.73

6

HOLDER, GREASE

53223-371-010

Unavailable

7

STAY, FR. COWL (LOWER)

64108-MJ1-000

Unavailable

8

GUARD, WIRE HARNESS

64115-MJ1-000

Unavailable

9

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

10

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

11

WASHER, LOCK

90506-425-830

$7.05

12

BEARING, HEAD PIPE (UPPER)

91015-KT8-005

$36.57

12

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

13

BEARING, HEAD PIPE (LOWER)

91016-KT8-005

$36.57

13

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

14

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.89

14

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.89

14

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

14

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

14

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

14

BOLT, STUD (6X28)

92900-06028-0B

$1.89

14

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

15

NUT, FLANGE (6MM)

94050-06000

$1.49

16

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

16

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
