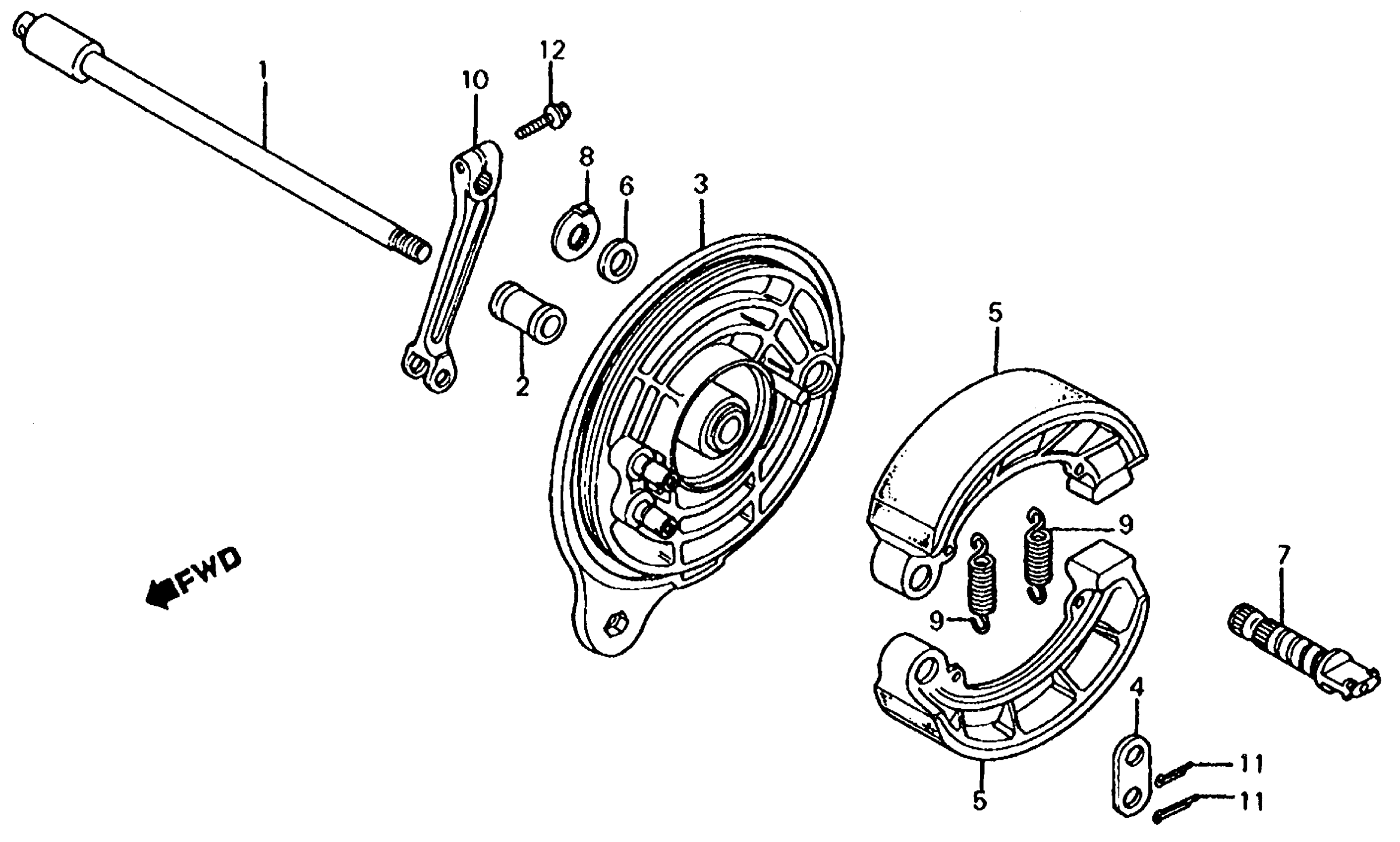

Honda CB700SCA (86) NIGHTHAWK S, JPN, VIN# JH2RC200-GM200004 TO JH2RC200-GM203101 REAR BRAKE PANEL Diagram

SHOE KIT, BRAKE This part replaces 06430-MJ1-006.

06430-MM8-881

$49.53

SHOE KIT, BRAKE

06430-MM8-881

$49.53

SHOE KIT, BRAKE This part replaces 431A2-MJ1-006.

06430-MM8-881

$49.53

AXLE, RR. WHEEL

42301-MJ1-000

Unavailable

COLLAR, RR. WHEEL SIDE

42313-MJ1-000

Unavailable

PANEL, RR. BRAKE

43100-MJ1-010

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$5.77

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$5.77

SHOE KIT, BRAKE

06430-MM8-881

$49.53

SHOE KIT, BRAKE This part replaces 43120-MJ1-006.

06430-MM8-881

$49.53

SHOE KIT, BRAKE This part replaces 43120-MJ1-405.

06430-MM8-881

$49.53

DUST SEAL, BRAKE CAM

43134-300-000

$2.00

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$37.36

CAM, RR. BRAKE

43141-MB0-010

$37.36

INDICATOR, RR. BRAKE

43145-ME5-000

$5.44

SPRING, RR. BRAKE SHOE

43151-346-000

$5.50

ARM, RR. BRAKE

43410-MJ1-000

$51.25

ARM, RR. BRAKE This part replaces 43410-MJ1-780.

43410-MJ1-000

$51.25

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.94

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.94

PIN, COTTER (2.5MM)

94201-25300

$0.94

BOLT, FLANGE (8X25) This part replaces 95700-08025-07.

95701-08025-07

$0.88

BOLT, FLANGE (8X25)

95701-08025-07

$0.88
