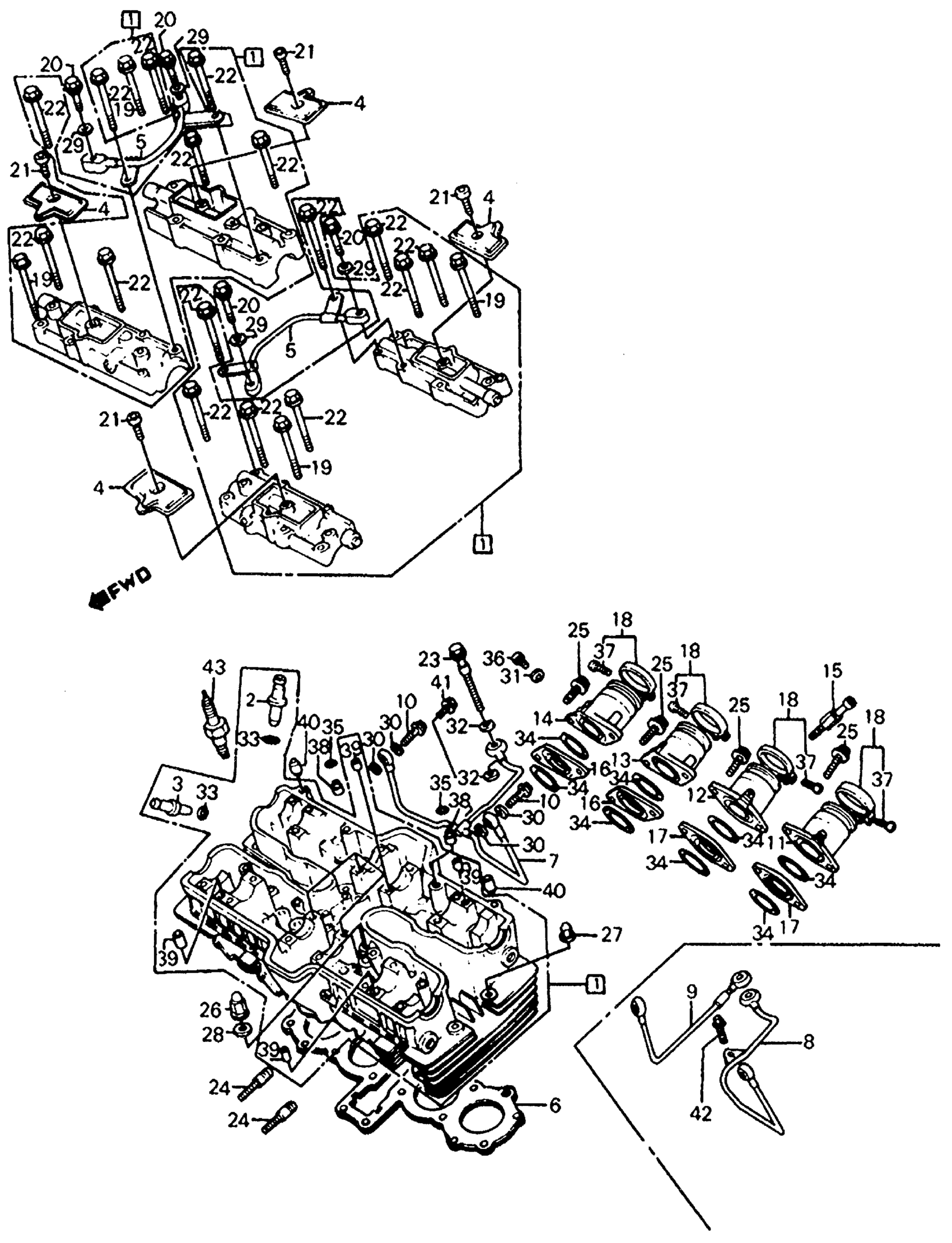

Honda CB700SCA (86) NIGHTHAWK S, JPN, VIN# JH2RC200-GM200004 TO JH2RC200-GM203101 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-MJ0-920

Unavailable

2

GUIDE, VALVE (NOT AVAILABLE)

12205-MJ0-315

$18.19

3

GUIDE, EX. VALVE This part replaces 12206-MJ0-315.

12206-MJ0-325

Unavailable

3

GUIDE, EX. VALVE

12206-MJ0-325

Unavailable

4

PLATE,OIL CHAMBER This part replaces 12221-MJ0-025.

12221-MCN-721

Unavailable

5

PIPE, CAM HOLDER

12230-MCN-640

$29.00

5

PIPE, CAM HOLDER This part replaces 12230-MJ0-000.

12230-MCN-640

$29.00

6

GASKET, CYLINDER HEAD This part replaces 12251-MJ1-760.

12251-MJ1-792

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MJ1-790.

12251-MJ1-792

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MJ1-791.

12251-MJ1-792

Unavailable

8

PIPE B, OIL FEED

15522-MJ1-770

$52.67

9

PIPE C, OIL FEED

15527-MJ1-770

$28.93

10

BOLT B, OIL CONTROL (8X28)

15532-ME5-015

$9.30

11

INSULATOR, CARBURETOR (NO.1) This part replaces 16213-MJ0-000.

16213-MJ0-010

$46.01

11

INSULATOR, CARBURETOR (NO.1)

16213-MJ0-010

$46.01

12

INSULATOR, CARBURETOR This part replaces 16214-MJ0-000.

16214-MJ0-010

$46.01

12

INSULATOR, CARBURETOR

16214-MJ0-010

$46.01

13

INSULATOR, CARBURETOR (NO.3) This part replaces 16215-MJ0-000.

16215-MJ0-010

$46.35

13

INSULATOR, CARBURETOR (NO.3)

16215-MJ0-010

$46.35

14

INSULATOR, CARBURETOR (NO.4) This part replaces 16216-MJ0-000.

16216-MJ0-010

$46.01

14

INSULATOR, CARBURETOR (NO.4)

16216-MJ0-010

$46.01

15

JOINT, PB

16221-MA6-000

$12.02

16

PLATE, R. INSULATOR

16221-MJ0-000

$12.04

17

PLATE, L. INSULATOR

16222-MJ0-000

$9.50

18

BAND, INSULATOR

16223-KS5-000

$12.75

18

BAND, INSULATOR This part replaces 16223-MJ0-000.

16223-KS5-000

$12.75

19

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$3.95

20

BOLT, FLANGE (6X28)

90003-MJ0-000

Unavailable

21

BOLT, SOCKET (6X12)

96600-06012-07

$1.17

21

BOLT, SOCKET (6X12) This part replaces 96700-06012-07.

96600-06012-07

$1.17

22

BOLT, FLANGE (6X48)

90018-425-000

$3.12

23

BOLT, OIL CONTROL

90027-MJ1-770

Unavailable

24

BOLT, STUD (8-7X60)

90035-MJ0-920

$2.39

25

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.45

26

NUT B (9MM)

90232-MJ0-000

$3.71

27

NUT, CAP (9MM)

90233-MJ1-790

Unavailable

28

WASHER, SEALING (9MM)

90413-MJ0-000

$4.58

29

WASHER, SEALING (7MM)

90441-MJ0-000

$4.84

30

WASHER, SEALING (8MM)

90442-MJ0-000

$2.17

31

WASHER, SEALING (5MM)

90452-323-000

$1.52

32

WASHER, OIL BOLT

90545-MJ1-770

$2.80

33

O-RING (10X1.6)

91301-200-000

$2.80

34

O-RING (36.5X2.7)

91305-MJ0-003

$4.65

35

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.42

36

SCREW, PAN (5X8)

93500-05008-0G

$0.83

37

SCREW, PAN (5X25)

93500-05025-0G

$0.68

38

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.04

39

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.04

40

PIN A, DOWEL (10X16)

94301-10160

$2.24

42

BOLT, FLANGE (6X14) This part replaces 95700-06014-07.

95701-06014-07

$1.32

42

BOLT, FLANGE (6X14)

95701-06014-07

$1.32

43

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.00

43

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.25

43

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.00

43

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.25

43

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.00

43

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.25
