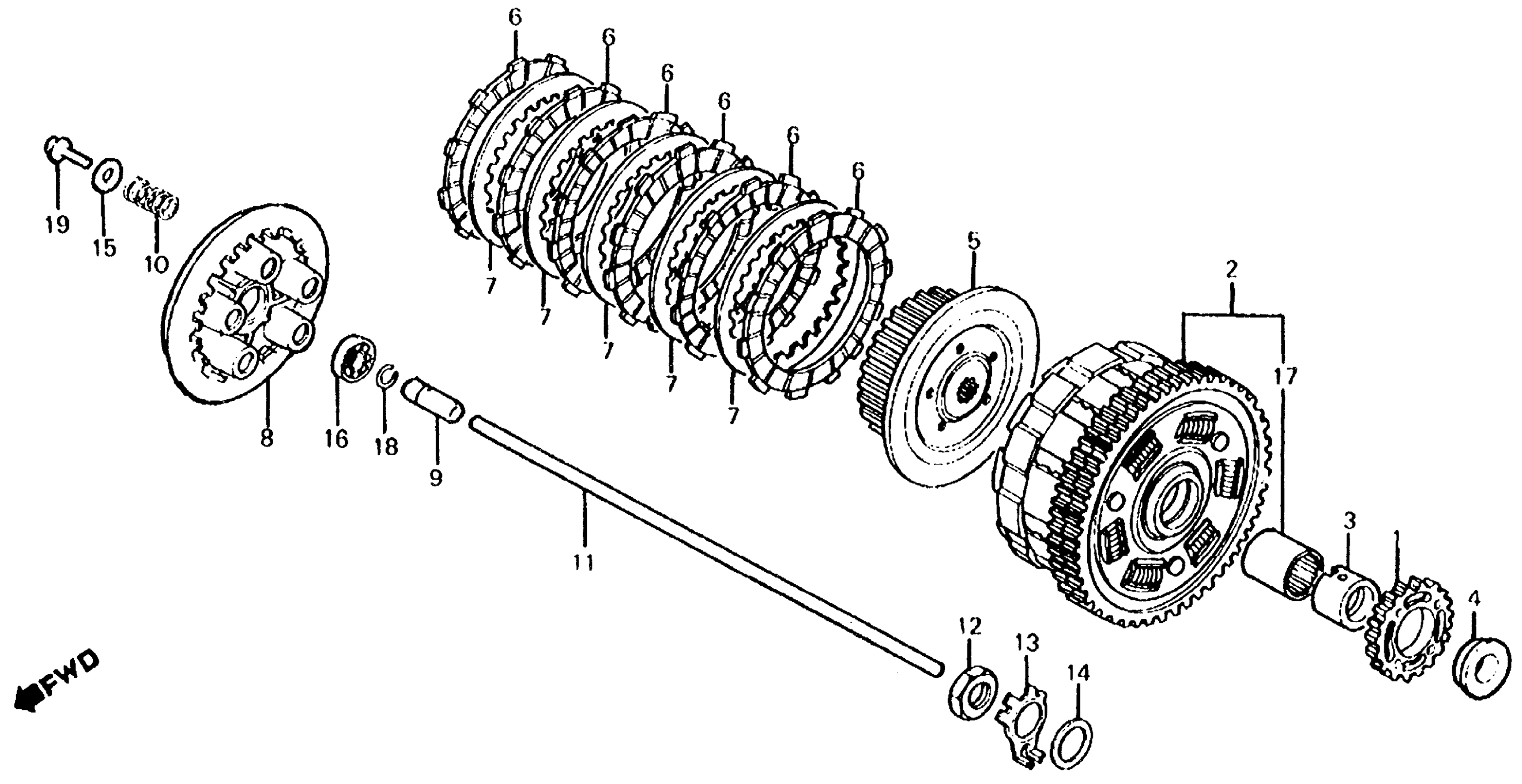

Honda CB700SCA (86) NIGHTHAWK S, JPN, VIN# JH2RC200-GM200004 TO JH2RC200-GM203101 CLUTCH Diagram

#

Description
Price

1

GEAR, OIL PUMP DRIVE (34T)

15131-MJ1-770

Unavailable

2

CLUTCH (OUTER) This part replaces 22100-MJ1-000.

22100-MW3-A91

Unavailable

2

CLUTCH (OUTER) This part replaces 22100-MJ1-760.

22100-MW3-A91

Unavailable

2

CLUTCH (OUTER)

22100-MW3-A91

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MJ0-000

$35.56

4

COLLAR, OIL PUMP DRIVE GEAR

22117-MJ0-000

$21.33

5

CENTER, CLUTCH This part replaces 22120-MB1-770.

22120-MN0-000

Unavailable

5

CENTER, CLUTCH

22120-MN0-000

Unavailable

6

DISK, CLUTCH FRICTION This part replaces 22201-MB0-003.

22201-MM5-000

$28.39

6

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

7

PLATE, CLUTCH

22321-MG8-000

$15.44

7

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

8

PLATE, CLUTCH PRESSURE This part replaces 22350-MB0-003.

22350-MK3-770

Unavailable

8

PLATE, CLUTCH PRESSURE This part replaces 22350-MG7-000.

22350-MK3-770

Unavailable

8

PLATE, CLUTCH PRESSURE

22350-MK3-770

Unavailable

9

PIECE, CLUTCH JOINT

22366-MJ0-920

Unavailable

10

SPRING, CLUTCH

22401-MB0-000

$5.40

11

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-ME9-000

Unavailable

12

NUT, LOCK (22MM)

90201-MB0-770

Unavailable

13

WASHER, LOCK (22MM) This part replaces 90431-MJ1-670.

90431-MK3-771

Unavailable

13

WASHER, LOCK (22MM)

90431-MK3-771

Unavailable

14

WASHER, THRUST (22MM) (C)

90458-425-000

Unavailable

15

WASHER (6X19)

90481-259-000

Unavailable

16

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

17

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

18

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

19

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

19

BOLT, FLANGE (6X20) This part replaces 95718-06020-08.

95701-06020-08

$1.49
