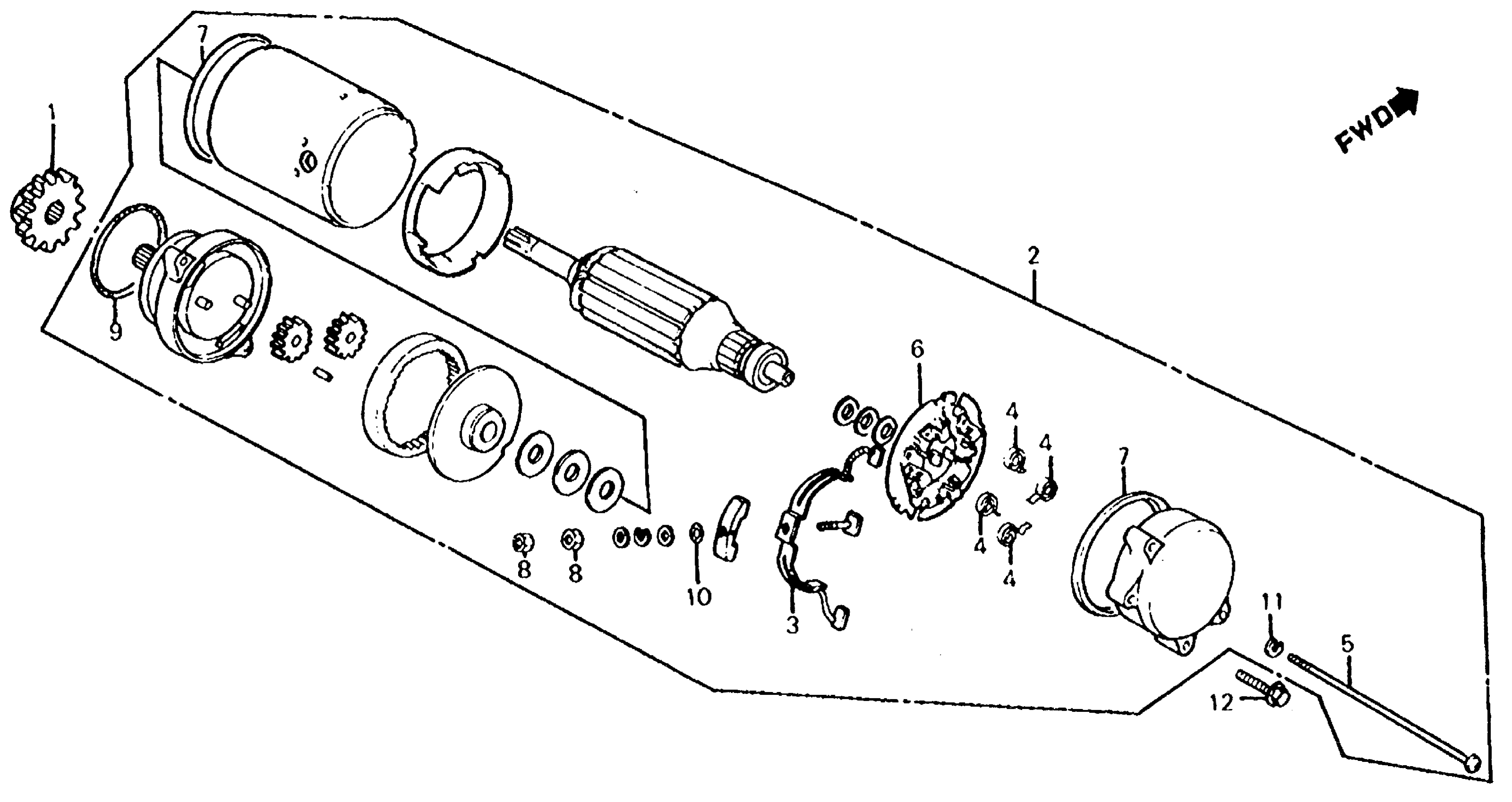

Honda CB700SCA (85) NIGHTHAWK S, JPN, VIN# JH2RC200-FM100001 TO JH2RC200-FM105990 STARTER MOTOR Diagram

GEAR, STARTER REDUCTION

28101-MJ0-000

Unavailable

MOTOR ASSY., STARTER This part replaces 31200-MJ1-006.

31200-MJ1-016

Unavailable

MOTOR ASSY., STARTER

31200-MJ1-016

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31201-MA6-000.

31201-KG7-000

$31.18

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

BOLT, SETTING This part replaces 31205-MJ0-000.

31205-MA6-000

Unavailable

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

$19.33

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MA6-000.

31206-MM5-008

$19.33

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

RING, SEAL

31207-179-711

$4.22

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING

91309-MJ1-000

$4.01

O-RING

91320-MB0-000

$2.43

WASHER, SPRING (6MM)

94111-06700

$1.49

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
