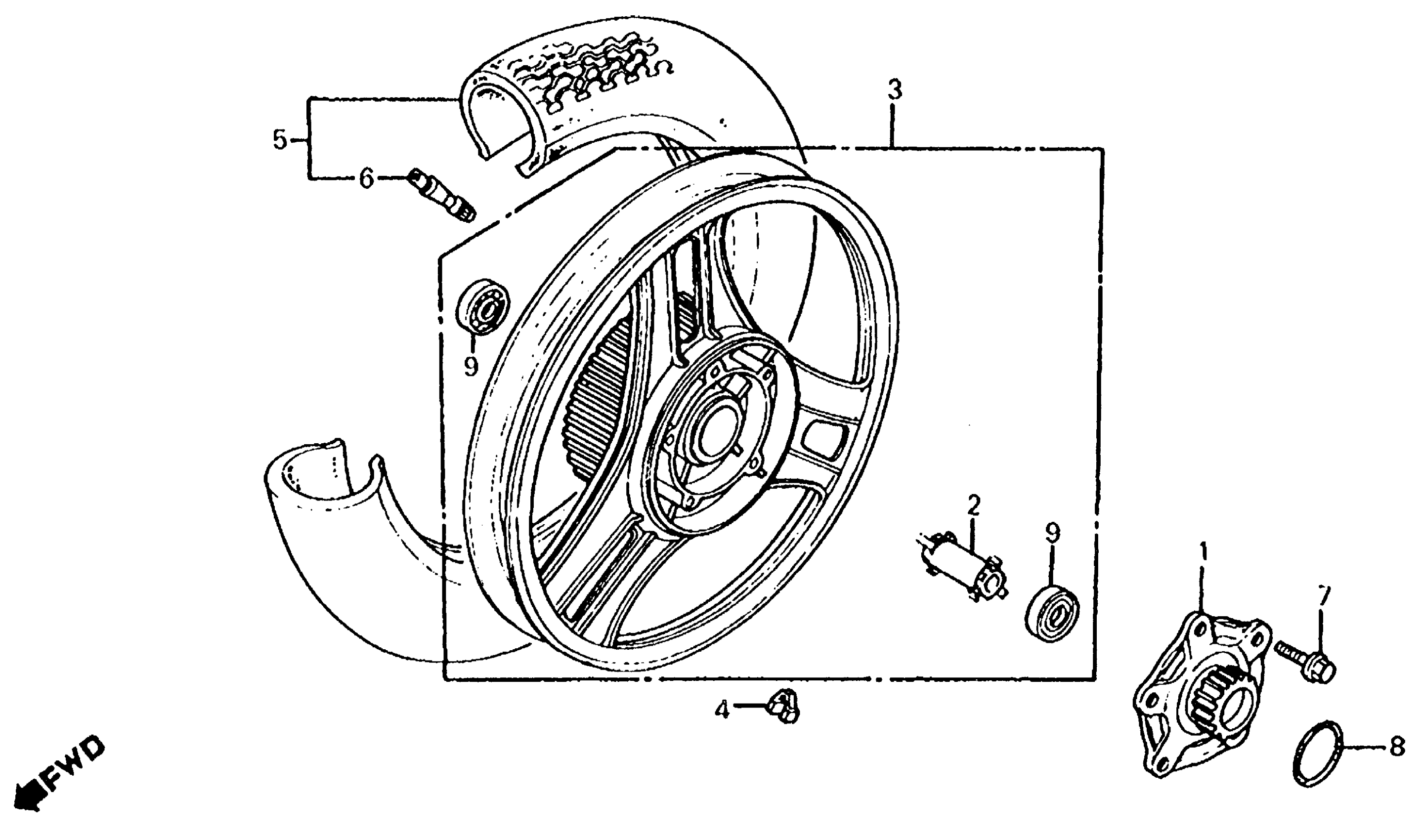

Honda CB700SCA (85) NIGHTHAWK S, JPN, VIN# JH2RC200-FM100001 TO JH2RC200-FM105990 REAR WHEEL Diagram

#

Description

Price

1

FLANGE, FINAL DRIVEN

42615-MB0-700

Unavailable

2

COLLAR, RR. AXLE DISTANCE

42620-MJ1-000

Unavailable

3

WHEEL SET, RR.

42650-MJ1-670

Unavailable

4

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

4

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

4

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

4

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

5

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME2-671.

42710-ME2-672

Unavailable

5

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP)

42710-ME2-672

Unavailable

6

VALVE, RIM (BS)

42753-425-003

$11.00

6

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

7

BOLT, UBS (10X34) (NOT AVAILABLE)

90130-MC7-000

Unavailable

8

O-RING (46.5X3.5)

91358-MB0-000

$3.76

9

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84
