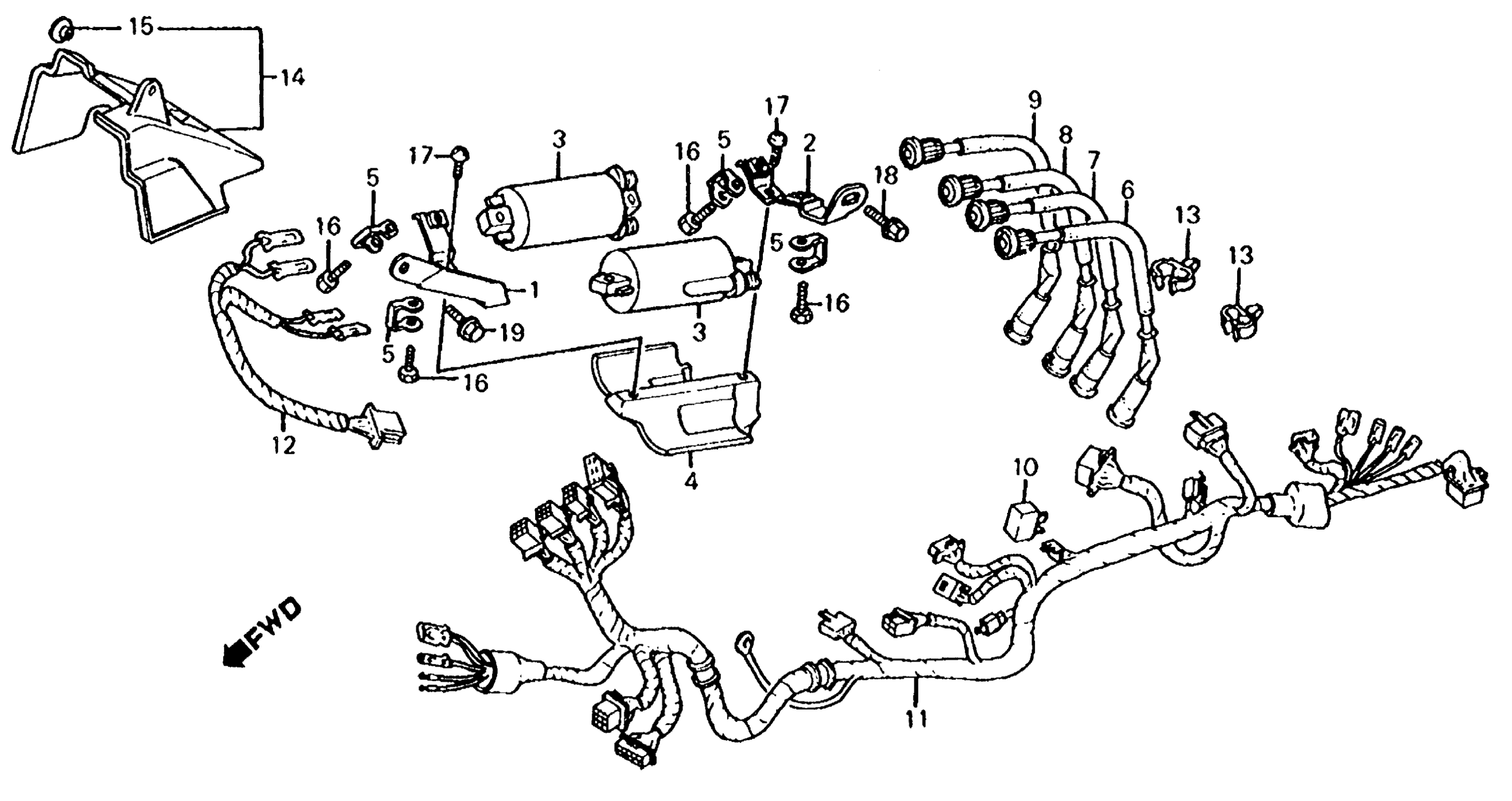

Honda CB700SCA (84) NIGHTHAWK S, JPN, VIN# JH2RC200-EM000011 TO JH2RC200-EM011128 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

BRACKET, FR. IGNITION COIL

30505-MJ1-000

Unavailable

2

BRACKET, RR. IGNITION COIL

30506-MJ1-000

Unavailable

3

COIL, IGNITION This part replaces 30506-MA6-003.

30510-MA6-013

$168.34

3

COIL, IGNITION This part replaces 30510-MA6-003.

30510-MA6-013

$168.34

3

COIL, IGNITION

30510-MA6-013

$168.34

4

COVER, IGNITION COIL

30515-MJ1-000

Unavailable

5

SPACER, IGNITION COIL

30520-MB0-000

Unavailable

6

CAP ASSY., SPARK PLUG (1-1)

30751-MJ1-670

Unavailable

7

CAP, IGNITION (2-1) This part replaces 30752-MJ1-670.

30752-MJ0-940

Unavailable

8

CAP ASSY., SPARK PLUG (3-2)

30753-MJ1-670

Unavailable

9

CAP ASSY., SPARK PLUG (4-3)

30754-MJ1-670

Unavailable

10

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

10

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

11

WIRE HARNESS (NOT AVAILABLE) This part replaces 32100-MJ1-670.

32100-MJ1-671

Unavailable

11

WIRE HARNESS (NOT AVAILABLE)

32100-MJ1-671

Unavailable

12

SUB-WIRE, IGNITION COIL

32107-MJ1-670

Unavailable

13

CLAMP, SPARK PLUG WIRE

32127-MJ1-670

$2.55

14

GUIDE, AIR This part replaces 50750-MJ1-000.

50750-MJ1-780

Unavailable

14

GUIDE, AIR

50750-MJ1-780

Unavailable

15

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

16

BOLT, HEX. (6X20) This part replaces 92000-06020-4J.

92101-06020-4J

$1.49

16

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

17

SCREW, TAPPING (5X12)

93901-25210

$1.49

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

19

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

19

BOLT, FLANGE (6X22)

95701-06022-07

$1.49
