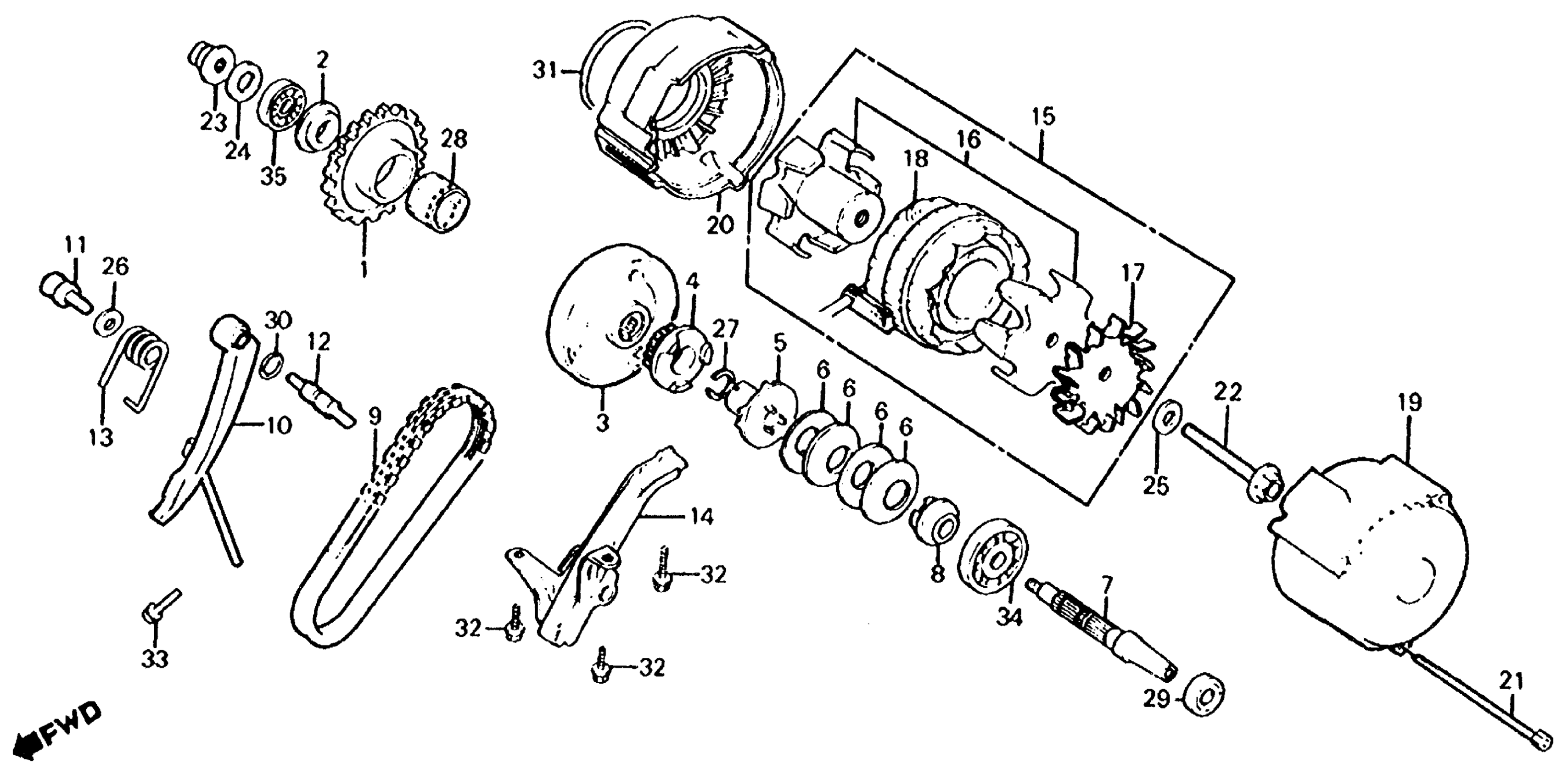

Honda CB700SCA (84) NIGHTHAWK S, JPN, VIN# JH2RC200-EM000011 TO JH2RC200-EM011128 STARTER CLUTCH + ALTERNATOR Diagram

#

Description
Price

1

GEAR, STARTING CLUTCH

28111-MJ0-000

Unavailable

2

PLATE, STARTING CLUTCH GEAR GUIDE

28116-MJ0-000

Unavailable

3

CLUTCH, STARTER (OUTER)

28120-MJ1-010

Unavailable

4

SPROCKET, ALTERNATOR DRIVEN

28131-MJ0-000

Unavailable

5

CAM, ALTERNATOR DRIVEN DAMPER

28132-MJ0-000

$70.43

6

SPRING, ALTERNATOR DAMPER

28133-MJ0-000

$7.59

7

SHAFT, ALTERNATOR This part replaces 28151-MJ0-300.

28151-MJ0-310

Unavailable

7

SHAFT, ALTERNATOR

28151-MJ0-310

Unavailable

8

COLLAR (20MM)

28154-MJ0-300

Unavailable

9

CHAIN, ALTERNATOR DRIVE

28161-MJ0-005

Unavailable

10

TENSIONER, ALTERNATOR CHAIN This part replaces 28170-MJ1-000.

28170-MJ1-770

Unavailable

10

TENSIONER, ALTERNATOR CHAIN

28170-MJ1-770

Unavailable

11

PIN, ALTERNATOR TENSIONER SPRING

28177-MJ0-000

Unavailable

12

SHAFT, ALTERNATOR CHAIN SLIPPER

28178-MJ1-000

Unavailable

13

SPRING, ALTERNATOR TENSIONER

28181-MJ1-000

Unavailable

14

GUIDE, ALTERNATOR CHAIN

28190-MJ1-000

Unavailable

15

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-MJ1-671

Unavailable

16

FLYWHEEL

31110-MJ1-671

Unavailable

17

FAN, ALTERNATOR

31115-MJ1-671

Unavailable

18

STATOR (NOT AVAILABLE)

31120-MJ1-671

Unavailable

19

COVER, ALTERNATOR

31130-MJ1-000

Unavailable

20

CASE, ALTERNATOR

31133-MJ1-000

Unavailable

21

BOLT, SOCKET (6X115)

90015-MJ0-000

$10.82

22

BOLT, FLANGE (10X62)

90023-ME5-000

Unavailable

23

NUT, FLANGE (10MM)

90234-MJ0-000

$3.87

24

WASHER (10X22) This part replaces 90408-MJ0-000.

90408-MJ0-010

Unavailable

24

WASHER (10X22)

90408-MJ0-010

Unavailable

25

WASHER (10X24)

90414-GE0-000

$2.89

26

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

27

CIRCLIP (20MM)

90601-MJ0-000

$2.38

28

BEARING, NEEDLE (25X30X20) (TOYO)

91106-ME5-008

$30.34

29

OIL SEAL (26X42X8) (NOK)

91203-MJ0-005

$11.46

30

O-RING (6.5X2.2) (ARAI)

91303-MJ0-003

$4.06

31

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

31

O-RING (54X2.4) (ARAI) This part replaces 91306-MJ0-005.

91302-KF0-003

$3.47

32

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

32

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

32

BOLT, FLANGE (6X14) This part replaces 95800-06014-08.

95701-06014-08

$1.55

32

BOLT, FLANGE (6X14) This part replaces 95900-06014-08.

95701-06014-08

$1.55

33

BOLT, FLANGE (6X18) This part replaces 96000-06018-07.

96001-06018-07

$1.49

33

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

34

BEARING, RADIAL BALL (6204)

96100-62043-00

$13.11

35

BEARING, RADIAL BALL (6203)

96120-62030-00

$17.70
