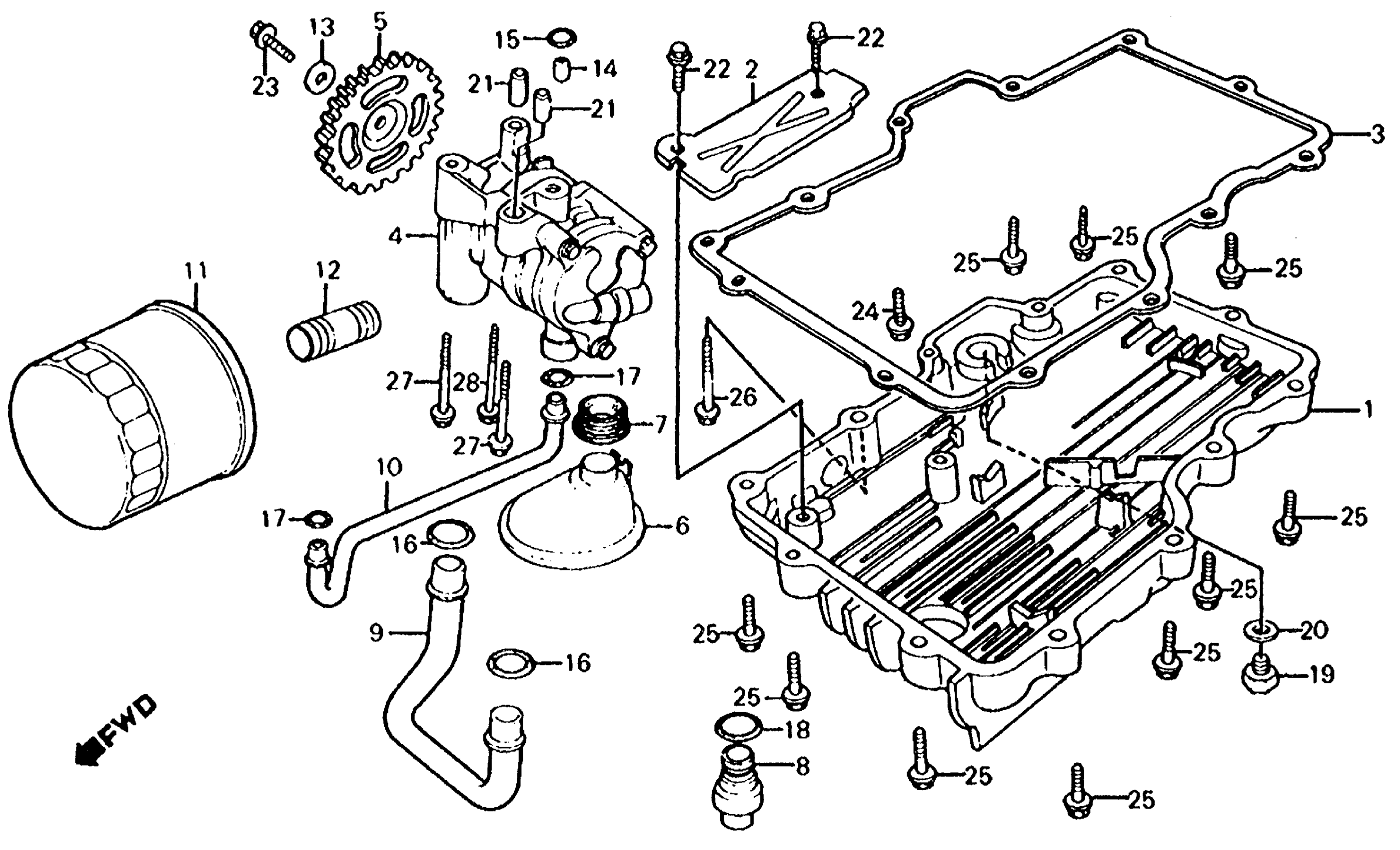

Honda CB700SCA (84) NIGHTHAWK S, JPN, VIN# JH2RC200-EM000011 TO JH2RC200-EM011128 OIL PUMP + OIL PAN + OIL FILTER Diagram

#

Description
Price

1

PAN, OIL This part replaces 11210-MJ0-000.

11210-MJ0-010

Unavailable

1

PAN, OIL

11210-MJ0-010

Unavailable

2

PLATE, BAFFLE

11211-MJ0-000

Unavailable

3

GASKET, OIL PAN This part replaces 11398-MJ0-000.

11398-MW3-602

$12.74

3

GASKET, OIL PAN This part replaces 11398-MJ0-010.

11398-MW3-602

$12.74

3

GASKET, OIL PAN This part replaces 11398-MW3-600.

11398-MW3-602

$12.74

4

PUMP ASSY., OIL

15100-MJ1-000

Unavailable

5

GEAR, OIL PUMP DRIVEN (38T)

15151-MJ0-000

$62.95

6

STRAINER, OIL (NOT AVAILABLE) This part replaces 15153-MJ0-000.

15153-MJ0-020

Unavailable

6

STRAINER, OIL (NOT AVAILABLE)

15153-MJ0-020

Unavailable

7

GASKET, OIL STRAINER

15154-MJ0-000

$7.89

8

VALVE ASSY., RELIEF

15220-MJ0-000

$42.33

9

PIPE, OIL PASSAGE This part replaces 15311-MJ0-000.

15311-MJ0-010

$21.13

9

PIPE, OIL PASSAGE

15311-MJ0-010

$21.13

10

PIPE B, OIL PASSAGE

15312-MJ0-000

$28.79

11

FILTER, OIL This part replaces 15410-MJ0-003.

15410-MJ0-405

$13.44

11

FILTER, OIL This part replaces 15410-MJ0-004.

15410-MJ0-405

$13.44

11

FILTER, OIL

15410-MJ0-405

$13.44

12

BOSS, OIL FILTER

90019-MB0-000

$8.61

13

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

14

PIN, O-RING GUIDE This part replaces 90721-MJ0-000.

90721-MJ0-010

$3.97

15

O-RING (7.8X1.9) (ARAI)

91301-MJ0-003

$2.28

16

O-RING (14.6X3.6) (NOK)

91308-MA6-005

$4.19

17

O-RING (9.8X2.7) (NOK) This part replaces 91309-MJ0-003.

91309-MJ0-005

$4.06

17

O-RING (9.8X2.7) (NOK)

91309-MJ0-005

$4.06

18

O-RING (14.8X2.4) (NOK) This part replaces 91356-MA6-003.

91356-MA6-005

$1.78

18

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

19

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

20

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

21

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

22

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

23

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

23

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

24

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

24

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

25

BOLT, FLANGE (6X28) This part replaces 95700-06028-07.

95701-06028-07

$1.49

25

BOLT, FLANGE (6X28)

95701-06028-07

$1.49

26

BOLT, FLANGE (6X40) This part replaces 95700-06040-07.

95701-06040-07

$1.80

26

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

27

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

27

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

28

BOLT, FLANGE (6X60)

95701-06060-08

$2.06
