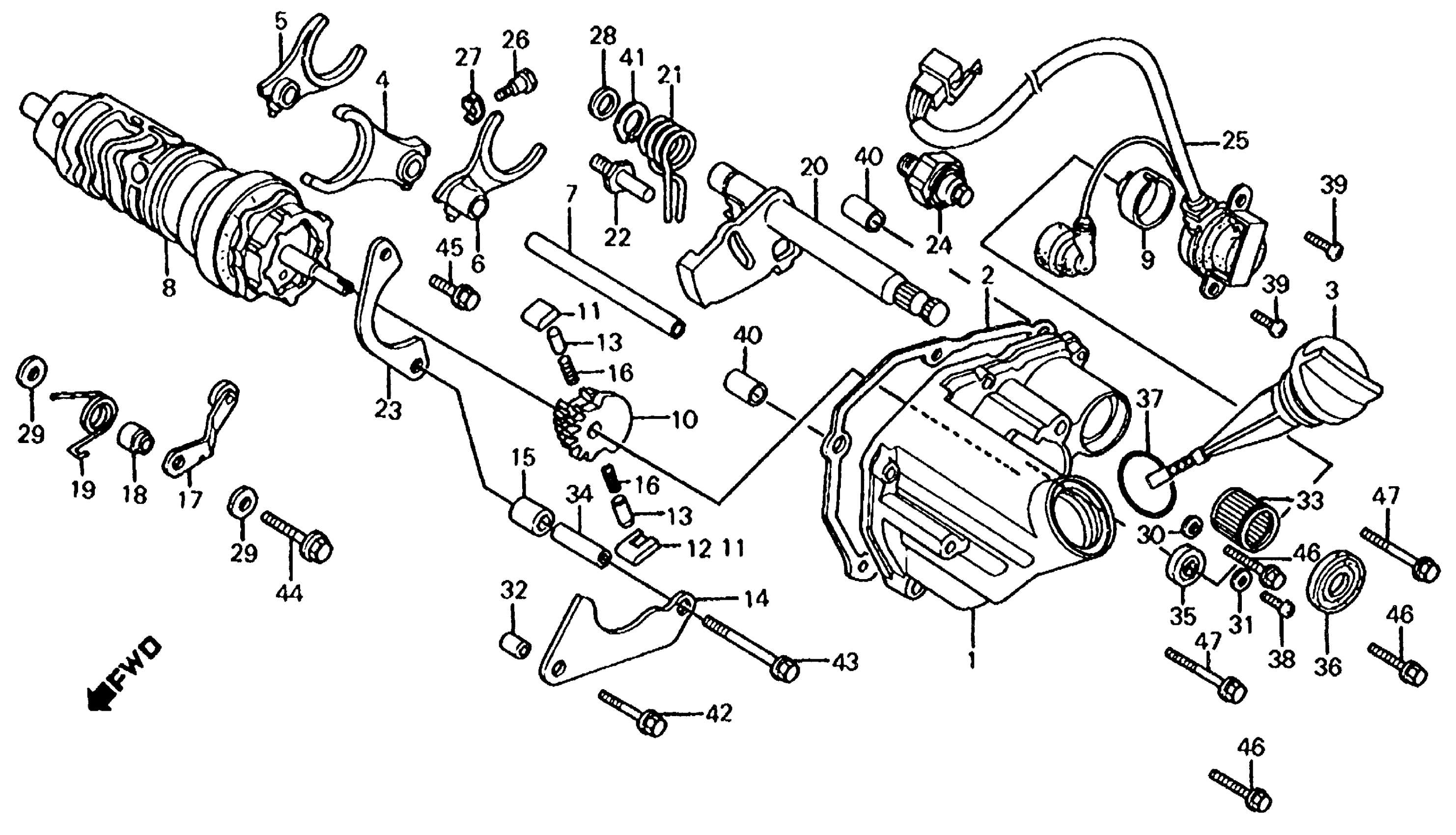

Honda CB700SCA (84) NIGHTHAWK S, JPN, VIN# JH2RC200-EM000011 TO JH2RC200-EM011128 GEARSHIFT DRUM + GEARSHIFT FORK Diagram

#

Description
Price

1

COVER, CHANGE This part replaces 11351-MJ0-000.

11351-MJ0-010

Unavailable

1

COVER, CHANGE

11351-MJ0-010

Unavailable

2

GASKET, CHANGE COVER This part replaces 11394-MJ0-000.

11394-MW3-602

$6.05

2

GASKET, CHANGE COVER This part replaces 11394-MJ0-306.

11394-MW3-602

$6.05

2

GASKET, CHANGE COVER This part replaces 11394-MW3-600.

11394-MW3-602

$6.05

3

DIPSTICK, OIL This part replaces 15650-MJ0-000.

15650-MN8-000

Unavailable

3

DIPSTICK, OIL

15650-MN8-000

Unavailable

4

FORK, MAIN GEARSHIFT

24211-MJ0-000

$118.26

5

FORK, R. GEARSHIFT

24221-MJ0-000

$118.26

6

FORK,L.GEARSHIFT This part replaces 24225-MJ1-000.

24225-MJ1-660

Unavailable

6

FORK,L.GEARSHIFT This part replaces 24225-MJ1-010.

24225-MJ1-660

Unavailable

6

FORK,L.GEARSHIFT This part replaces 24225-MJ1-305.

24225-MJ1-660

Unavailable

7

SHAFT, GEARSHIFT FORK

24231-MJ0-000

Unavailable

8

DRUM, GEARSHIFT

24310-MJ0-000

Unavailable

9

PIECE, POSITION SWITCH DRIVE

24314-MJ0-000

$6.15

10

SHIFTER, DRUM This part replaces 24321-MJ0-000.

24321-MJ0-010

Unavailable

10

SHIFTER, DRUM

24321-MJ0-010

Unavailable

11

PAWL A, RATCHET This part replaces 24324-KA3-710.

24324-KA3-711

$13.21

11

PAWL A, RATCHET

24324-KA3-711

$13.21

12

PAWL B, RATCHET This part replaces 24325-KA3-710.

24325-KA3-711

$13.21

12

PAWL B, RATCHET

24325-KA3-711

$13.21

13

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

13

PLUNGER, PAWL

24326-360-010

$5.19

14

PLATE, GUIDE

24328-MJ0-000

$19.03

15

COLLAR, GUIDE PLATE DISTANCE

24329-KG4-000

$6.84

16

SPRING, PAWL PLUNGER

24329-360-000

$2.90

17

STOPPER, GEARSHIFT DRUM

24430-MJ0-000

$26.11

18

COLLAR, GEARSHIFT DRUM STOPPER

24432-413-000

$7.99

19

SPRING, SHIFT DRUM STOPPER

24435-MJ0-000

Unavailable

20

SPINDLE, GEARSHIFT This part replaces 24610-MJ0-000.

24610-MJ0-305

Unavailable

20

SPINDLE, GEARSHIFT This part replaces 24610-MJ0-010.

24610-MJ0-305

Unavailable

21

SPRING, SHIFT RETURN

24651-KA3-710

Unavailable

22

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

23

PLATE, SHIFT DRUM BEARING SETTING

24655-MJ0-000

$16.36

24

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

24

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

24

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

24

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

25

SWITCH ASSY., CHANGE This part replaces 35759-MJ1-003.

35759-MJ1-023

Unavailable

25

SWITCH ASSY., CHANGE This part replaces 35759-MJ1-013.

35759-MJ1-023

Unavailable

25

SWITCH ASSY., CHANGE

35759-MJ1-023

Unavailable

26

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

27

WASHER, LOCK

90407-MB0-000

$2.66

28

WASHER (14.2MM)

90451-115-000

$2.92

29

WASHER, SHIFT DRUM STOPPER

90453-292-010

$5.03

30

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

31

WASHER, SPECIAL

90544-GF4-003

$2.56

32

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

32

PIN, GEARSHIFT FORK GUIDE This part replaces 90702-MJ0-000.

24261-283-000

$4.21

33

BEARING, NEEDLE

91101-121-691

$27.17

34

PIN, DOWEL (8X29.5)

91104-KG4-000

$5.25

35

OIL SEAL (6X16X5) This part replaces 91205-MJ0-003.

91205-MJ0-005

$4.80

35

OIL SEAL (6X16X5)

91205-MJ0-005

$4.80

36

OIL SEAL (14X28X7) This part replaces 91206-MA6-003.

91206-MA6-005

$5.12

36

OIL SEAL (14X28X7)

91206-MA6-005

$5.12

37

O-RING (22X3.0)

91307-425-003

$2.59

38

SCREW, PAN (4X8)

93500-04008-0A

$1.49

39

SCREW, PAN (6X14)

93500-06014-0H

$1.49

40

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

41

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

42

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

42

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

43

BOLT, FLANGE (6X45) This part replaces 95700-06045-08.

95701-06045-08

$2.06

43

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

44

BOLT, FLANGE (6X25) This part replaces 95800-06025-09.

95801-06025-00

$1.49

44

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

45

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

45

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

46

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

46

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

47

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

47

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
