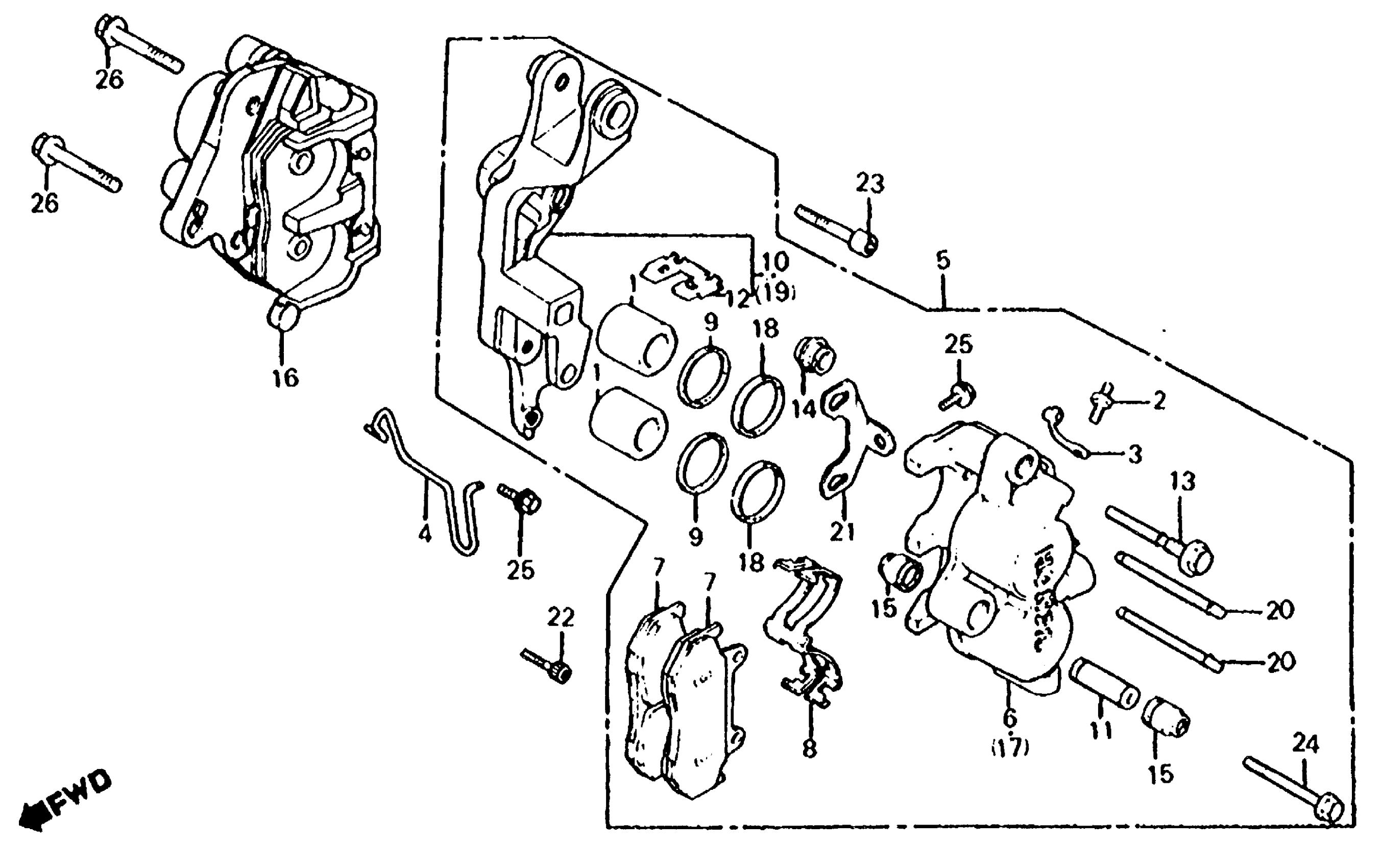

Honda CB700SCA (84) NIGHTHAWK S, JPN, VIN# JH2RC200-EM000011 TO JH2RC200-EM011128 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, FR.

06455-MJ1-405

Unavailable

NI

PAD SET, FR. This part replaces 451A0-MJ1-670.

06455-MJ1-405

Unavailable

1

PISTON

43107-MA7-006

$45.55

2

SCREW, BLEEDER

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

4

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$9.67

5

CALIPER ASSY., L. FR. This part replaces 45100-MJ1-673.

45100-MJ1-674

Unavailable

5

CALIPER ASSY., L. FR.

45100-MJ1-674

Unavailable

6

CALIPER, L.

45101-MB9-781

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MB1-701.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MB1-702.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MJ1-672.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-MJ1-673

Unavailable

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-MA7-006

$5.31

10

BRACKET, L. FR.

45110-MJ1-672

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

RETAINER, BRACKET

45112-445-631

$8.98

13

PIN, BOLT

45131-MA3-006

$17.59

14

BOOT B

45133-MA3-006

$5.46

15

BOOT, PIN

45133-166-016

$3.85

16

CALIPER ASSY., R. FR. (ASK) (NISSHIN) This part replaces 45200-MB2-007.

45200-MB2-405

Unavailable

16

CALIPER ASSY., R. FR. (ASK) (NISSHIN)

45200-MB2-405

Unavailable

16

CALIPER ASSY., R. FR. (NOT AVAILABLE)

45200-MJ1-672

Unavailable

17

CALIPER, R.

45201-MB4-006

Unavailable

18

SEAL, PISTON

45209-MA7-006

$6.61

19

BRACKET, R. FR. (NOT AVAILABLE)

45210-445-632

Unavailable

20

PIN, HANGER

45215-MA3-006

$12.77

21

PLATE

45217-MA3-006

$4.45

22

BOLT, SOCKET (6X25)

90105-MJ1-000

$6.31

23

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

24

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

25

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

25

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

26

BOLT, FLANGE (10X40) This part replaces 95800-10040-07.

95801-10040-07

$1.79

26

BOLT, FLANGE (10X40)

95801-10040-07

$1.79
