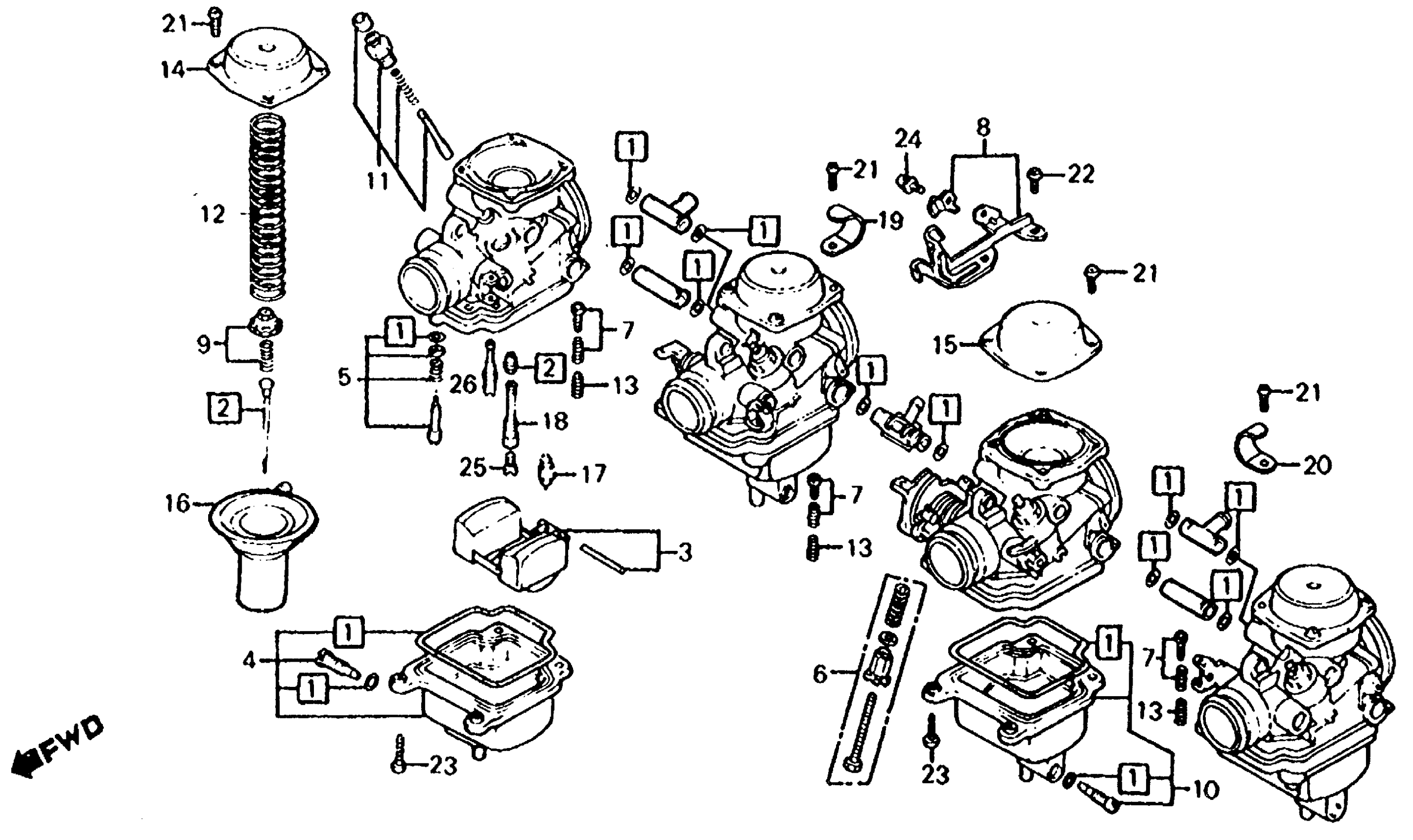

Honda CB700SCA (84) NIGHTHAWK S, JPN, VIN# JH2RC200-EM000011 TO JH2RC200-EM011128 CARBURETOR (COMPONENT PARTS) Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MA6-003.

16010-MA6-305

$53.38

1

GASKET SET This part replaces 16010-MA6-013.

16010-MA6-305

$53.38

1

GASKET SET

16010-MA6-305

$53.38

2

NEEDLE SET, JET

16012-MJ1-671

Unavailable

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$50.73

4

CHAMBER SET, FLOAT This part replaces 16015-MJ1-671.

16015-MW3-A90

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MJ1-672.

16015-MW3-A90

Unavailable

4

CHAMBER SET, FLOAT

16015-MW3-A90

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MW3-R00.

16015-MW3-A90

Unavailable

5

SCREW SET This part replaces 16016-KR3-671.

16016-MY6-770

$19.52

5

SCREW SET This part replaces 16016-ME5-671.

16016-MY6-770

$19.52

6

SCREW SET This part replaces 16028-MJ0-601.

16028-MJ0-602

Unavailable

7

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

8

PLATE SET, STAY

16035-ME5-671

$85.60

9

PLATE SET, VALVE

16037-ME5-671

$27.28

10

CHAMBER SET, FLOAT This part replaces 16045-MJ1-671.

16015-KFG-000

$111.16

10

CHAMBER SET, FLOAT This part replaces 16045-MJ1-672.

16015-KFG-000

$111.16

11

VALVE SET, STARTER This part replaces 16046-ME5-671.

16046-ME5-672

$57.91

12

SPRING

16051-MJ1-671

Unavailable

13

SPRING

16052-MB0-671

$5.96

14

TOP This part replaces 16107-ME5-671.

16108-MJ1-671

$37.19

14

TOP

16108-MJ1-671

$37.19

15

TOP

16108-MJ1-671

$37.19

16

VALVE, THROTTLE

16111-MJ1-671

Unavailable

17

VALVE, FLOAT

16155-413-751

$29.84

18

HOLDER, NEEDLE JET

16165-417-004

$19.62

20

BINDER

16179-MJ1-871

Unavailable

21

SCREW, PAN (4X8)

93500-04008-0A

$0.81

22

SCREW, PAN (4X10)

93500-04010-0A

$0.84

23

SCREW, PAN (4X14)

93500-04014-0A

$0.76

24

SCREW-WASHER (4X12)

93892-04012-00

$0.62

25

JET, MAIN (#115) This part replaces 99101-GHB-1150.

99101-MAZ-1150

$8.08

25

JET, MAIN (#115)

99101-MAZ-1150

$8.08

25

JET, MAIN (#115) This part replaces 99101-393-1150.

99101-MAZ-1150

$8.08

26

JET,SLOW #35 This part replaces 99103-MA1-0350.

99103-MR4-0350

$11.75
