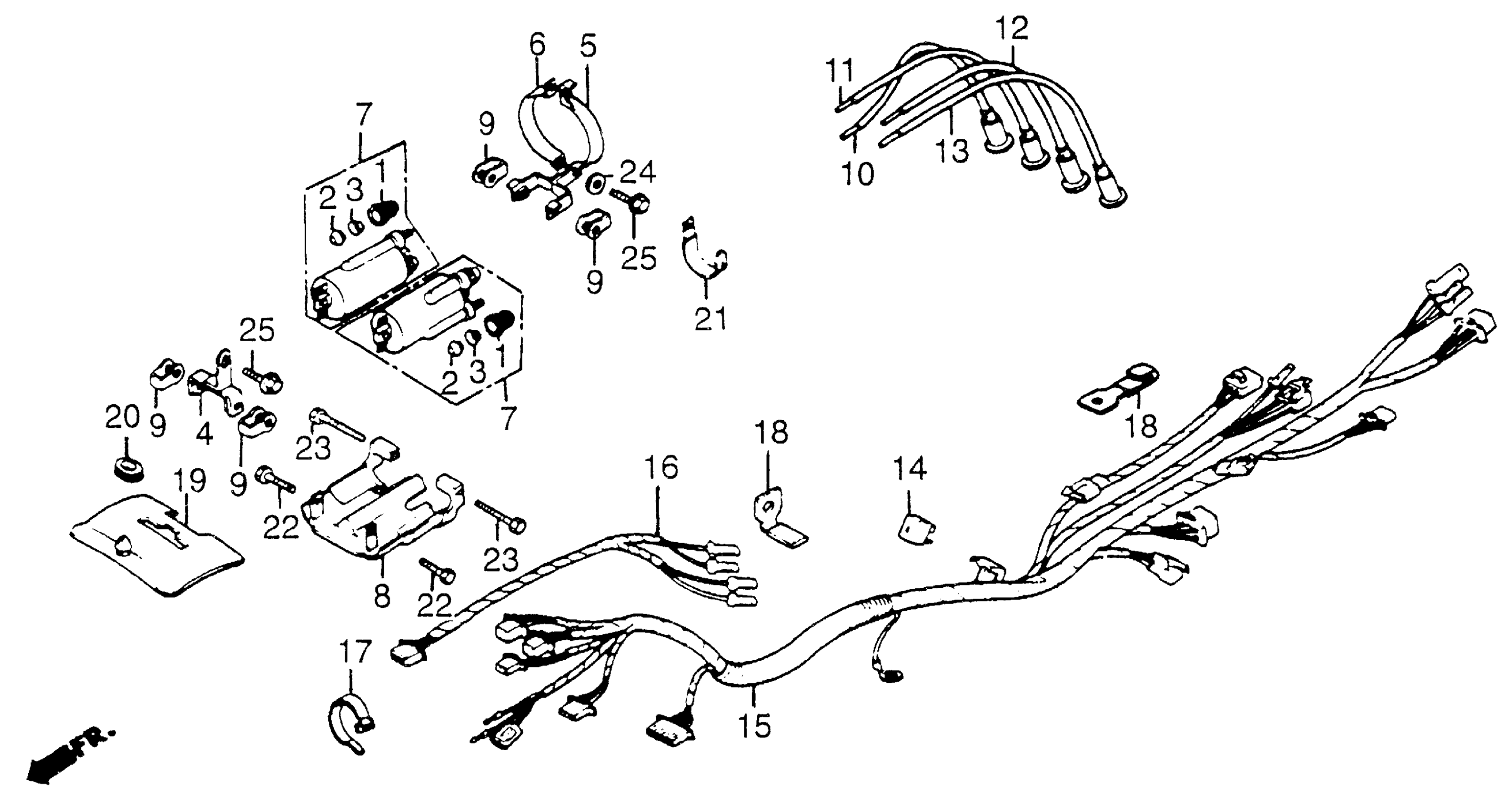

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 WIRE HARNESS + IGNITION COIL + RECTIFIER Diagram

#

Description
Price

1

CAP, SCREW

30501-428-003

Unavailable

2

SEAL, RUBBER

30502-428-003

$1.49

3

WASHER, CAP

30503-428-003

$1.52

4

BRACKET, FR. IGNITION COIL

30505-ME5-000

Unavailable

5

BRACKET, RR. IGNITION COIL

30506-ME5-000

Unavailable

6

BAND, R. IGNITION COIL STAY

30507-ME5-000

Unavailable

7

COIL, IGNITION | Use up to Frame SN FM201508 This part replaces 30506-MA6-003.

30510-MA6-013

$168.34

7

COIL, IGNITION | Use up to Frame SN FM201508 This part replaces 30510-MA6-003.

30510-MA6-013

$168.34

7

COIL, IGNITION

30510-MA6-013

$168.34

7

COIL, IGNITION | Use up to Frame SN FM201508

30510-MA6-013

$168.34

8

COVER, IGNITION COIL

30515-ME5-000

Unavailable

9

SPACER, IGNITION COIL

30520-MB0-000

Unavailable

10

CAP ASSY., SPARK PLUG WIRE (1-1) | Use up to Frame SN FM206439 This part replaces 30751-ME5-000.

30751-ME5-010

Unavailable

10

CAP ASSY., SPARK PLUG WIRE (1-1)

30751-ME5-010

Unavailable

10

CAP ASSY., SPARK PLUG WIRE (1-1) | Use up to Frame SN FM206439

30751-ME5-010

Unavailable

11

CAP ASSY., SPARK PLUG WIRE (2-4) (NOT AVAILABLE) | Use up to Frame SN FM206439 This part replaces 30752-ME5-000.

30752-MJ6-020

Unavailable

11

CAP ASSY., SPARK PLUG WIRE (2-4) (NOT AVAILABLE) This part replaces 30752-ME5-010.

30752-MJ6-020

Unavailable

11

CAP ASSY., SPARK PLUG WIRE (2-4) (NOT AVAILABLE)

30752-MJ6-020

Unavailable

12

CAP ASSY., SPARK PLUG (3-2) | Use up to Frame SN FM206439 This part replaces 30753-ME5-000.

30753-MJ1-670

Unavailable

12

CAP ASSY., SPARK PLUG (3-2) This part replaces 30753-ME5-010.

30753-MJ1-670

Unavailable

12

CAP ASSY., SPARK PLUG (3-2) | Use up to Frame SN FM206439 This part replaces 30753-ME5-010.

30753-MJ1-670

Unavailable

12

CAP ASSY., SPARK PLUG (3-2)

30753-MJ1-670

Unavailable

12

CAP ASSY., SPARK PLUG (3-2) | Use up to Frame SN FM206439

30753-MJ1-670

Unavailable

13

CAP ASSY., SPARK PLUG WIRE (4-3) (NOT AVAILABLE) | Use up to Frame SN FM206439 This part replaces 30754-ME5-000.

30754-ME5-010

Unavailable

13

CAP ASSY., SPARK PLUG WIRE (4-3) (NOT AVAILABLE)

30754-ME5-010

Unavailable

14

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

14

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

15

WIRE HARNESS | Use up to Frame SN FM206439 This part replaces 32100-ME5-000.

32100-ME5-010

Unavailable

15

WIRE HARNESS

32100-ME5-010

Unavailable

15

WIRE HARNESS | Use up to Frame SN FM206439

32100-ME5-010

Unavailable

16

SUB-WIRE HARNESS, IGNITION COIL

32107-ME5-000

Unavailable

17

BAND, CABLE | Use up to Frame SN FM206439

32161-399-000

Unavailable

18

CLIP, WIRE HARNESS | Use up to Frame SN FM206439

32170-ME5-000

Unavailable

18

CLIP, WIRE HARNESS | Use from Frame SN FM206440

32170-ME5-000

Unavailable

21

CLIP, WIRE

91406-ME5-000

Unavailable

22

BOLT, HEX. (6X25) This part replaces 92000-06025-4J.

92101-06025-4J

$1.49

22

BOLT, HEX. (6X25)

92101-06025-4J

$1.49

23

BOLT, HEX. (6X50) This part replaces 92000-06050-4J.

92101-06050-4J

Unavailable

23

BOLT, HEX. (6X50)

92101-06050-4J

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
