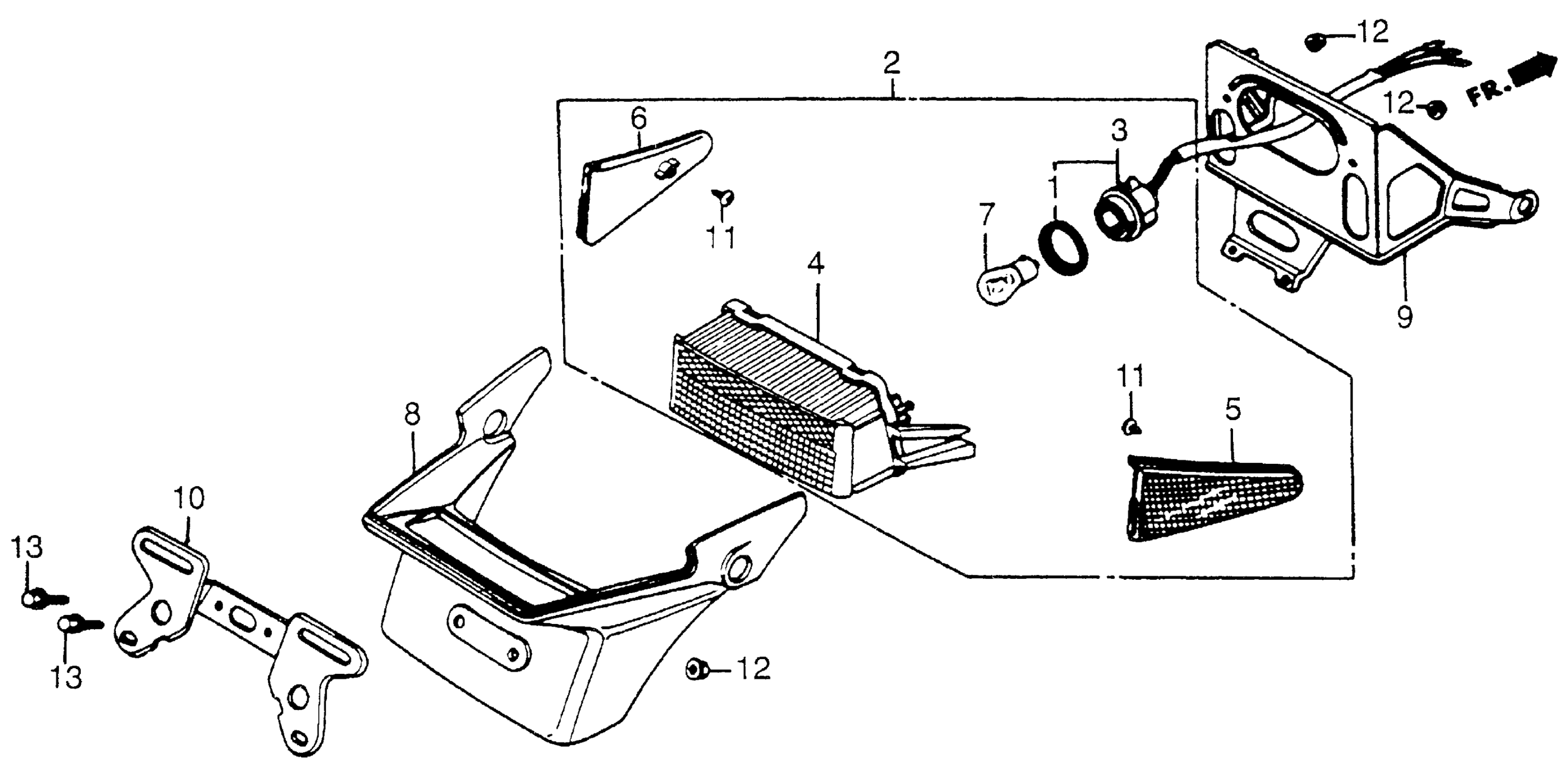

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 TAILLIGHT Diagram

GASKET, SEAL

33518-SA2-003

$5.26

TAILLIGHT UNIT (NOT AVAILABLE)

33701-ME5-671

Unavailable

WIRE, TAILLIGHT (NOT AVAILABLE)

33705-MB0-601

Unavailable

TAILLIGHT SUB-ASSY.

33706-ME5-671

$174.88

REFLECTOR, R. RR. REFLEX

33742-ME5-671

$20.62

REFLECTOR, L. RR. REFLEX

33743-ME5-671

Unavailable

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$3.95

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$3.95

FENDER A, RR.

80103-ME5-000

Unavailable

BRACKET, TAILLIGHT (NOT AVAILABLE)

84700-ME5-000

Unavailable

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-ME5-670

Unavailable

SCREW, TAPPING (5X12)

93903-35280

$0.82

NUT, FLANGE (6MM)

94050-06000

$0.60

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$2.03

BOLT, FLANGE (6X12)

95701-06012-00

$2.03
