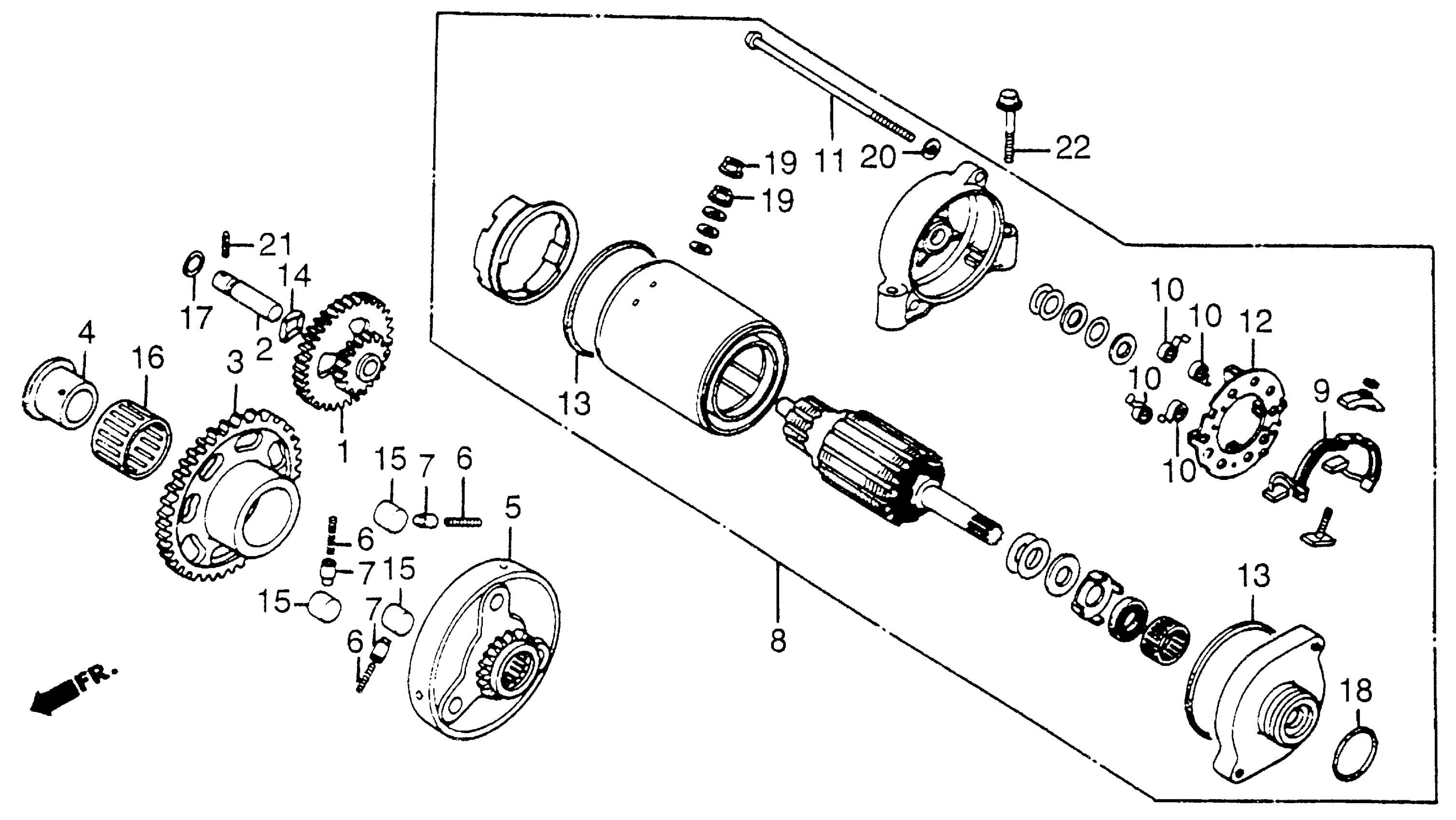

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 STARTER MOTOR + STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER REDUCTION

28101-ME5-000

Unavailable

2

SHAFT, REDUCTION GEAR

28106-ME5-000

Unavailable

3

GEAR, STARTER CLUTCH

28111-ME5-000

Unavailable

4

GUIDE, STARTER CLUTCH GEAR

28115-ME5-000

Unavailable

5

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-ME5-000

Unavailable

6

SPRING, STARTER CLUTCH ROLLER

28125-426-000

$2.61

7

CAP, STARTER CLUTCH ROLLER SPRING

28126-323-000

$5.05

8

STARTER MOTOR ASSY. This part replaces 31200-ME5-000.

31200-ME5-405

Unavailable

9

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

9

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31201-MA6-000.

31201-KG7-000

$31.18

10

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

11

SCREW, PAN (5X115)

31205-MB0-000

Unavailable

12

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

$19.33

12

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MA6-000.

31206-MM5-008

$19.33

12

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

13

RING, SEAL

31207-179-711

$4.22

14

WASHER, WAVE (10MM)

90435-422-000

$3.44

15

ROLLER (10.2X11.5)

91101-377-000

$3.01

16

BEARING, NEEDLE (25X30X20) (TOYO)

91106-ME5-008

$30.34

17

O-RING (6X2.3)

91301-300-000

Unavailable

18

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

18

O-RING (24.4X3.1)

91312-MG7-003

$6.34

19

NUT, HEX. (6MM)

94002-06000-0S

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49

21

PIN, SPRING (4X12)

94305-40122

Unavailable

22

BOLT, FLANGE (6X35) This part replaces 95700-06035-07.

95701-06035-07

$1.80

22

BOLT, FLANGE (6X35)

95701-06035-07

$1.80
