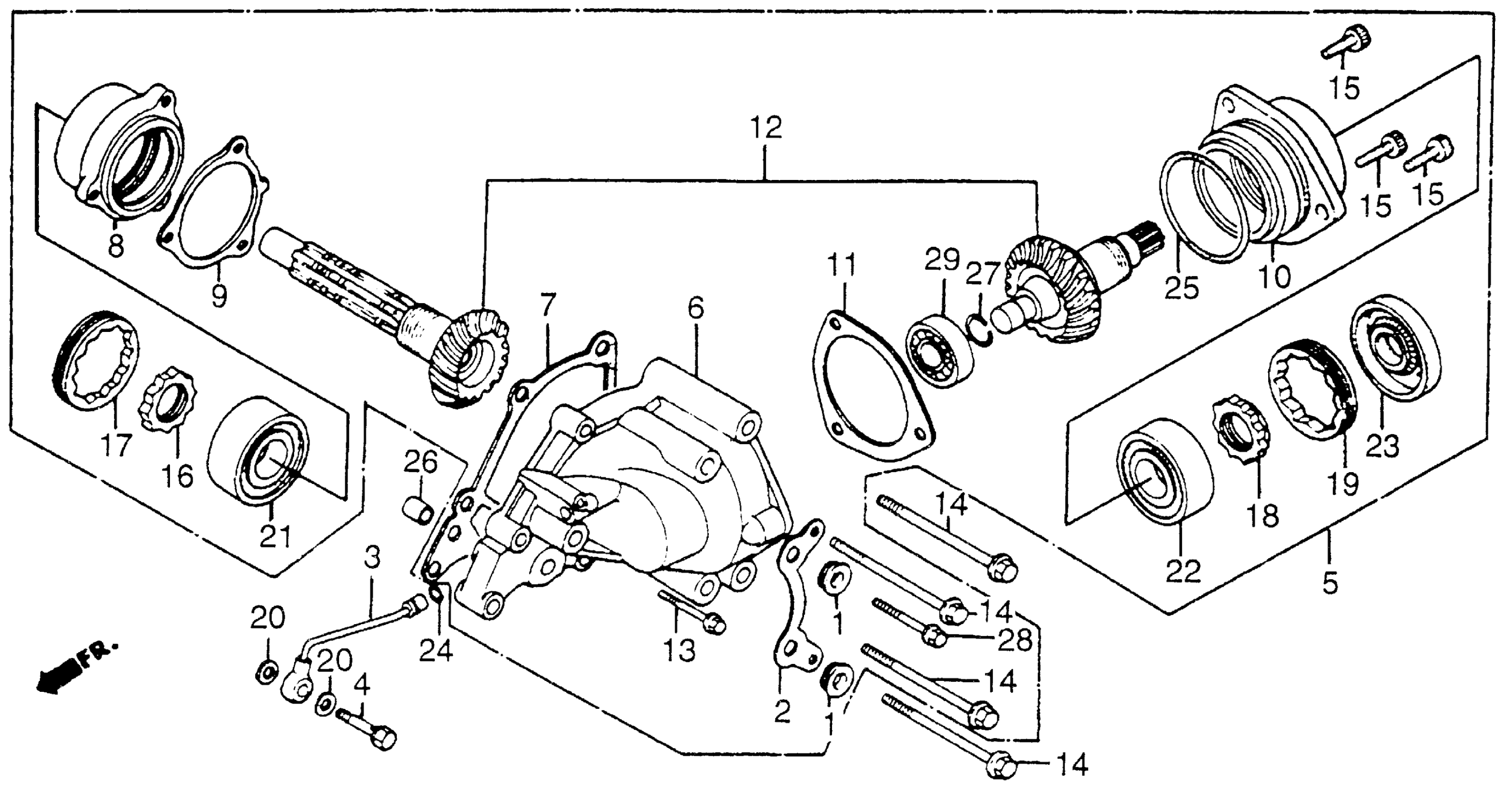

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 SIDE GEAR CASE Diagram

#

Description
Price

1

GROMMET B, RR. COVER

11345-MB0-000

$4.06

2

STAY, L. SIDE COVER (A)

11363-ME5-000

Unavailable

3

PIPE, TRANSMISSION OIL

15560-ME5-000

Unavailable

4

BOLT, OIL CONTROL (8X41)

15566-ME5-000

Unavailable

5

CASE ASSY., SIDE GEAR

21100-ME5-770

Unavailable

6

CASE, SIDE GEAR

21200-ME5-000

Unavailable

7

GASKET, SIDE GEAR CASE This part replaces 21291-ME5-000.

21291-ME5-306

Unavailable

7

GASKET, SIDE GEAR CASE

21291-ME5-306

Unavailable

8

HOLDER, COUNTERSHAFT BEARING

21301-ME5-000

Unavailable

9

SHIM, COUNTERSHAFT (0.4)

21321-ME5-000

Unavailable

9

SHIM, COUNTERSHAFT (0.45)

21322-ME5-000

Unavailable

9

SHIM, COUNTERSHAFT (0.5)

21323-ME5-000

Unavailable

9

SHIM, COUNTERSHAFT (0.55)

21324-ME5-000

Unavailable

9

SHIM, COUNTERSHAFT (0.6)

21325-ME5-000

Unavailable

10

HOLDER, CROSS SHAFT BEARING

21371-ME5-010

Unavailable

11

SHIM, CROSS SHAFT (0.2)

21381-ME5-000

Unavailable

11

SHIM, CROSS SHAFT (0.25)

21382-ME5-000

Unavailable

11

SHIM, CROSS SHAFT (0.3) (NOT AVAILABLE)

21383-ME5-000

Unavailable

11

SHIM, CROSS SHAFT (0.35)

21384-ME5-000

Unavailable

11

SHIM, CROSS SHAFT (0.4)

21385-ME5-000

Unavailable

11

SHIM, CROSS SHAFT (0.45)

21386-ME5-000

Unavailable

11

SHIM, CROSS SHAFT (0.50)

21387-ME5-000

Unavailable

12

SHAFT SET, CROSS

23200-ME5-770

Unavailable

13

BOLT, UBS (8X55)

90045-ME5-000

$7.26

14

BOLT, UBS (8X87)

90046-ME5-000

Unavailable

15

BOLT, SOCKET (8X22)

90061-MB0-000

$5.44

16

NUT, LOCK (30MM)

90241-MB0-000

$21.10

17

NUT, LOCK (64MM)

90242-MB0-000

$32.52

18

NUT, LOCK (28MM)

90243-ME5-000

Unavailable

19

NUT, LOCK (60MM)

90244-HA0-000

$37.87

19

NUT, LOCK (60MM)

90244-ME5-000

$37.87

20

WASHER C (8MM)

90475-703-000

$1.49

21

BEARING, RADIAL BALL (5206) This part replaces 91012-MB0-003.

91012-MG7-003

$95.20

21

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

22

BEARING, RADIAL BALL (62/28)

91006-KBA-901

Unavailable

22

BEARING, RADIAL BALL (62/28) This part replaces 91006-KR1-761.

91006-KBA-901

Unavailable

22

BEARING, RADIAL BALL (62/28) This part replaces 91014-ME5-008.

91006-KBA-901

Unavailable

23

OIL SEAL (25X61X8.5) (ARAI)

91205-ME5-003

Unavailable

24

O-RING (5.1X2.2) (ARAI)

91304-ME5-003

$1.50

25

O-RING (70X3.0)

91362-461-000

$6.93

26

PIN A, DOWEL (10X16)

94301-10160

$2.28

27

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

28

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

28

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

29

BEARING, RADIAL BALL (6302)

96100-63020-00

$8.91
