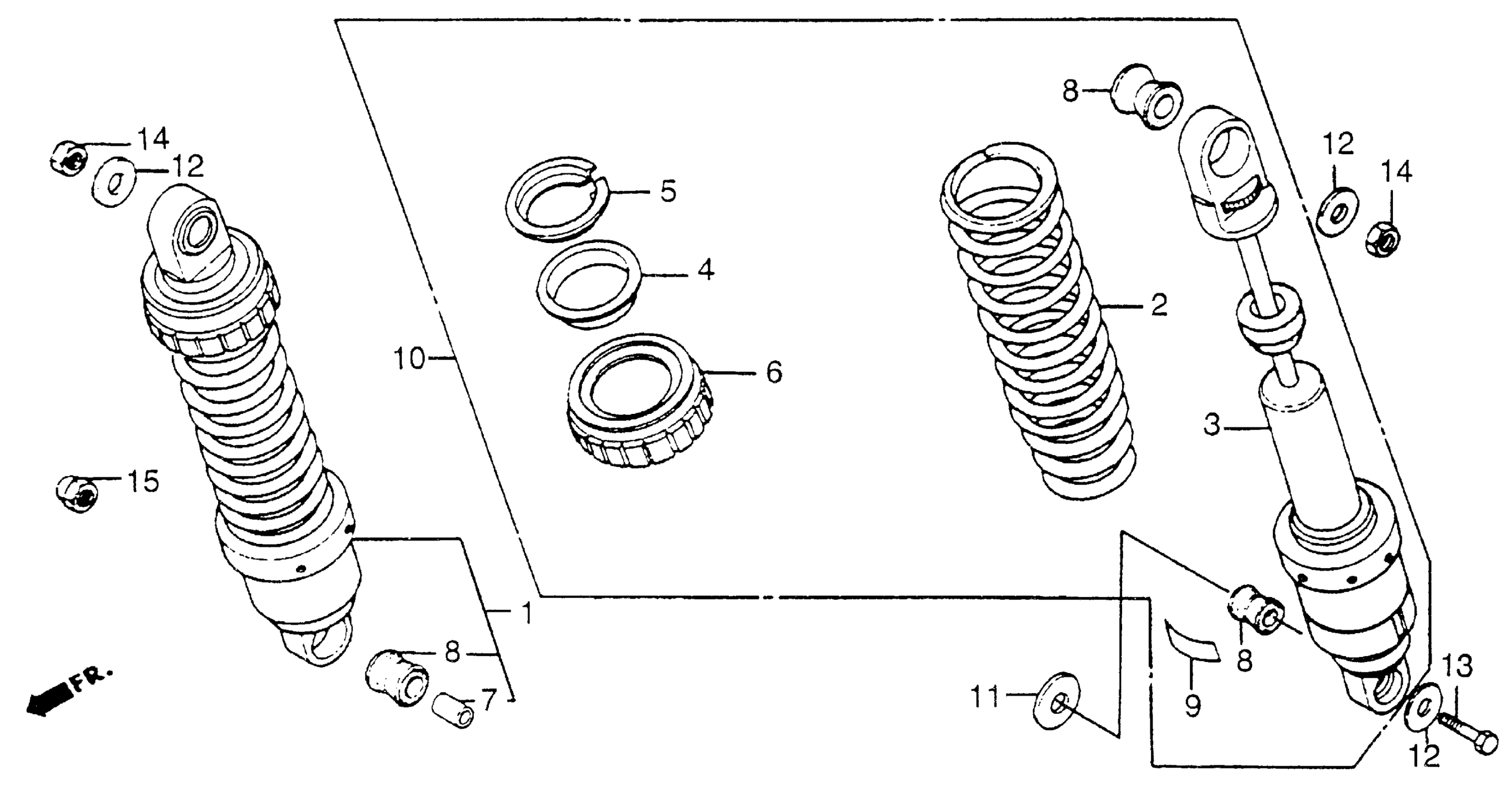

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 REAR SHOCK ABSORBER 85 Diagram

SHOCK ABSORBER ASSY., R. RR.

52400-ME5-781

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-ME5-781

Unavailable

DAMPER, RR.

52410-ME5-781

Unavailable

COVER, PROTECTOR

52450-ME5-781

Unavailable

STOPPER, SPRING SEAT

52452-ME5-781

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER)

52460-ME5-781

Unavailable

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

BUSH, RUBBER (UPPER) (SHOWA)

52489-461-771

$6.34

LABEL A

52496-MB4-003

$7.56

SHOCK ABSORBER ASSY., L. RR.

52500-ME5-781

Unavailable

WASHER, PLAIN (16MM)

90439-463-000

$1.50

WASHER (10.3MM)

90521-292-000

$3.42

BOLT, HEX. (10X35) This part replaces 93200-10035-0B.

93201-10035-0B

Unavailable

NUT, HEX. (10MM)

94001-10000-0S

$1.49

NUT, CAP (10MM)

94021-10020-0S

$2.08
