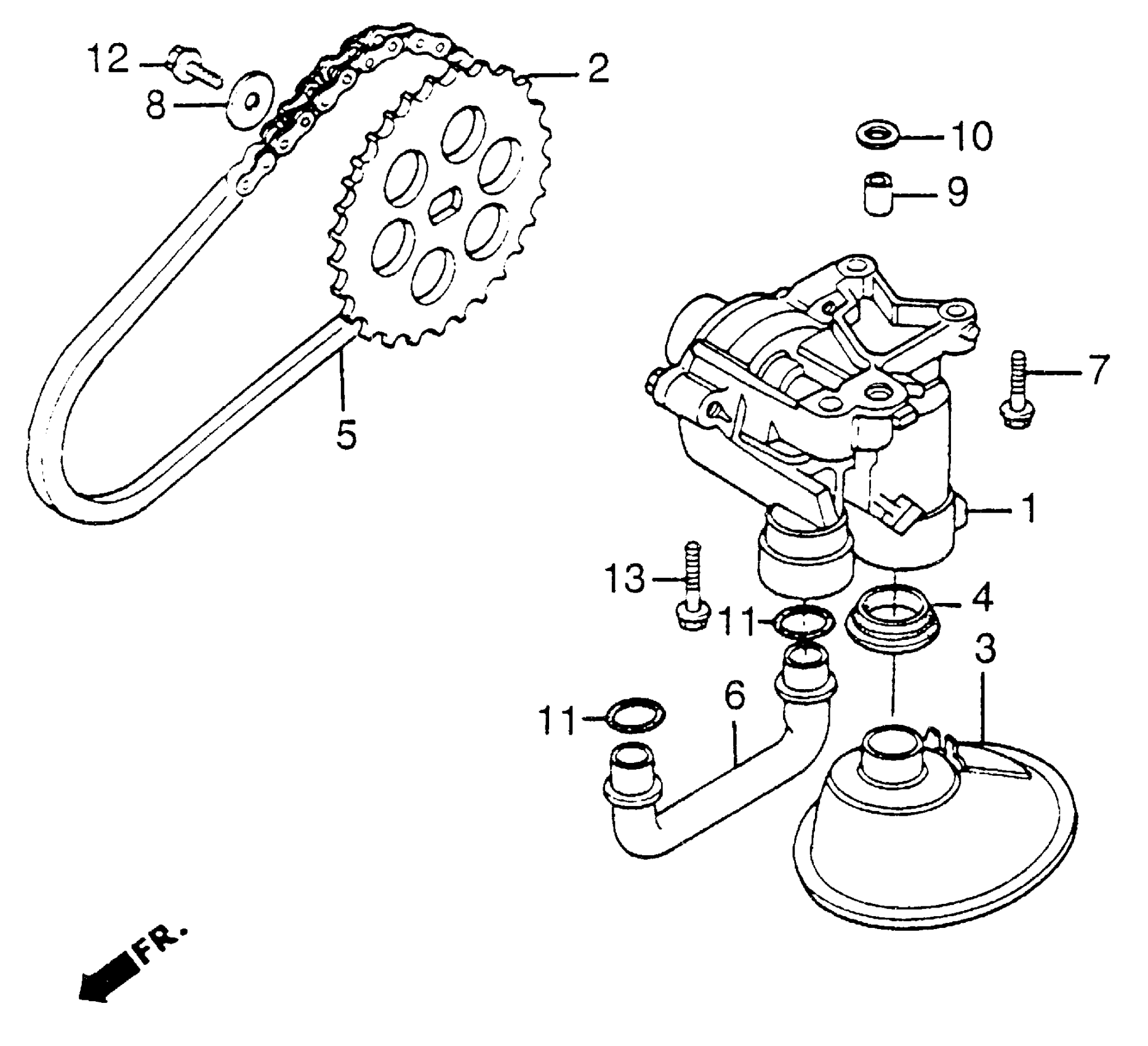

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 OIL PUMP Diagram

PUMP ASSY., OIL

15100-ME5-010

Unavailable

SPROCKET, OIL PUMP DRIVEN

15151-ME5-000

Unavailable

STRAINER, OIL | Use up to Engine SN 2205566

15153-ME5-010

Unavailable

STRAINER, OIL | Use from Engine SN 2205567

15153-ME5-020

Unavailable

GASKET, OIL STRAINER (NOT AVAILABLE) | Use up to Engine SN 2205566

15154-MA6-010

Unavailable

GASKET, OIL STRAINER | Use from Engine SN 2205567

15154-MJ0-000

$7.89

CHAIN, STARTING (56L) This part replaces 15161-ME5-003.

28101-KB4-671

$38.46

PIPE, OIL PASSAGE

15311-ME5-000

Unavailable

BOLT, KNOCK (6X30)

90014-ME5-000

$6.64

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

O-RING (7.7X2.5)

91303-428-003

$1.90

O-RING (14.6X3.6) (NOK)

91308-MA6-005

$4.19

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
