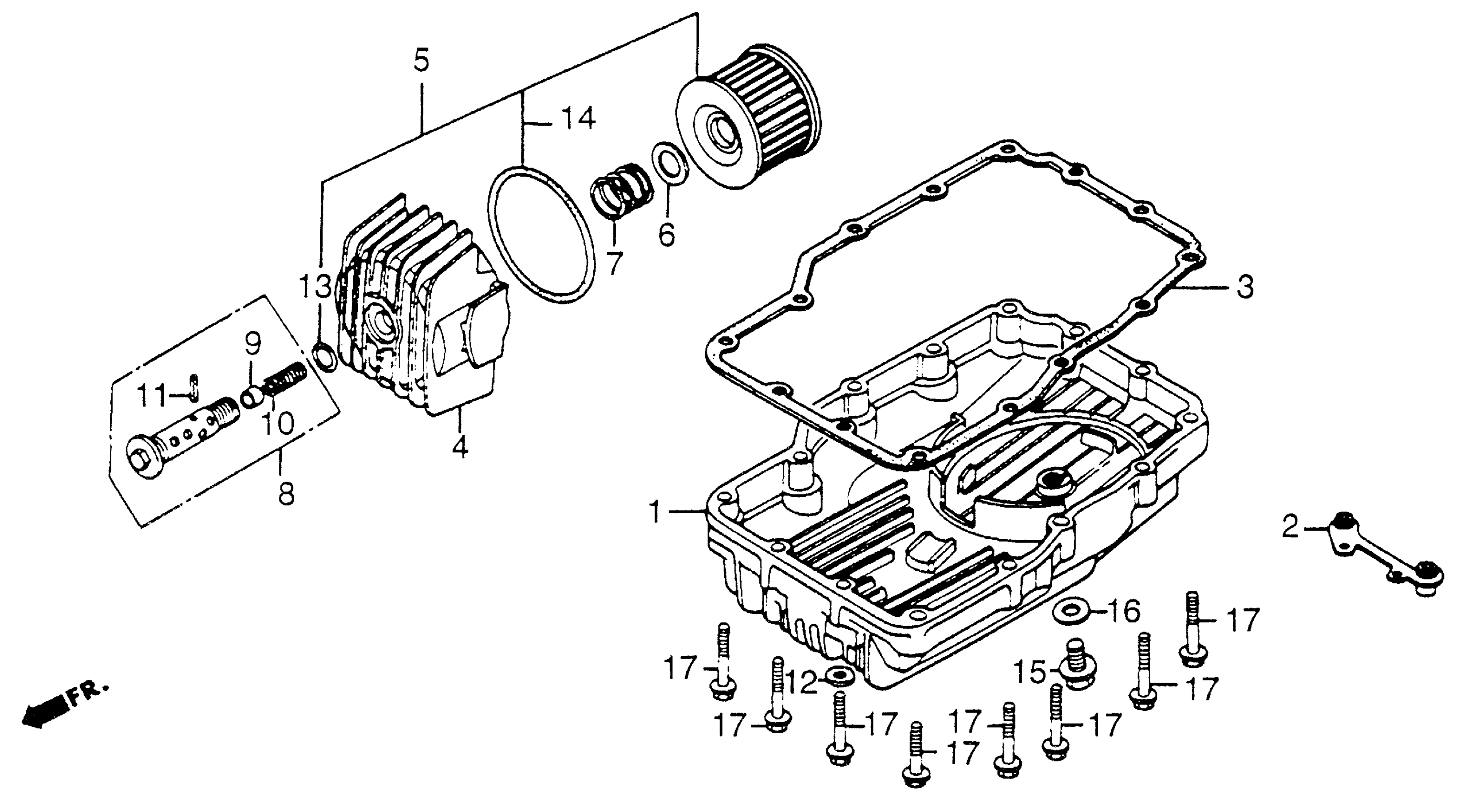

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 OIL FILTER + OIL PAN Diagram

PAN, OIL | Use up to Engine SN 2205566 This part replaces 11210-ME5-010.

11210-ME5-405

Unavailable

PAN, OIL | Use up to Engine SN 2205566

11210-ME5-405

Unavailable

PAN, OIL (NOT AVAILABLE) | Use from Engine SN 2205567

11210-ME5-020

Unavailable

COLLAR, MUFFLER JOINT

11215-ME5-000

Unavailable

GASKET, OIL PAN This part replaces 11398-ME5-000.

11398-ME5-306

Unavailable

GASKET, OIL PAN

11398-ME5-306

Unavailable

CASE, OIL FILTER

15411-ME5-000

Unavailable

ELEMENT, OIL FILTER

15410-426-010

$9.30

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

BOLT, OIL FILTER CENTER | Use up to Engine SN 2205566

15450-ME5-000

Unavailable

BOLT, OIL FILTER CENTER | Use from Engine SN 2205567

15450-ME5-610

Unavailable

VALVE, CHECK

15473-300-300

$4.25

SPRING, CHECK VALVE

15474-300-310

$4.89

PIN, SPRING SETTING

15477-300-300

$3.56

WASHER, SEALING (6MM)

90441-706-000

$1.49

O-RING (15X2.5)

91302-377-000

$5.31

O-RING (89X4.5)

91316-425-003

$4.45

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, FLANGE (6X28) This part replaces 95700-06028-07.

95701-06028-07

$1.49

BOLT, FLANGE (6X28)

95701-06028-07

$1.49
