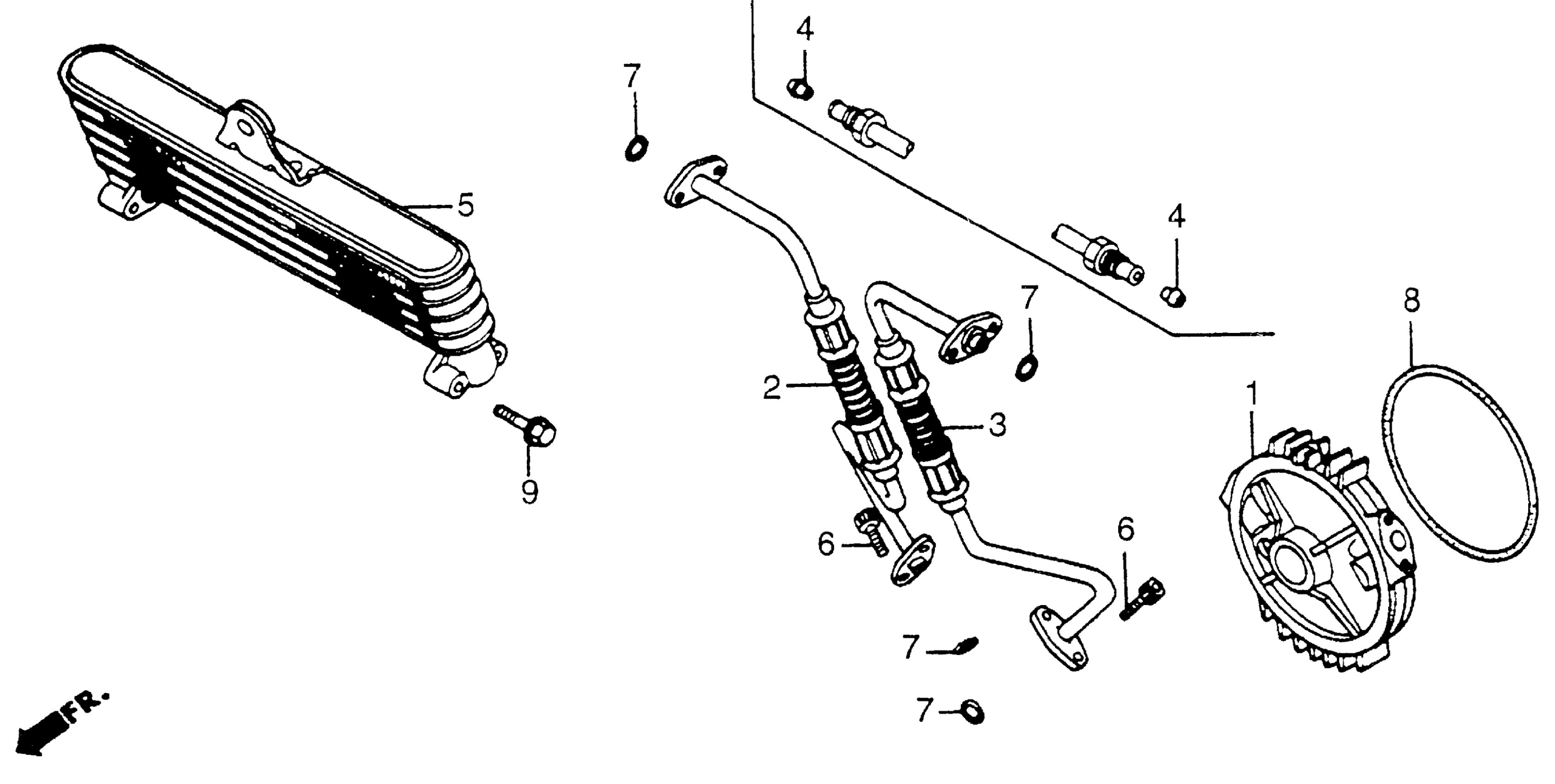

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 OIL COOLER + OIL PIPE Diagram

#

Description

Price

1

CASE, OIL DISTRIBUTING | Use up to Engine SN 2205566

15431-ME5-000

Unavailable

1

CASE, OIL DISTRIBUTING | Use from Engine SN 2205567

15431-ME5-610

Unavailable

2

PIPE, R. OIL | Use up to Engine SN 2205566

15510-ME5-000

Unavailable

2

PIPE, R. OIL HOSE | Use from Engine SN 2205567

15510-ME5-610

Unavailable

3

PIPE, L. OIL (NOT AVAILABLE) | Use up to Engine SN 2205566

15515-ME5-000

Unavailable

3

PIPE, L. OIL HOSE | Use from Engine SN 2205567

15515-ME5-610

Unavailable

4

SEAT, OIL HOSE JOINT | Use from Engine SN 2205567

15517-MA6-010

Unavailable

5

COOLER, OIL | Use from Engine SN 2205567

15600-ME5-610

Unavailable

5

COOLER, OIL (NOT AVAILABLE) | Use up to Engine SN 2205566

15600-ME5-770

Unavailable

6

BOLT, SOCKET (6X18)

90003-ME5-000

Unavailable

7

O-RING (10X2.6) | Use up to Engine SN 2205566

91314-ME5-003

$3.54

7

O-RING (12.5X2.2) | Use from Engine SN 2205567

91303-634-010

$5.69

8

O-RING (89X4.5)

91316-425-003

$4.45

9

BOLT, FLANGE (6X28) | Use from Engine SN 2205567 This part replaces 96000-06028-07.

96001-06028-07

$1.51

9

BOLT, FLANGE (6X28) | Use from Engine SN 2205567

96001-06028-07

$1.51
