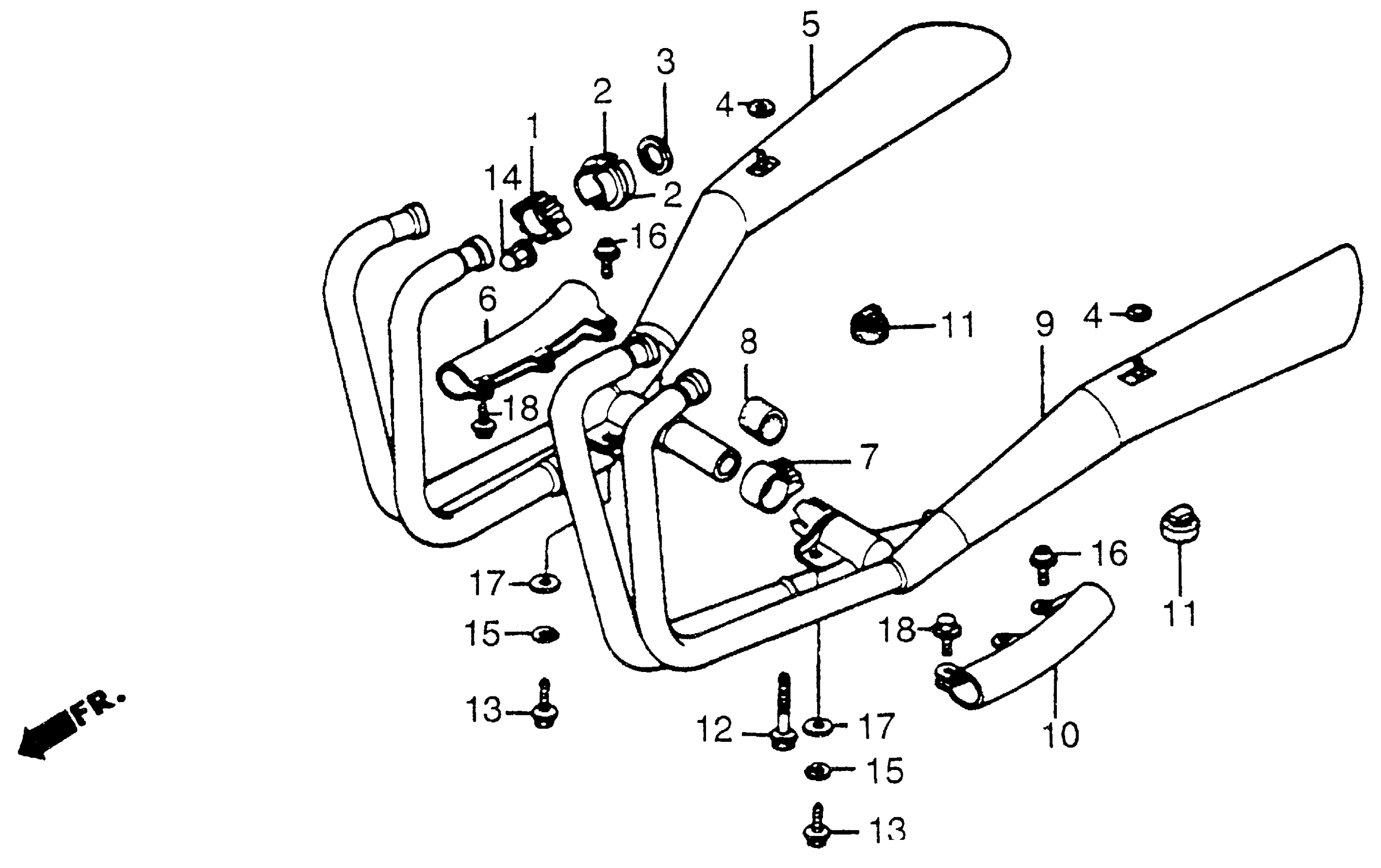

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-ME5-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-460-000

Unavailable

3

GASKET, EX. PIPE

18291-MN4-920

$5.31

3

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

4

GASKET, MUFFLER MOUNT (AS) This part replaces 18292-ME5-000.

18292-ME5-306

Unavailable

4

GASKET, MUFFLER MOUNT (AS)

18292-ME5-306

Unavailable

5

MUFFLER, R. EX. (NOT AVAILABLE)

18300-ME5-672

Unavailable

6

PROTECTOR, R. JOINT (NOT AVAILABLE)

18375-ME5-003

Unavailable

7

BAND, R. RR. MUFFLER

18375-413-000

$40.08

8

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

8

GASKET, MUFFLER This part replaces 18392-413-000.

18392-MG7-750

$13.66

9

MUFFLER, L. EX.

18400-ME5-672

Unavailable

10

PROTECTOR, L. JOINT

18425-ME5-003

Unavailable

11

RUBBER, STAND STOPPER

50524-MG9-000

$6.73

11

RUBBER, STAND STOPPER This part replaces 50524-422-000.

50524-MG9-000

$6.73

12

BOLT, FLANGE (8X37) | Use up to Frame SN FM202404

90118-471-000

$3.19

12

BOLT, FLANGE (8X40) | Use from Frame SN FM202405 This part replaces 95800-08040-00.

95801-08040-00

$1.49

12

BOLT, FLANGE (8X40) | Use from Frame SN FM202405

95801-08040-00

$1.49

12

BOLT, FLANGE (8X40) | Use from Frame SN FM202405 This part replaces 95821-08040-00.

95801-08040-00

$1.49

13

BOLT, UBS (8X50)

90155-ME5-000

Unavailable

14

NUT, CAP (6MM)

90304-438-000

$7.14

15

WASHER, LOCK

90401-MA1-000

$6.05

16

SCREW-WASHER (6X10)

93893-06010-00

$1.49

17

WASHER, PLAIN (8MM)

94103-08000

$1.49

18

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

18

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
