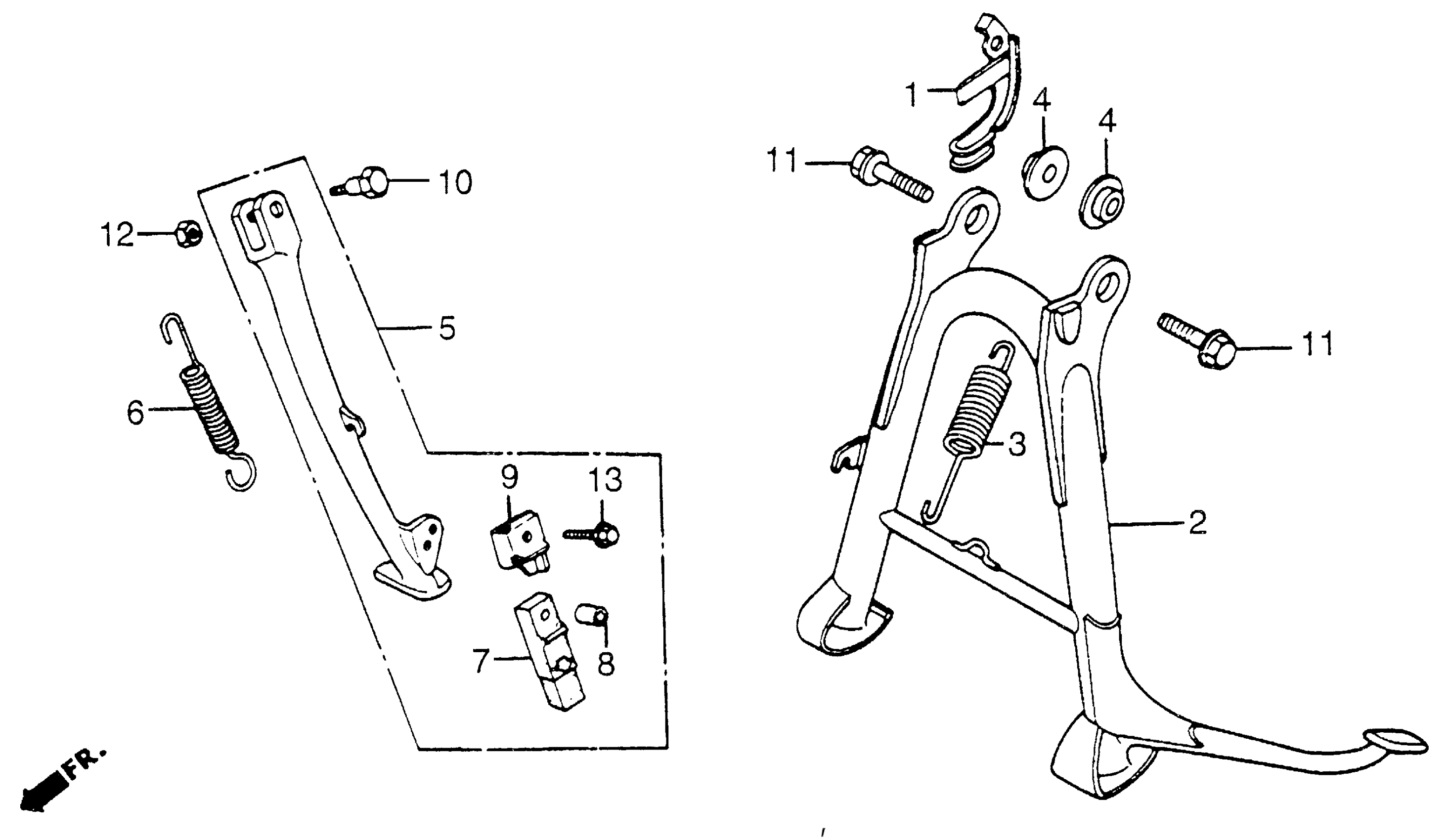

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 MAIN STAND + SIDE STAND Diagram

GUIDE, DRAIN TUBE

50324-ME5-000

Unavailable

STAND, MAIN (NOT AVAILABLE)

50500-ME5-000

Unavailable

SPRING, MAIN STAND

50501-ME5-000

Unavailable

COLLAR, MAIN STAND

50503-MA1-000

$11.58

BAR ASSY., SIDE STAND This part replaces 50540-ME5-000.

50540-ME5-610

Unavailable

BAR ASSY., SIDE STAND

50540-ME5-610

Unavailable

BAR ASSY., SIDE STAND This part replaces 50540-ME5-830.

50540-ME5-610

Unavailable

SPRING, SIDE STAND

50541-MB0-000

$11.75

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BRACKET, SIDE STAND RUBBER

50574-MB0-000

Unavailable

BOLT, SIDE STAND PIVOT

90108-MB0-000

Unavailable

BOLT, FR. RADIUS ROD | Use up to Frame SN FM205457

90119-671-000

Unavailable

BOLT, FLANGE (10X28) | Use from Frame SN FM205458

95701-10028-08

$2.19

BOLT, FLANGE (10X28) | Use from Frame SN FM205458 This part replaces 95800-10028-08.

95701-10028-08

$2.19

BOLT, FLANGE (10X28) | Use from Frame SN FM205458 This part replaces 95815-10028-08.

95701-10028-08

$2.19

NUT, HEX. (10MM)

94031-10000

$1.49

BOLT, SIDE STAND PIVOT

90108-MJ0-000

$8.09
