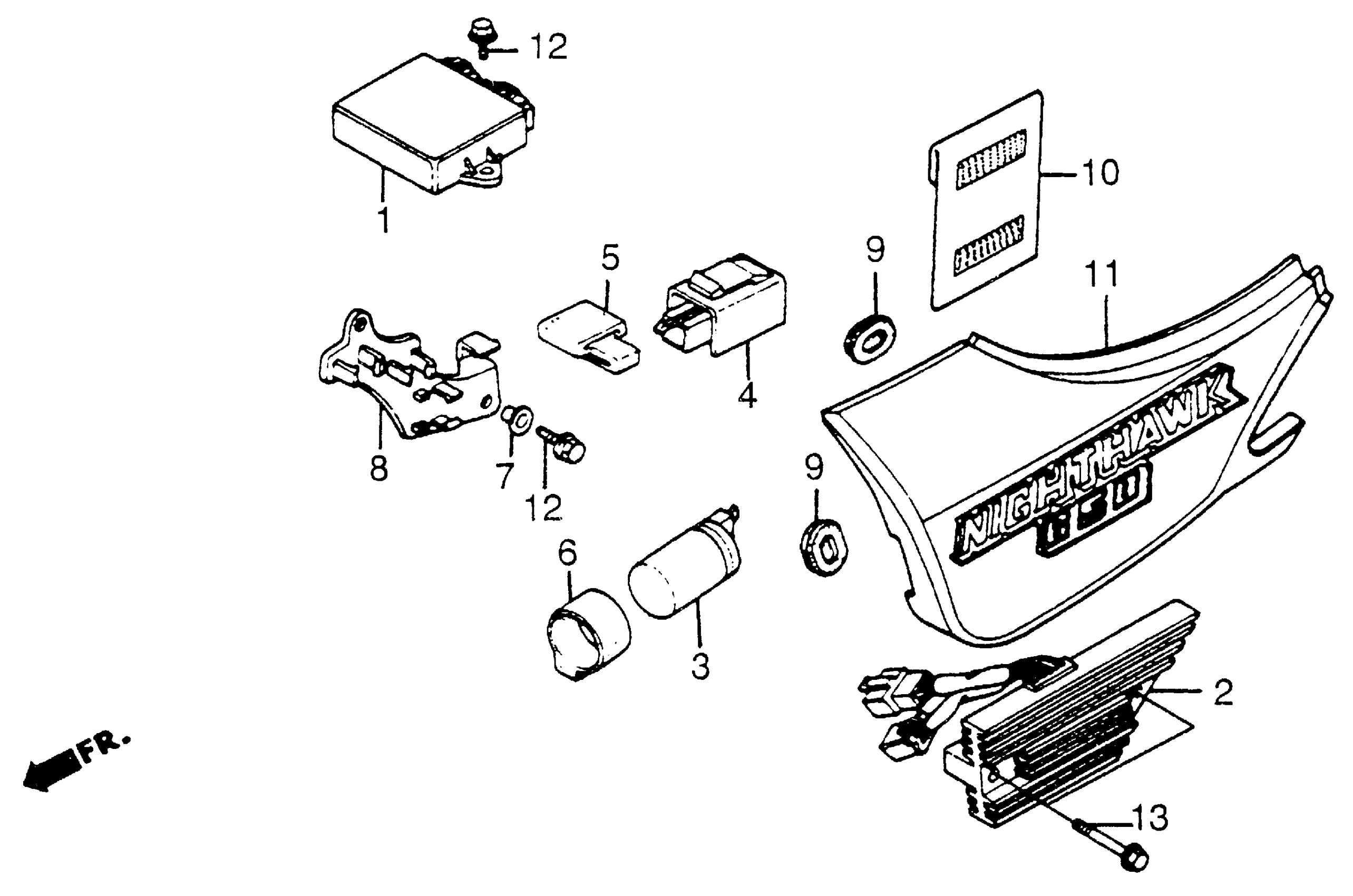

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 LEFT SIDE COVER + IGNITER UNIT Diagram

MODULE, IGNITION CONTROL (CDI) (DENSO) (NOT AVAILABLE)

30400-ME5-014

Unavailable

MODULE, IGNITION CONTROL (CDI) (DENSO) (NOT AVAILABLE) This part replaces 30400-ME5-015.

30400-ME5-014

Unavailable

RECTIFIER ASSY. This part replaces 31600-ME5-003.

31600-ME5-013

Unavailable

RECTIFIER ASSY.

31600-ME5-013

Unavailable

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MF8-773.

38301-KK9-952

$67.94

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

SUSPENSION, TURN SIGNAL RELAY

38306-KJ6-740

$7.49

COLLAR, CHAIN CASE (NOT AVAILABLE)

40514-147-000

Unavailable

PLATE, ELECTRIC BASE

50330-ME5-000

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

BAG, OWNER'S MANUAL

83642-355-000

$26.87

COVER SET, L. SIDE *R130CU* (WL) (CANDY SCORPIO RED) (NOT AVAILABLE)

837A0-ME5-780ZA

Unavailable

COVER SET, L. SIDE *PB117CU* (WL) (CANDY EMPIRE BLUE)

837A0-ME5-780ZB

Unavailable

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X45) This part replaces 95700-06045-07.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06
