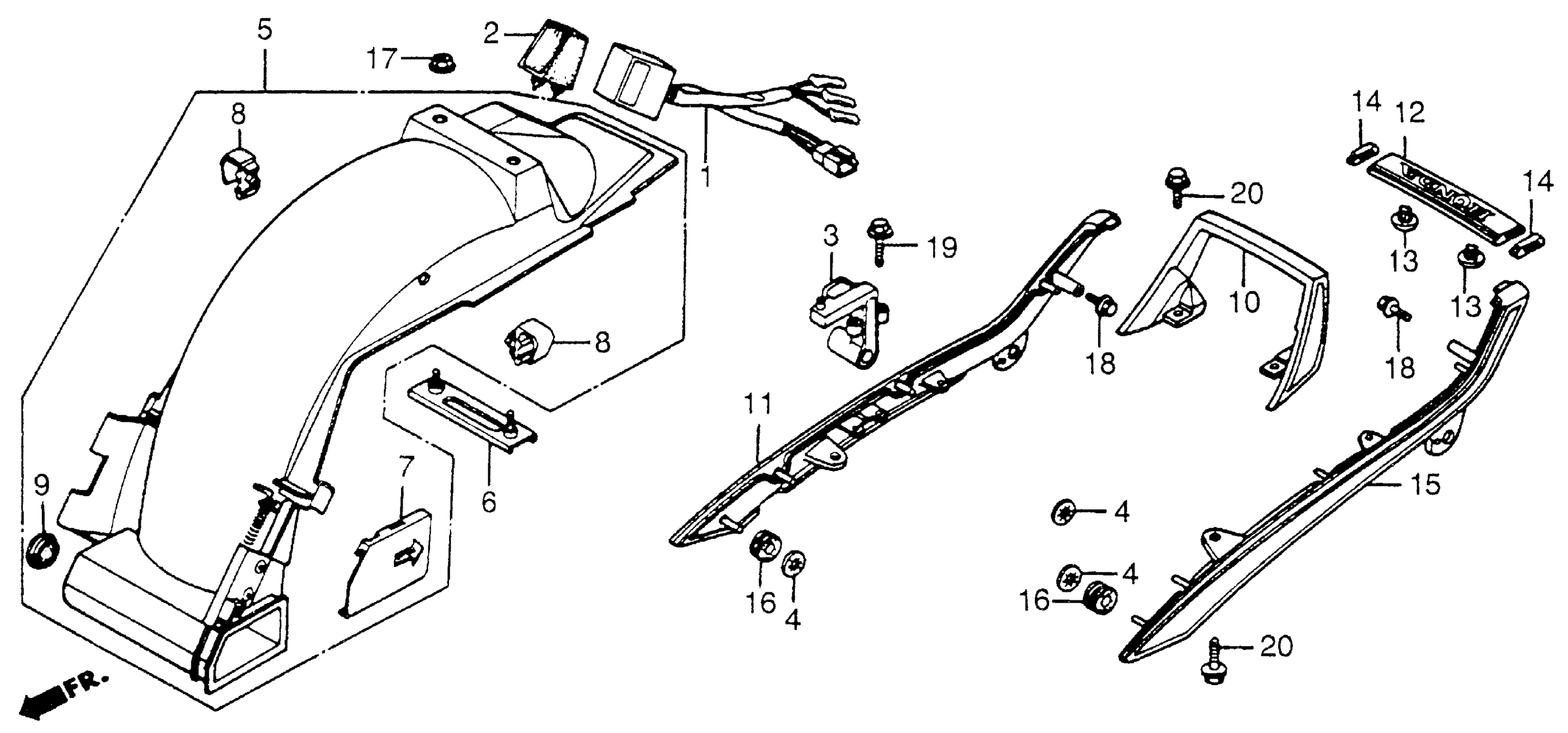

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 GRAB RAIL + REAR FENDER Diagram

SENSOR, STOP & TAILLIGHT

35550-MB1-671

Unavailable

SUSPENSION, STOP & TAIL

35551-ME5-000

Unavailable

HOLDER ASSY., HELMET

50710-ME5-003

Unavailable

NUT, SPEED (4MM) This part replaces 77201-ME5-000.

90313-172-000

$5.85

FENDER B ASSY. This part replaces 80100-ME5-000.

80100-ME5-840

Unavailable

PLATE, RR. FENDER SETTING

80102-ME5-000

Unavailable

LID, TOOL BOX

80104-ME5-000

Unavailable

CLAMP, CABLE

80110-147-000

$2.64

PLUG, FENDER

80123-ME5-000

$3.96

GRIP, RR. (NOT AVAILABLE)

84100-ME5-000

Unavailable

GRAB RAIL, R. (NOT AVAILABLE)

84150-ME5-000

Unavailable

JOINT, GRAB RAIL

84155-ME5-000

Unavailable

RUBBER, GRAB RAIL JOINT (NOT AVAILABLE)

84156-ME5-000

Unavailable

RUBBER, GRAB RAIL SPACER

84157-ME5-000

Unavailable

GRAB RAIL, L.

84200-ME5-000

Unavailable

RUBBER, SIDE COVER SET

84905-ME5-000

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
