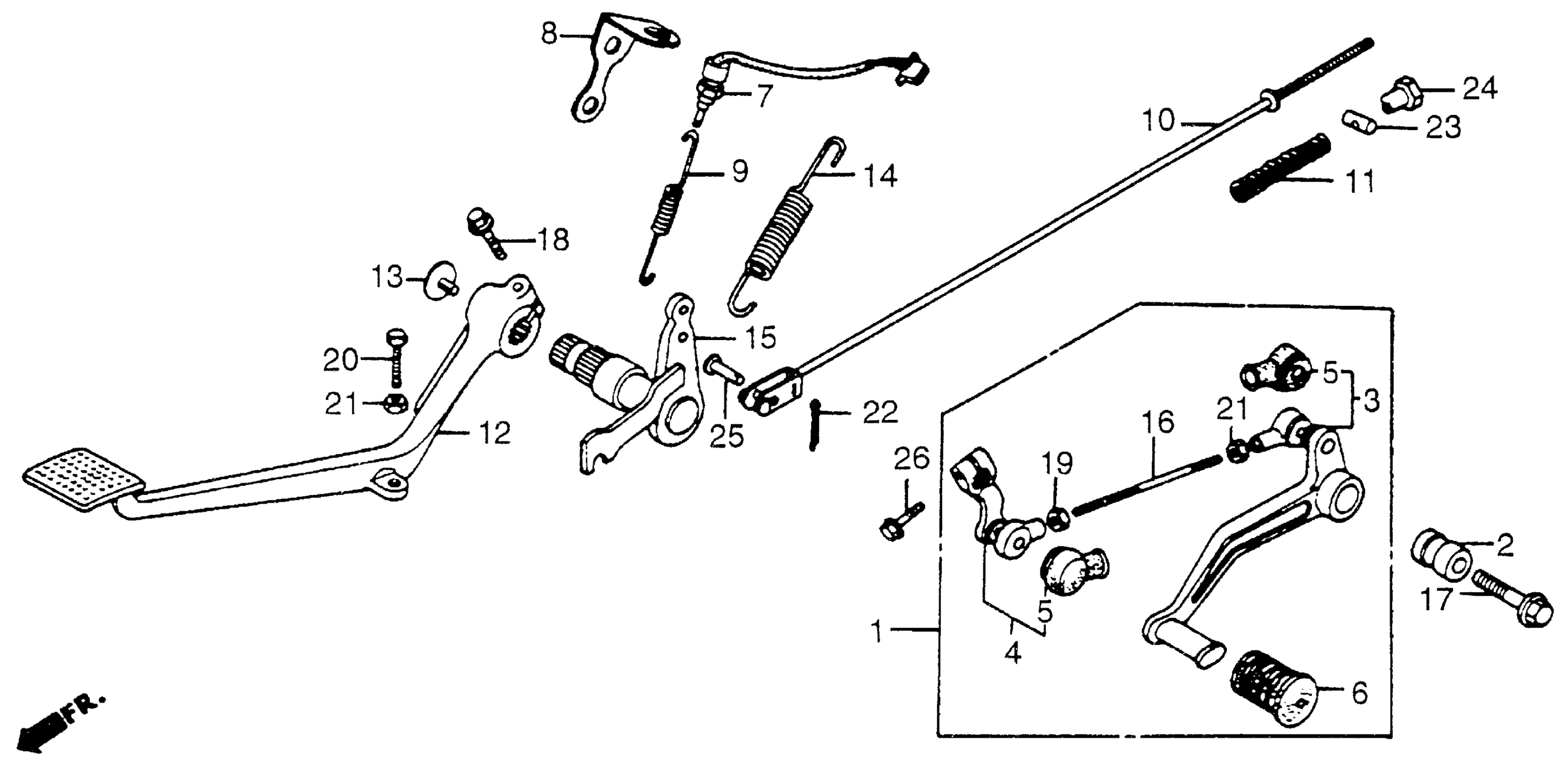

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 GEARSHIFT PEDAL + BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-ME5-000

Unavailable

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$12.16

3

PEDAL, GEARSHIFT

24720-ME5-000

Unavailable

4

ARM, GEARSHIFT (NOT AVAILABLE)

24721-ME5-000

Unavailable

5

COVER, DUST

24724-422-000

$6.68

6

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

7

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

7

SWITCH ASSY., RR. STOP This part replaces 35350-MB3-670.

35350-KA2-405

$16.22

7

SWITCH ASSY., RR. STOP This part replaces 35350-ME5-000.

35350-KA2-405

$16.22

7

SWITCH ASSY., RR. STOP This part replaces 35350-MJ6-711.

35350-KA2-405

$16.22

8

STAY, STOP SWITCH

35351-ME5-000

Unavailable

9

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-ME5-000

Unavailable

10

ROD, RR. BRAKE This part replaces 43451-ME5-000.

43451-ME5-405

Unavailable

10

ROD, RR. BRAKE

43451-ME5-405

Unavailable

11

SPRING, BRAKE ROD

43472-460-840

Unavailable

12

PEDAL, RR. BRAKE

46500-ME5-000

Unavailable

13

CAP, RR. BRAKE SPINDLE (NOT AVAILABLE)

46511-460-840

Unavailable

14

SPRING, RR. BRAKE ARM RETURN

46514-ME5-000

Unavailable

15

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46515-ME5-000

Unavailable

16

BOLT, TIE ROD

90065-ME5-000

Unavailable

17

BOLT, SPECIAL FLANGE (8X28)

90103-MB0-000

$4.94

18

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

19

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

20

BOLT, HEX. (8X30)

92030-06030-0H

Unavailable

21

NUT, HEX. (6MM)

94002-06020-0S

$1.49

22

PIN, COTTER (1.6X12)

94201-16120

$1.49

23

JOINT, BRAKE ARM

95015-32001

$1.49

24

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

25

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

26

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

26

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
