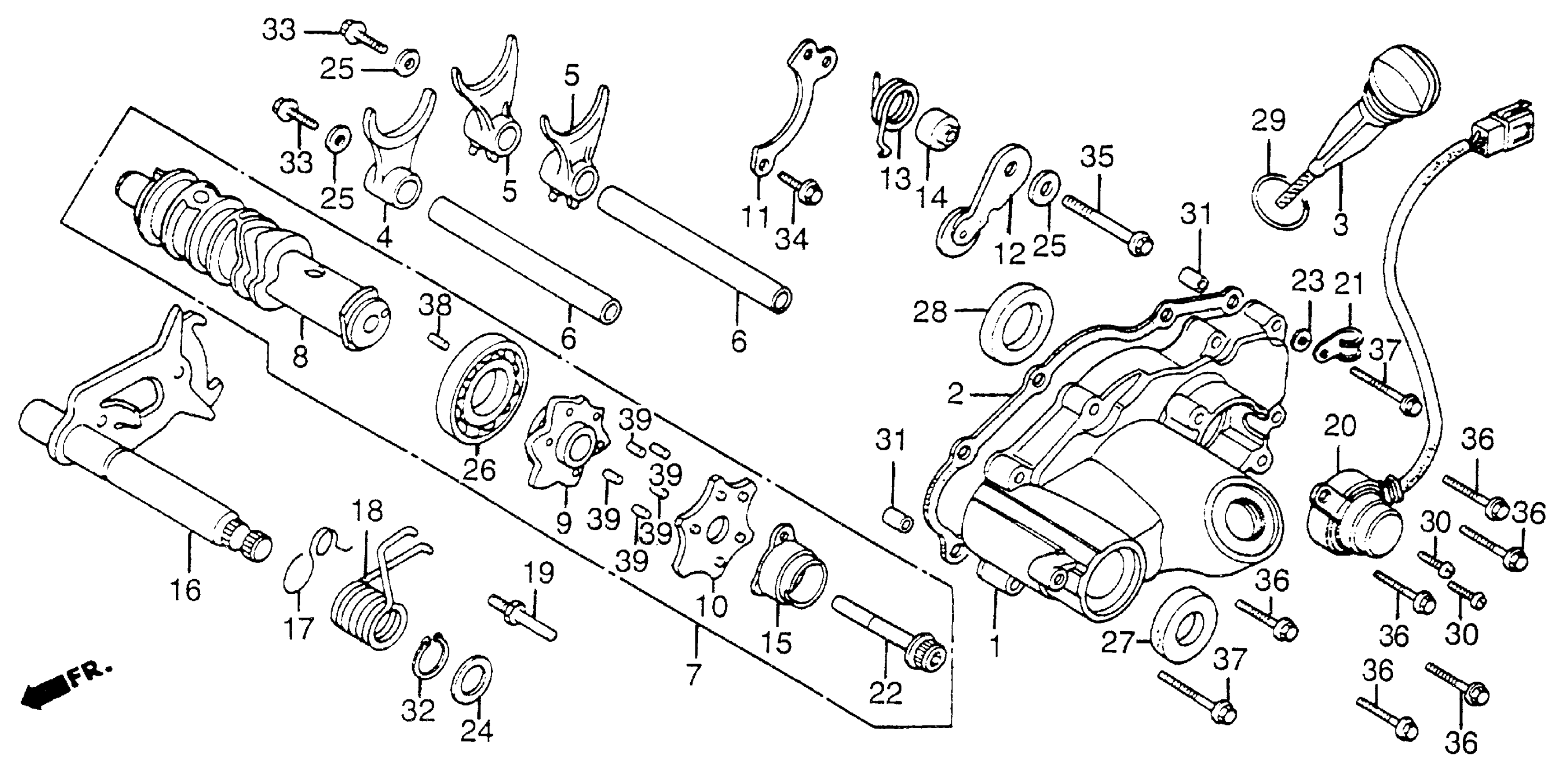

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 GEARSHIFT DRUM + SHIFT DRUMCOVER Diagram

#

Description
Price

1

COVER, SHIFT DRUM

11351-ME5-000

Unavailable

2

GASKET, CHANGE COVER (AS) This part replaces 11359-ME5-000.

11359-ME5-306

Unavailable

2

GASKET, CHANGE COVER (AS)

11359-ME5-306

Unavailable

3

DIPSTICK, OIL (NOT AVAILABLE) | Use up to Engine SN 2205566

15650-ME5-000

Unavailable

3

DIPSTICK, OIL (NOT AVAILABLE) | Use from Engine SN 2205567

15650-ME5-610

Unavailable

4

FORK, MAINSHAFT GEARSHIFT

24211-ME5-000

Unavailable

5

FORK, COUNTERSHAFT GEARSHIFT (NOT AVAILABLE)

24221-ME5-000

Unavailable

6

SHAFT, GEARSHIFT FORK

24231-ME5-000

Unavailable

7

DRUM, GEARSHIFT FORK This part replaces 24300-ME5-000.

24300-ME5-010

Unavailable

7

DRUM, GEARSHIFT FORK

24300-ME5-010

Unavailable

8

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-ME5-000

Unavailable

9

CENTER, GEARSHIFT DRUM

24302-ME5-000

Unavailable

10

PLATE, DRUM CENTER

24303-ME5-000

Unavailable

11

PLATE, GEARSHIFT DRUM SETTING

24307-ME5-000

Unavailable

12

STOPPER, GEARSHIFT DRUM

24430-MA6-000

Unavailable

13

SPRING, GEARSHIFT DRUM STOPPER

24435-ME5-000

Unavailable

14

COLLAR, GEARSHIFT DRUM STOPPER

24437-MA6-000

Unavailable

15

JOINT, GEARSHIFT DRUM

24443-ME5-000

Unavailable

16

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-ME5-000

Unavailable

17

SPRING, GEARSHIFT RESET

24624-MA6-000

Unavailable

18

SPRING, GEARSHIFT RETURN

24651-107-000

$5.81

19

PIN, SHIFT RETURN SPRING

24652-259-000

$4.97

20

SWITCH ASSY., CHANGE | Use up to Engine SN 2204311 This part replaces 35759-ME5-003.

35759-ME5-023

Unavailable

20

SWITCH ASSY., CHANGE This part replaces 35759-ME5-013.

35759-ME5-023

Unavailable

20

SWITCH ASSY., CHANGE | Use up to Engine SN 2204311 This part replaces 35759-ME5-013.

35759-ME5-023

Unavailable

20

SWITCH ASSY., CHANGE

35759-ME5-023

Unavailable

20

SWITCH ASSY., CHANGE | Use up to Engine SN 2204311

35759-ME5-023

Unavailable

21

CLAMP, CHANGE SWITCH WIRE (NOT AVAILABLE)

35763-ME5-000

Unavailable

22

BOLT, FLANGE SOCKET (8X42)

90064-ME5-000

Unavailable

23

WASHER, THRUST (11MM)

90425-300-000

$2.66

24

WASHER (14.2MM)

90451-115-000

$2.92

25

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

26

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$15.03

27

OIL SEAL (14X28X7) This part replaces 91206-MA6-003.

91206-MA6-005

$5.12

27

OIL SEAL (14X28X7)

91206-MA6-005

$5.12

28

OIL SEAL (25X37X5) (NOT AVAILABLE)

91208-ME5-005

Unavailable

29

O-RING (22X3.0)

91307-425-003

$2.59

30

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

30

SCREW, PAN (6X14)

93500-06014-0A

$1.49

30

SCREW, PAN (6X14) This part replaces 93500-06014-1A.

93500-06014-0A

$1.49

30

SCREW, PAN (6X14) This part replaces 93500-06015.

93500-06014-0A

$1.49

31

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

32

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

33

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

33

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

34

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

34

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

35

BOLT, FLANGE (6X32) This part replaces 95800-06032-08.

95801-06032-08

$3.80

35

BOLT, FLANGE (6X32)

95801-06032-08

$3.80

36

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

36

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

37

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

37

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

38

ROLLER (4X13)

96220-40130

Unavailable

39

ROLLER (4X14.8)

96220-40148

$1.49
