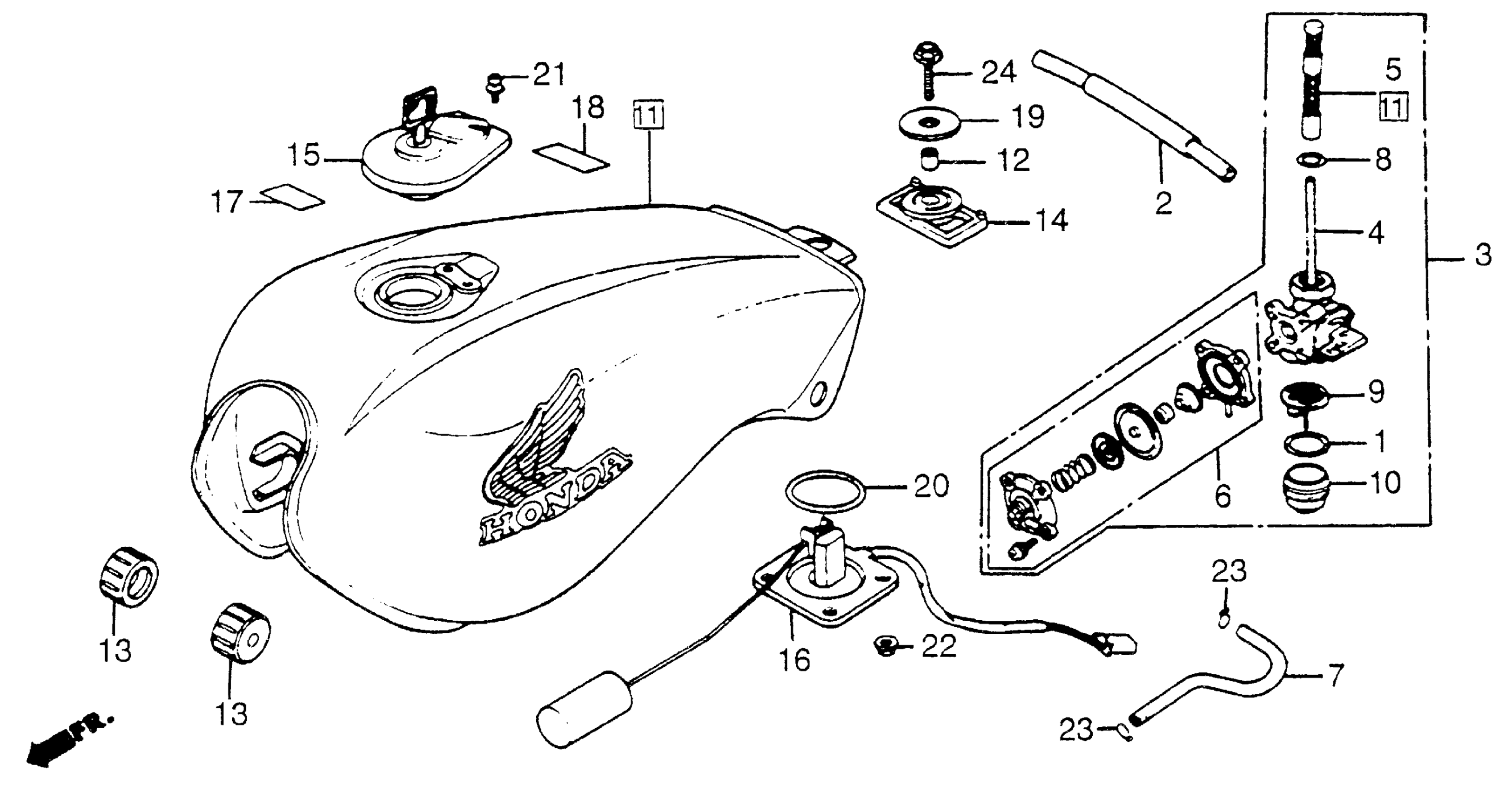

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 FUEL TANK Diagram

#

Description
Price

1

O-RING (2.4X18.6)

16075-GHB-B00

$4.67

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

2

HOSE, FUEL (NOT AVAILABLE)

16940-ME5-000

Unavailable

3

PETCOCK ASSY. This part replaces 16950-MA6-025.

16950-MA6-035

Unavailable

3

PETCOCK ASSY. This part replaces 16950-ME5-015.

16950-MA6-035

Unavailable

4

BODY, PETCOCK (NOT AVAILABLE)

16951-MF5-015

Unavailable

5

SCREEN SET, FUEL STRAINER This part replaces 16952-MA6-005.

16952-MA6-305

Unavailable

5

SCREEN SET, FUEL STRAINER

16952-MA6-305

Unavailable

6

COVER SET, PETCOCK This part replaces 16953-ME5-005.

16953-ME5-025

$44.58

7

TUBE, PETCOCK (NOT AVAILABLE)

16955-ME5-000

Unavailable

8

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

8

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

9

FILTER, CUP

16959-461-751

$17.88

10

CUP, FUEL STRAINER

16967-GA6-671

$23.28

11

TANK SET, FUEL *R130CU* (WL) (CANDY SCORPIO RED) (NOT AVAILABLE) This part replaces 175A1-ME5-780ZA.

175A1-ME5-781ZA

Unavailable

11

TANK SET, FUEL *PB117CU* (WL) (CANDY EMPIRE BLUE) (NOT AVAILABLE) This part replaces 175A1-ME5-780ZB.

175A1-ME5-781ZB

Unavailable

11

TANK SET, FUEL *R130CU* (WL) (CANDY SCORPIO RED) (NOT AVAILABLE)

175A1-ME5-781ZA

Unavailable

11

TANK SET, FUEL *PB117CU* (WL) (CANDY EMPIRE BLUE) (NOT AVAILABLE)

175A1-ME5-781ZB

Unavailable

12

COLLAR, RR. FUEL TANK SETTING

17514-ME5-000

Unavailable

13

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

13

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

14

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-ME5-000

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-MB1-023.

17620-MB1-043

$129.39

15

CAP, FUEL FILLER This part replaces 17620-MB1-033.

17620-MB1-043

$129.39

16

METER UNIT, FUEL (NOT AVAILABLE) This part replaces 37800-ME5-003.

37800-ME5-013

Unavailable

16

METER UNIT, FUEL (NOT AVAILABLE)

37800-ME5-013

Unavailable

17

LABEL, FR. FORK CAUTION *A03* (SILVER) (NOT AVAILABLE)

87517-MB0-770ZC

Unavailable

18

LABEL, DRIVE CAUTION (NOT AVAILABLE)

87560-MB0-670

Unavailable

18

LABEL, DRIVE CAUTION (NOT AVAILABLE) This part replaces 87560-MB0-670ZA.

87560-MB0-670

Unavailable

19

WASHER (8.3X38)

90502-461-000

Unavailable

20

O-RING (39.5X5)

91305-MC7-000

$3.31

21

SCREW-WASHER (4X6)

45319-634-003

$2.48

22

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

22

NUT, FLANGE (6MM) This part replaces 94050-06000-00.

94050-06000

$1.49

23

CLIP, TUBE (B12)

95002-02120

$2.00

24

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

24

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
