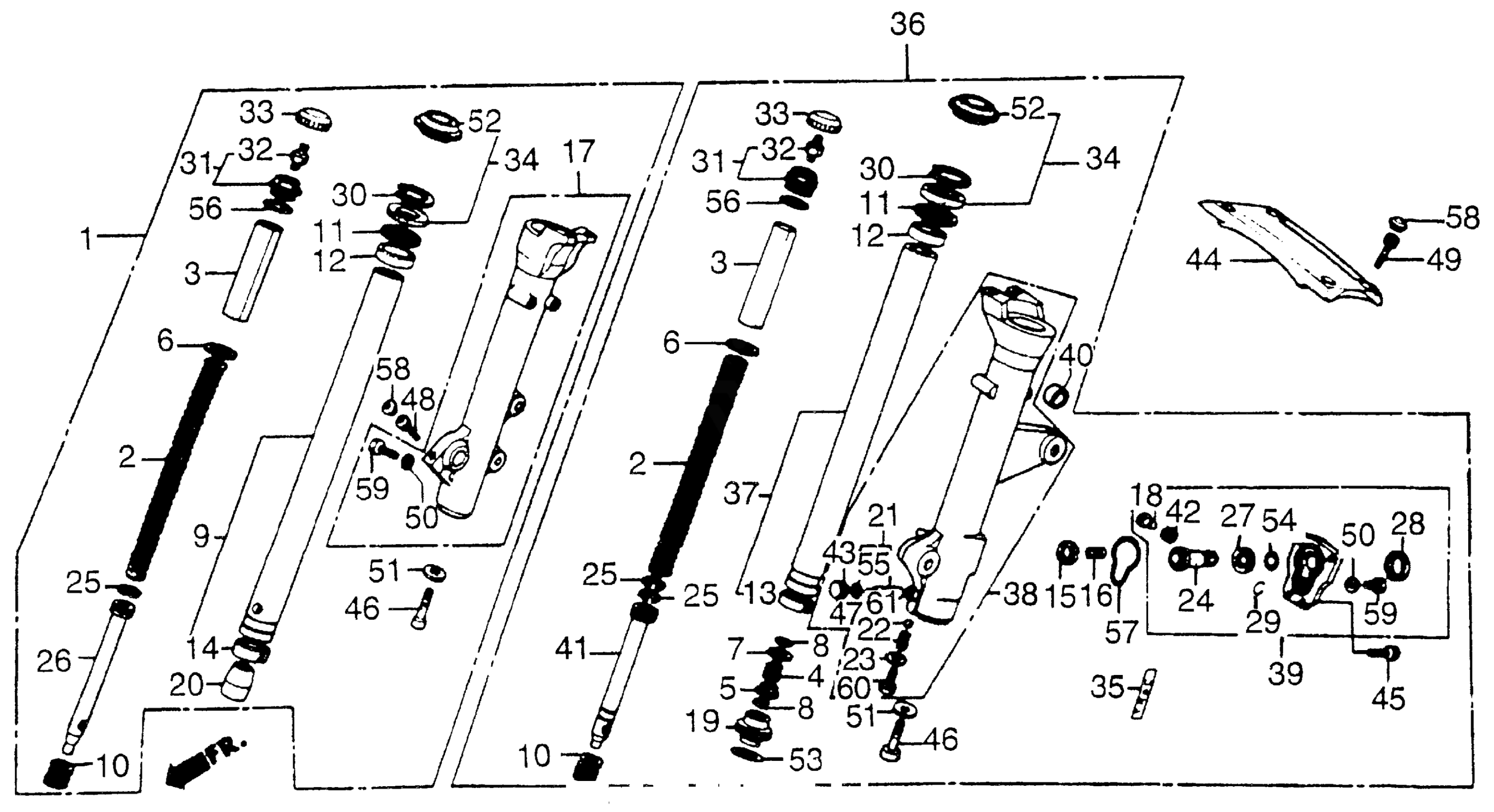

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 FRONT FORK 85 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE) This part replaces 51400-ME5-781.

51400-ME5-782

Unavailable

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-ME5-782

Unavailable

2

SPRING, FR. FORK

51401-ME5-781

Unavailable

3

COLLAR, SPRING (NOT AVAILABLE)

51402-KL3-671

Unavailable

4

SPRING, OIL LOCK

51402-MB7-611

$5.54

5

VALVE, OIL LOCK

51403-MB7-611

$10.85

6

PLATE, SPRING JOINT

51403-ME5-003

Unavailable

7

SEAT, SPRING

51404-MB7-611

$5.26

8

RING, STOPPER

51405-MB7-611

$2.92

9

PIPE, FR. FORK (NOT AVAILABLE) This part replaces 51410-ME5-781.

51410-ME5-782

Unavailable

9

PIPE, FR. FORK (NOT AVAILABLE)

51410-ME5-782

Unavailable

10

SPRING, REBOUND

51411-ME5-003

Unavailable

11

RING, BACK-UP

51412-463-003

$7.75

12

BUSH, FORK PIPE

51414-463-003

$15.77

13

BUSH, SLIDER

51415-MB9-781

$20.08

14

SLEEVE, FORK PIPE

51415-463-003

$18.74

15

GASKET | Use up to Frame SN FM203697 This part replaces 51417-MJ0-003.

51417-MJ0-013

Unavailable

15

GASKET | Use up to Frame SN FM203697

51417-MJ0-013

Unavailable

15

GASKET

51417-MJ0-013

Unavailable

16

SPRING, PISTON

51418-MJ0-003

Unavailable

17

CASE, R. (LOWER) (SHOWA)

51421-ME5-781

Unavailable

18

COLLAR, PISTON

51423-MJ0-003

$11.76

19

PIECE, OIL LOCK

51432-MB7-611

Unavailable

20

PIECE, OIL LOCK

51432-ME5-781

Unavailable

21

ROD SET, ADJUSTER

51591-MJ0-305

Unavailable

22

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

23

WASHER, SPECIAL (5MM)

51435-MC7-003

$2.92

24

PISTON

51436-MJ0-003

Unavailable

25

RING, PISTON

51437-ME5-003

Unavailable

26

PIPE, SEAT

51440-ME5-781

Unavailable

27

RUBBER, STOPPER

51441-MJ0-003

Unavailable

28

BOOT, PISTON CASE

51442-MJ0-003

$9.72

29

RING, STOPPER

51445-MJ0-003

$2.59

30

CIRCLIP (INNER)

51447-463-003

$4.53

31

BOLT ASSY., FR. FORK

51450-ME5-003

Unavailable

32

VALVE, AIR (SHOWA)

51456-469-013

$33.69

33

CAP, AIR VALVE

51457-MG1-003

Unavailable

34

SEAL SET, FR. FORK

51490-MB9-782

$38.57

35

MARK, FR. FORK

51496-MC7-670

$4.99

36

FORK ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN FM203603 This part replaces 51500-ME5-781.

51500-ME5-783

Unavailable

36

FORK ASSY., L. FR. (NOT AVAILABLE) This part replaces 51500-ME5-782.

51500-ME5-783

Unavailable

36

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-ME5-783

Unavailable

37

PIPE, L. FR. FORK This part replaces 51510-ME5-781.

51510-ME5-782

Unavailable

37

PIPE, L. FR. FORK

51510-ME5-782

Unavailable

38

CASE, L. (LOWER) (NOT AVAILABLE) This part replaces 51521-ME5-781.

51521-ME5-782

Unavailable

38

CASE, L. (LOWER) (NOT AVAILABLE)

51521-ME5-782

Unavailable

39

CASE, PISTON

51530-MB3-671

Unavailable

40

BUSH, PIVOT

51532-MB2-300

Unavailable

41

PIPE B, SEAT

51540-ME5-781

Unavailable

42

BUSH, RUBBER

51545-MJ0-003

$9.38

43

PLATE, ADJUSTER

51558-MJ0-003

Unavailable

44

STABILIZER, FR. FORK | Use up to Frame SN FM206200 This part replaces 53240-MB1-030.

53240-MB1-050

Unavailable

44

STABILIZER, FR. FORK | Use up to Frame SN FM206200 This part replaces 53240-MB1-040.

53240-MB1-050

Unavailable

44

STABILIZER, FR. FORK This part replaces 53240-MB1-040.

53240-MB1-050

Unavailable

44

STABILIZER, FR. FORK | Use up to Frame SN FM206200

53240-MB1-050

Unavailable

44

STABILIZER, FR. FORK

53240-MB1-050

Unavailable

45

BOLT, SOCKET (6MM) | Use up to Frame SN FM203603

90116-MJ0-003

Unavailable

45

BOLT, SOCKET (6X16) | Use from Frame SN FM203604

96600-06016-17

Unavailable

46

BOLT, SOCKET (8MM) (SHOWA) | Use up to Frame SN FM203685 This part replaces 90116-283-010.

90116-383-721

$5.13

46

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

47

SCREW, SOCKET

90150-MJ0-003

Unavailable

48

BOLT, SOCKET (8X28) | Use up to Frame SN FM205457

90152-ME5-000

$3.46

48

BOLT, SOCKET (8X28) | Use from Frame SN FM205458

96700-08028-10

$1.67

49

BOLT, SOCKET (8X17) This part replaces 90153-MB0-000.

90153-MB0-405

$3.38

49

BOLT, SOCKET (8X17)

90153-MB0-405

$3.38

50

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

51

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

52

DUST SEAL

91254-463-003

$22.51

53

O-RING (36.5X2.7)

91305-MJ0-003

$4.99

54

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

55

O-RING (7.8X1.9) (ARAI)

91301-MJ0-003

$2.28

56

O-RING (29.2X3.5)

91356-MA3-661

$3.69

57

O-RING (49.4X3.1)

91308-MJ0-003

$3.58

58

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

59

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

59

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

60

SCREW, PAN (5X10)

93500-05010-0A

$1.49

60

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

60

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

61

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
