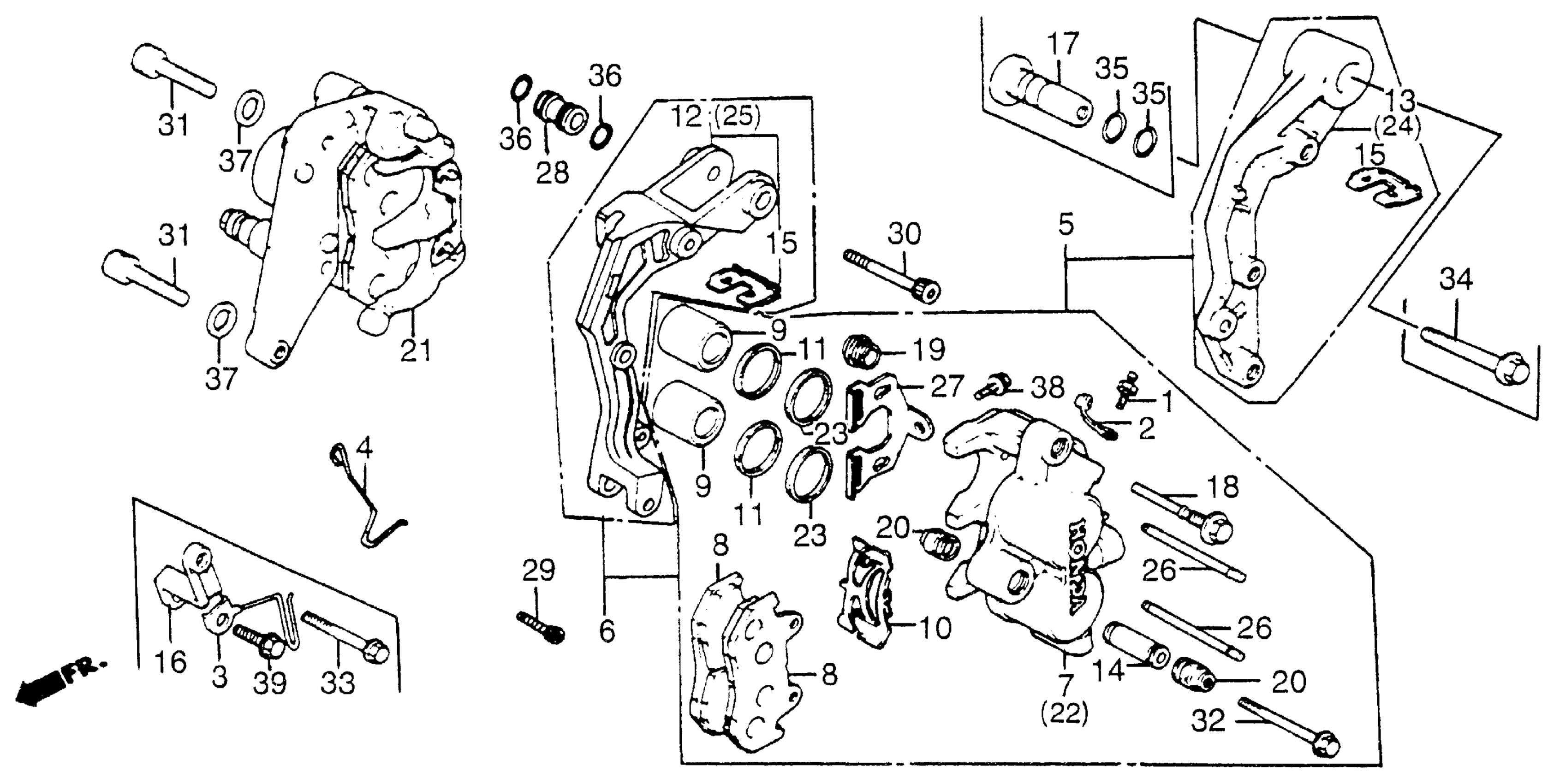

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 431A0-MC7-024.

06435-MC7-405

Unavailable

1

SCREW, BLEEDER

43352-568-003

$7.39

2

CAP, BLEEDER

43353-461-771

$4.70

4

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$8.81

6

CALIPER, L. FR. This part replaces 45100-ME5-781.

45100-ME5-783

Unavailable

6

CALIPER, L. FR. This part replaces 45100-ME5-782.

45100-ME5-783

Unavailable

7

CALIPER, L.

45101-MA3-006

Unavailable

8

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-KL8-004.

45105-KL8-014

Unavailable

8

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-KL8-014

Unavailable

8

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-004.

45105-KL8-014

Unavailable

8

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-007.

45105-KL8-014

Unavailable

8

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-014.

45105-KL8-014

Unavailable

9

PISTON

45107-MA3-006

$45.12

10

SPRING, PAD

45108-MA3-006

$5.84

11

DUST SEAL

45109-166-006

$5.97

12

BRACKET, L. FR.

45110-MB3-006

Unavailable

14

SLEEVE

45111-MA3-006

$12.02

15

RETAINER, BRACKET

45112-445-631

$8.08

18

PIN, BOLT

45131-MA3-006

$15.79

19

BOOT B

45133-MA3-006

$5.07

20

BOOT, PIN

45133-166-016

$3.43

21

CALIPER, R. FR. This part replaces 45200-ME5-781.

45200-ME5-783

Unavailable

21

CALIPER, R. FR. This part replaces 45200-ME5-782.

45200-ME5-783

Unavailable

22

CALIPER, R. (NOT AVAILABLE)

45201-MA3-006

Unavailable

23

SEAL, PISTON

45209-166-006

$7.76

25

BRACKET, R. FR.

45210-MB4-006

Unavailable

26

PIN, HANGER

45215-MA3-006

$11.62

27

PLATE

45217-MJ0-006

Unavailable

28

SLEEVE, FR. CALIPER BRACKET

51536-MB2-000

Unavailable

29

BOLT, SOCKET (6X25)

90105-MJ1-000

Unavailable

30

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

31

BOLT, SOCKET (10X40) (NOT AVAILABLE)

90164-460-840

Unavailable

32

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$5.64

36

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.22

36

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.22

37

WASHER, PLAIN (10MM)

94102-10000

$0.68

38

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.48

38

BOLT, FLANGE (6X10)

95701-06010-07

$1.48
