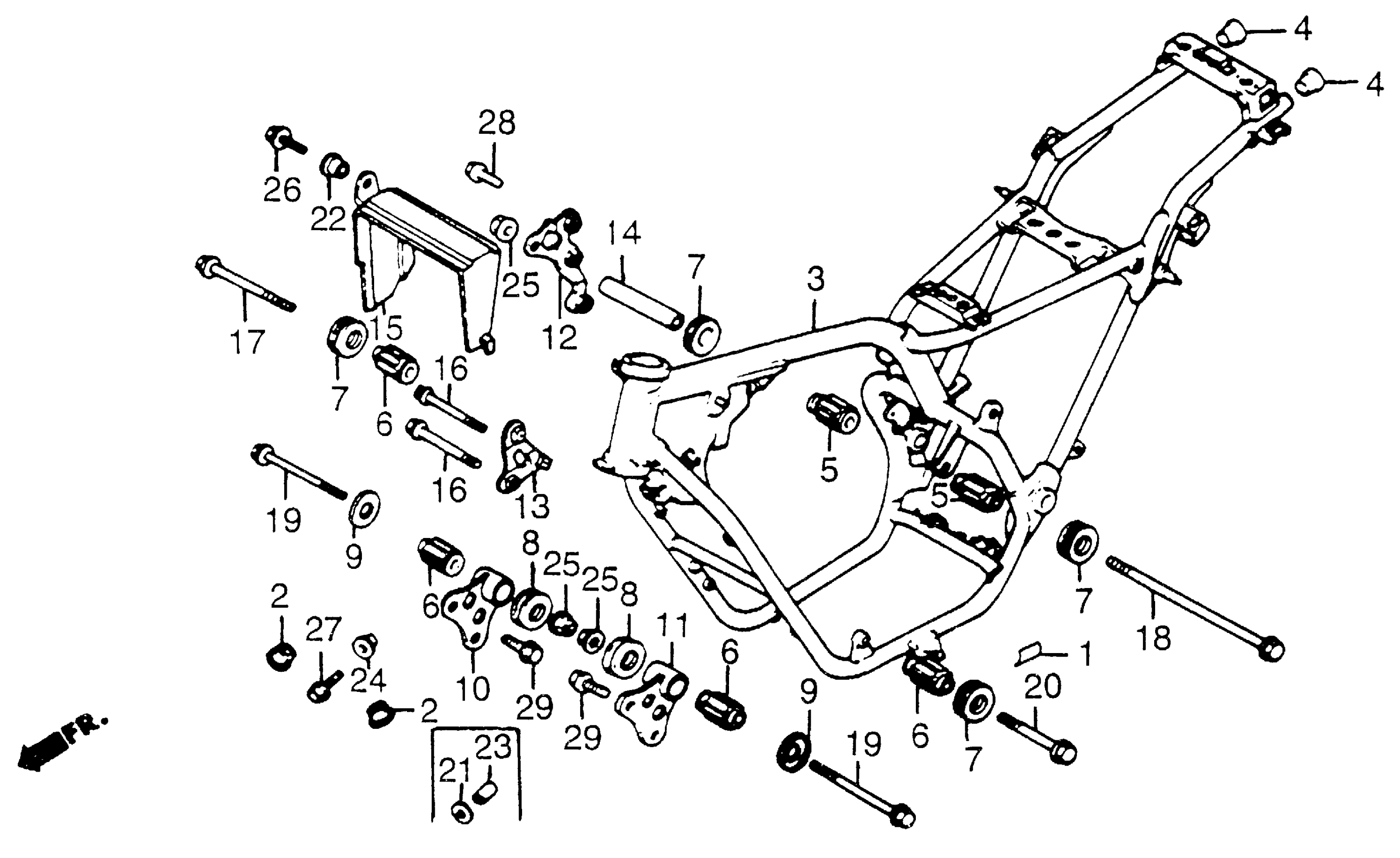

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 FRAME Diagram

#

Description
Price

1

LABEL, OIL LEVEL GAUGE CAUTION

11347-ME5-670

Unavailable

2

GROMMET, OIL COOLER

15605-MA6-000

Unavailable

3

FRAME *NH1* (BLACK) | Use up to Frame SN FM206200 This part replaces 50100-ME5-780ZA.

50100-ME5-781ZA

Unavailable

3

FRAME *NH1* (BLACK) | Use up to Frame SN FM206200

50100-ME5-781ZA

Unavailable

4

CAP, SUB-TUBE

50180-ME5-000

Unavailable

5

RUBBER A, ENGINE MOUNTING

50201-461-000

Unavailable

6

RUBBER B, MOUNTING

50202-ME5-000

$21.25

7

RUBBER C, MOUNTING This part replaces 50203-MB0-000.

50203-MB0-010

$25.10

7

RUBBER C, MOUNTING

50203-MB0-010

$25.10

8

RUBBER C, MOUNTING

50203-ME5-000

Unavailable

9

WASHER, MOUNTING RUBBER

50204-ME5-000

Unavailable

10

BRACKET, R. FR. ENGINE HANGER

50350-ME5-000

Unavailable

11

BRACKET, L. FR. ENGINE HANGER

50351-ME5-000

Unavailable

12

BRACKET, R. RR. ENGINE HANGER

50352-ME5-000

Unavailable

13

PLATE, R. FR. ENGINE HANGER (LOWER)

50354-ME5-000

Unavailable

14

COLLAR, DISTANCE

50362-ME5-000

Unavailable

15

COVER, RR. SHOCK (UPPER)

50760-ME5-000

Unavailable

16

BOLT, FLANGE (8X55) (NOT AVAILABLE) This part replaces 90110-ME5-000.

90166-MA3-660

Unavailable

17

BOLT, ENGINE HANGER (10X54)

90120-ME5-000

Unavailable

18

BOLT, ENGINE HANGER (10X185) | Use up to Frame SN FM205457

90122-ME5-000

Unavailable

18

BOLT, RR. ENGINE HANGER (10X188) | Use from Frame SN FM205458

90123-MJ1-000

Unavailable

19

BOLT, FLANGE (10X75)

90102-MN0-000

$15.18

19

BOLT, FLANGE (10X75) This part replaces 90123-ME5-000.

90102-MN0-000

$15.18

20

BOLT, ENGINE HANGER (10X58) | Use up to Frame SN FM205457

90126-ME5-000

Unavailable

20

BOLT, SPECIAL FLANGE (10X60) | Use from Frame SN FM205458

90163-MA3-660

Unavailable

22

WASHER (6X20)

90512-KF9-900

$3.06

22

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$3.06

24

COLLAR (.8X11)

90551-MG7-000

$5.80

25

NUT, FLANGE (10MM)

94050-10000

$1.59

26

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

27

BOLT, FLANGE (8X16) This part replaces 95700-08016-07.

95701-08016-07

$1.80

27

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

28

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

28

BOLT, FLANGE (8X20)

95701-08020-07

$1.87

29

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

29

BOLT, FLANGE (8X20)

95701-08020-07

$1.87

29

BOLT, FLANGE (8X20) This part replaces 95800-08020-07.

95701-08020-07

$1.87
