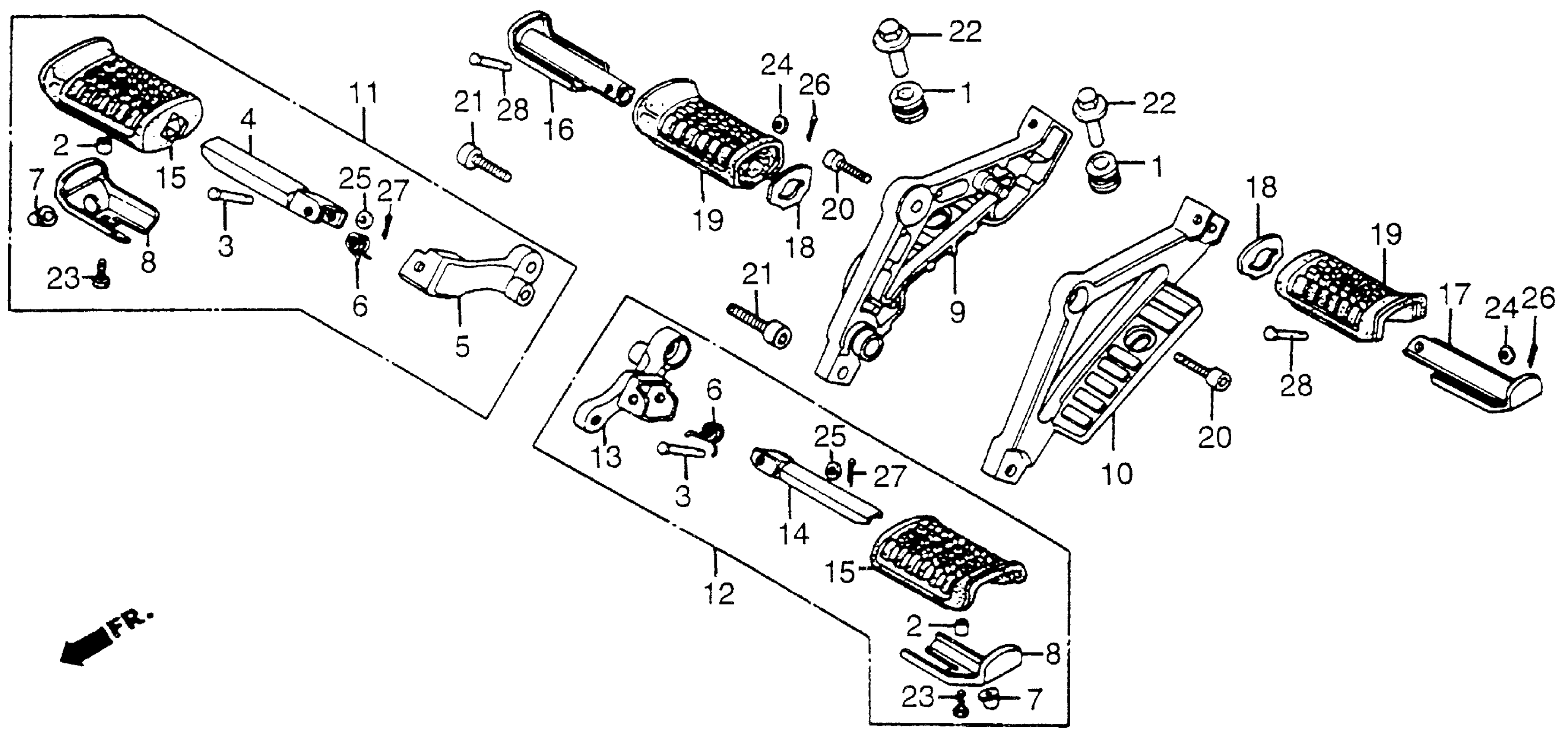

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 FOOTPEGS Diagram

#

Description
Price

1

RUBBER, MUFFLER SETTING (NOT AVAILABLE)

18421-ME5-000

Unavailable

2

COLLAR, CHAIN CASE

40515-413-000

$2.92

3

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

3

PIN, STEP BAR JOINT

50603-033-010

$3.30

4

BAR, R. FOOTPEG

50612-MB1-000

Unavailable

5

BRACKET, R. FOOTPEG

50615-ME5-000

Unavailable

6

SPRING, STEP RETURN

50617-195-000

Unavailable

7

SLIDER, STEP

50618-MB1-000

$4.13

8

STOPPER, STEP RUBBER

50619-MB0-000

Unavailable

9

HOLDER, R. FOOTPEG

50620-ME5-000

Unavailable

10

HOLDER, L. FOOTPEG (NOT AVAILABLE)

50621-ME5-000

Unavailable

11

FOOTPEG ASSY., R. MAIN (NOT AVAILABLE)

50630-ME5-000

Unavailable

12

FOOTPEG ASSY., L. MAIN (NOT AVAILABLE) | Use up to Frame SN FM206200 This part replaces 50640-ME5-000.

50640-ME5-010

Unavailable

12

FOOTPEG ASSY., L. MAIN (NOT AVAILABLE)

50640-ME5-010

Unavailable

13

BRACKET, L. FOOTPEG | Use up to Frame SN FM206200 This part replaces 50641-ME5-000.

50641-ME5-010

Unavailable

13

BRACKET, L. FOOTPEG

50641-ME5-010

Unavailable

13

BRACKET, L. FOOTPEG | Use up to Frame SN FM206200

50641-ME5-010

Unavailable

14

BAR, L. FOOTPEG

50642-MB1-000

Unavailable

15

RUBBER, MAIN FOOTPEG

50661-MB0-000

Unavailable

16

BAR, R. PILLION STEP (NOT AVAILABLE)

50711-MB0-000

Unavailable

17

BAR, L. PILLION FOOTPEG

50712-MB0-000

Unavailable

18

WASHER, PILLION FOOTPEG

50714-MB0-000

Unavailable

19

RUBBER, PILLION FOOTPEG This part replaces 50715-MB0-000.

50715-MJ1-000

Unavailable

19

RUBBER, PILLION FOOTPEG

50715-MJ1-000

Unavailable

20

BOLT, SOCKET (8X22)

90142-ME5-000

Unavailable

21

BOLT, SOCKET (10X40)

90143-ME5-010

Unavailable

22

NUT, MUFFLER MOUNTING

90353-ME5-000

Unavailable

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (8MM)

94102-08000

$1.49

26

PIN, COTTER (1.6X10)

94201-16100

$1.49

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

27

PIN, COTTER (1.6X25)

94201-16250

$1.49

28

PIN C, PILLION FOOTPEG

95015-83000

$2.41
