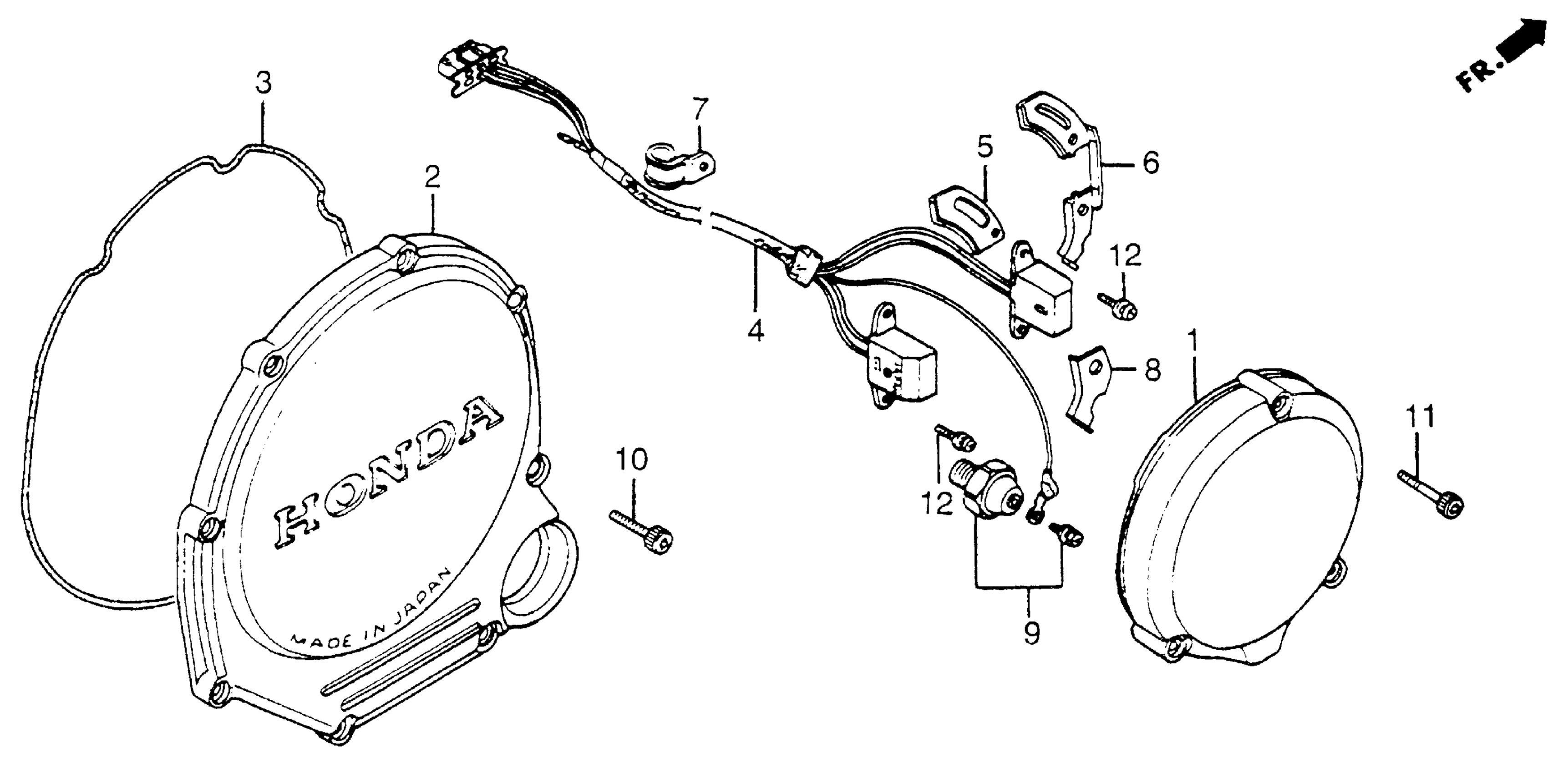

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 CLUTCH COVER + PULSE GENERATOR Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11311-ME5-000

Unavailable

2

COVER, CLUTCH

11331-ME5-000

Unavailable

3

GASKET, CLUTCH COVER

11396-ME5-000

Unavailable

4

GENERATOR ASSY., PULSE (NOT AVAILABLE) This part replaces 30300-ME5-000.

30310-ME5-000

Unavailable

4

GENERATOR ASSY., PULSE (NOT AVAILABLE)

30310-ME5-000

Unavailable

5

CLAMP, PULSE WIRE | Use up to Engine SN 2209157 This part replaces 30311-ME5-000.

30313-ME5-000

Unavailable

5

CLAMP, PULSE WIRE | Use from Engine SN 2209158

30311-ME5-010

Unavailable

5

CLAMP, PULSE WIRE | Use up to Engine SN 2209157

30313-ME5-000

Unavailable

5

CLAMP, PULSE WIRE | Use up to Engine SN 2209157 This part replaces 30322-ME5-000.

30313-ME5-000

Unavailable

6

CLAMP, PULSE WIRE

30313-ME5-000

Unavailable

7

CLAMP, PULSE WIRE (B)

30315-ME5-000

Unavailable

8

CLAMP, PULSE WIRE | Use up to Engine SN 2209157

30313-ME5-000

Unavailable

8

CLAMP, PULSE WIRE | Use up to Engine SN 2209157 This part replaces 30322-ME5-000.

30313-ME5-000

Unavailable

8

CLAMP, OIL PRESSURE WIRE | Use from Engine SN 2209158

30322-ME5-010

Unavailable

9

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2203837 This part replaces 35500-MB9-004.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2203837 This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2203837 This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2203837 This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2203837

35500-MJ4-024

$42.43

10

BOLT, SOCKET (6X22)

90005-ME5-000

Unavailable

11

BOLT, SOCKET (6X32)

90006-ME5-000

Unavailable

12

SCREW-WASHER (5X14) This part replaces 90049-ME5-000.

93892-05014-08

$1.49

12

SCREW-WASHER (5X14)

93892-05014-08

$1.49
