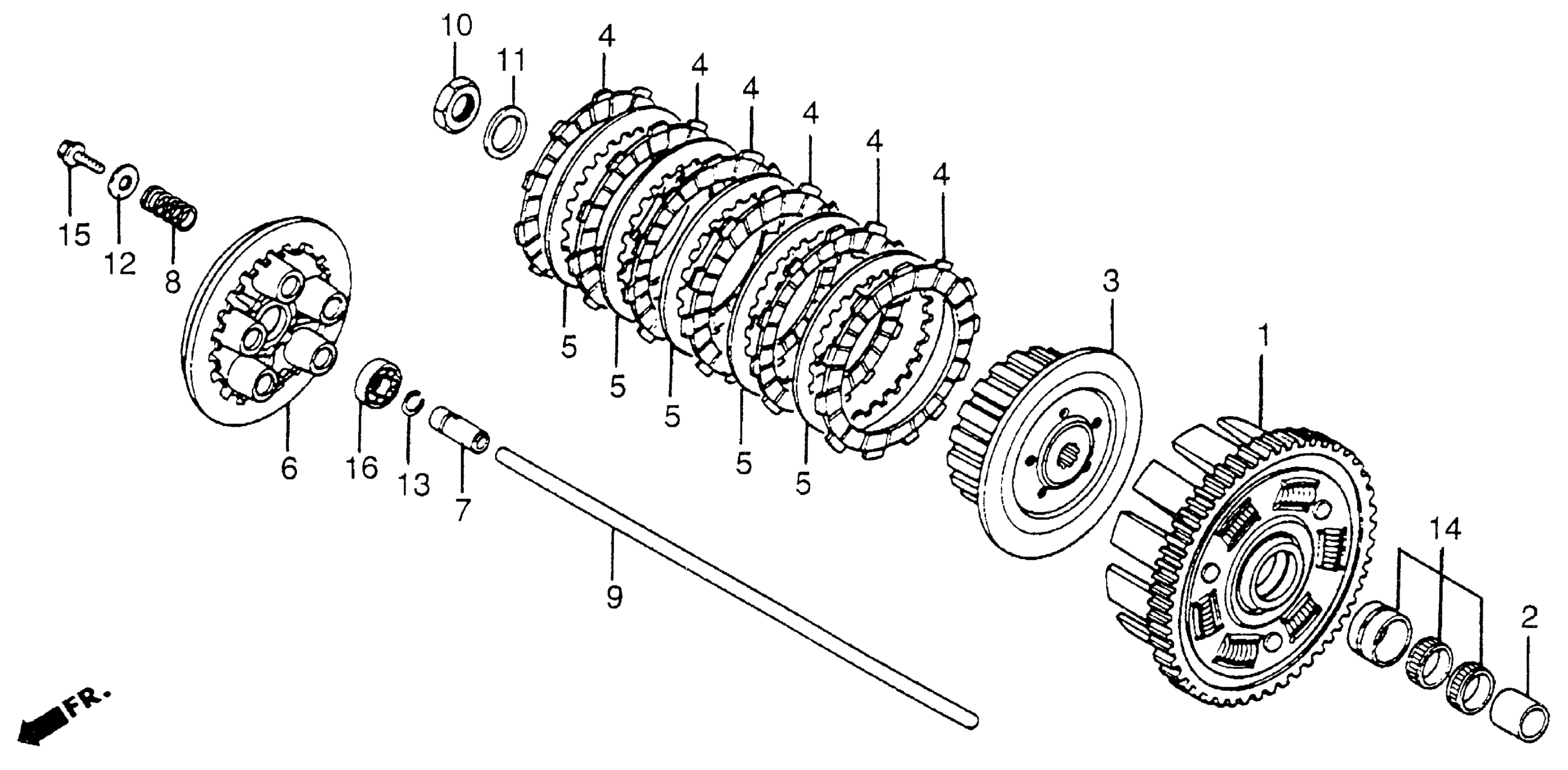

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 CLUTCH Diagram

CLUTCH (OUTER)

22100-ME5-671

Unavailable

GUIDE, CLUTCH (OUTER)

22116-ME5-000

Unavailable

CENTER, CLUTCH (NOT AVAILABLE)

22120-ME5-013

Unavailable

DISK, CLUTCH FRICTION

22201-KY2-000

$14.84

DISK, CLUTCH FRICTION This part replaces 22201-MA6-000.

22201-KY2-000

$14.84

PLATE, CLUTCH This part replaces 22321-ME5-003.

22321-GHB-811

$12.02

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

PLATE, CLUTCH PRESSURE

22350-ME5-003

Unavailable

PIECE, CLUTCH JOINT

22366-ME5-000

Unavailable

SPRING, CLUTCH

22401-MB0-000

$5.40

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-MB0-000

Unavailable

NUT, LOCK (22MM)

90201-MB0-770

Unavailable

WASHER, SPRING (22MM) This part replaces 90432-MB0-000.

90432-MB0-010

$9.93

WASHER, SPRING (22MM)

90432-MB0-010

$9.93

WASHER (6X19)

90481-259-000

Unavailable

CLIP (11MM)

90605-ME5-000

Unavailable

BEARING, NEEDLE (21X42X26)

91024-ME5-008

Unavailable

BOLT, FLANGE (6X18) This part replaces 95700-06018-08.

95701-06018-08

$1.62

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08
