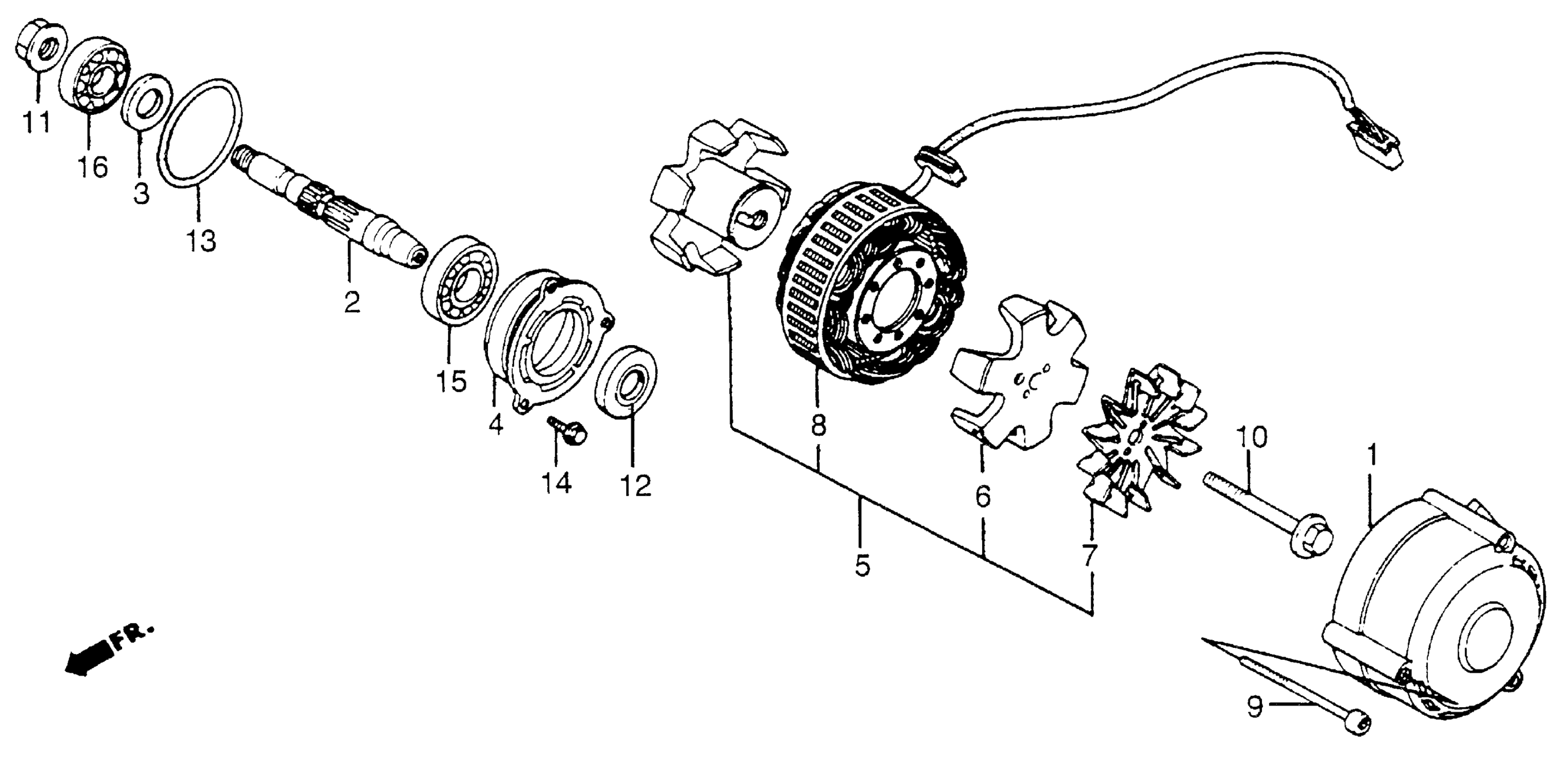

Honda CB650SCA (85) NIGHTHAWK 650, JPN, VIN# JH2RC130-FM200001 TO JH2RC130-FM208821 ALTERNATOR Diagram

COVER, ALTERNATOR (NOT AVAILABLE)

11341-ME5-000

Unavailable

SHAFT, ALTERNATOR (NOT AVAILABLE)

28151-ME5-000

Unavailable

COLLAR, ALTERNATOR SHAFT

28154-ME5-000

Unavailable

HOLDER, ALTERNATOR BEARING

28156-ME5-000

Unavailable

ALTERNATOR ASSY. This part replaces 31100-ME5-015.

31100-ME5-842

Unavailable

ALTERNATOR ASSY. This part replaces 31100-ME5-025.

31100-ME5-842

Unavailable

FLYWHEEL This part replaces 31110-ME5-005.

31110-MJ1-671

Unavailable

FLYWHEEL This part replaces 31110-MJ1-670.

31110-MJ1-671

Unavailable

FLYWHEEL

31110-MJ1-671

Unavailable

FAN, ALTERNATOR

31115-ME5-005

Unavailable

STATOR This part replaces 31120-ME5-015.

31120-ME5-842

Unavailable

STATOR This part replaces 31120-ME5-025.

31120-ME5-842

Unavailable

STATOR

31120-ME5-842

Unavailable

BOLT, SOCKET (6X78) | Use up to Engine SN 2209247

90008-ME5-000

Unavailable

BOLT, SOCKET (6X80) | Use from Engine SN 2209248

96700-06080-00

Unavailable

BOLT, FLANGE (10X62)

90023-ME5-000

Unavailable

NUT, FLANGE (16MM)

90055-ME5-000

Unavailable

OIL SEAL (25X41X7) (ARAI)

91207-ME5-003

$13.40

O-RING (53.8X3.1)

91302-657-000

$5.01

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

BEARING, RADIAL BALL (6203)

96120-62030-00

$17.70
