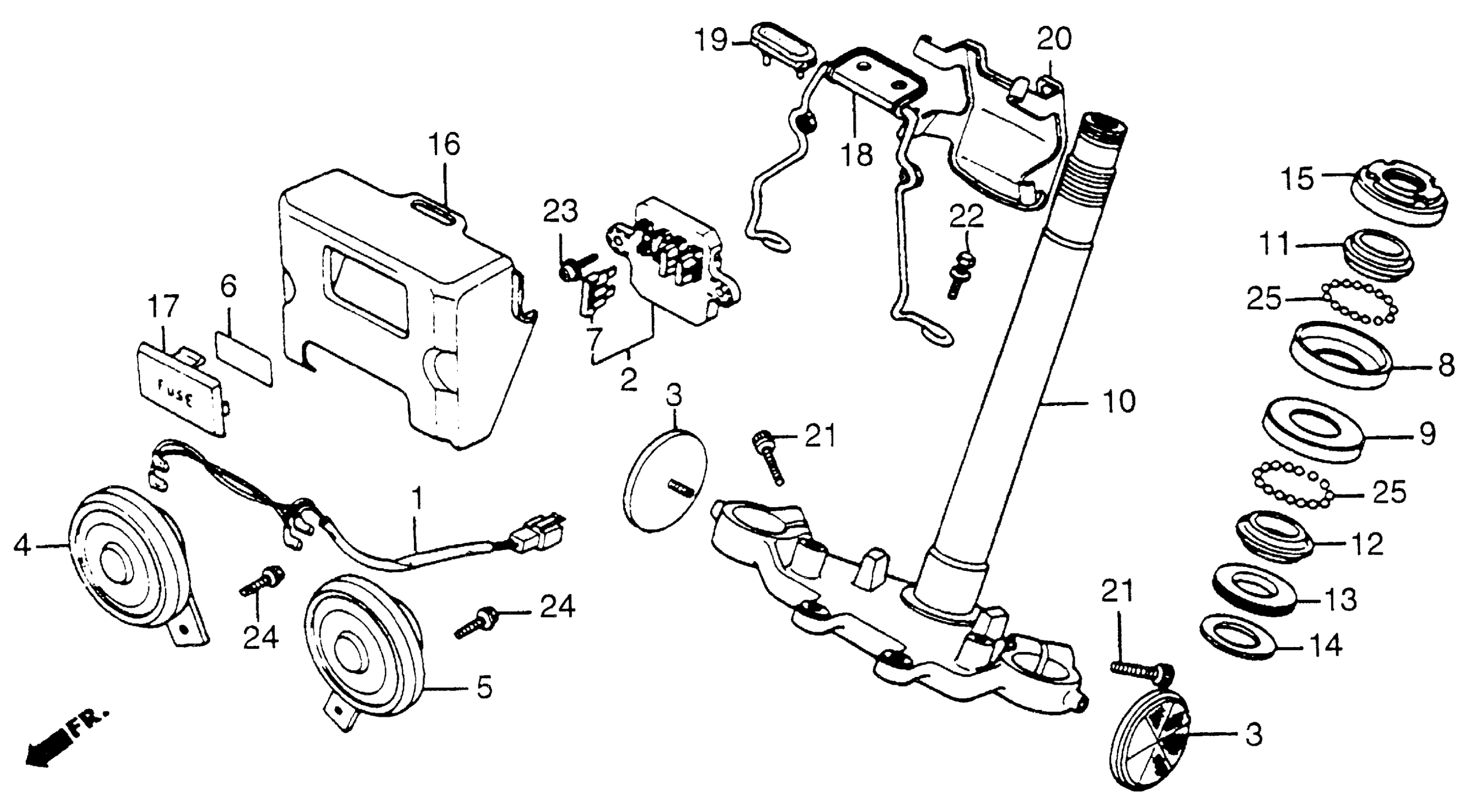

Honda CB650SCA (84) NIGHTHAWK 650, JPN, VIN# JH2RC130-EM100001 TO JH2RC130-EM109962 STEERING STEM + FUSE Diagram

#

Description
Price

1

SUB-HARNESS, HORN

32106-MB0-000

Unavailable

2

BOX ASSY., JOINT

32450-ME5-003

Unavailable

3

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

3

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

3

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

4

HORN ASSY. (HIGH) (NOT AVAILABLE) This part replaces 38110-ME5-000.

38110-ME5-650

Unavailable

4

HORN ASSY. (HIGH) (NOT AVAILABLE)

38110-ME5-650

Unavailable

5

HORN ASSY. (LOW) (NOT AVAILABLE) This part replaces 38120-MB1-700.

38120-MB1-740

Unavailable

5

HORN ASSY. (LOW) (NOT AVAILABLE)

38120-MB1-740

Unavailable

6

LABEL, FUSE

38215-ME5-000

Unavailable

7

FUSE, BLADE (15A) This part replaces 38231-SA5-003.

98200-31500

$1.49

7

FUSE, BLADE (15A)

98200-31500

$1.49

8

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

8

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

9

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

9

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

10

STEM, STEERING *PB123PA* (PEARL SIREN BLUE-A) This part replaces 53200-ME5-670.

53200-ME5-670ZA

Unavailable

10

STEM, STEERING *PB123PA* (PEARL SIREN BLUE-A)

53200-ME5-670ZA

Unavailable

11

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

11

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

12

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

12

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

13

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

14

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

15

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

15

THREAD, STEERING HEAD TOP This part replaces 53220-460-840.

53220-422-000

$32.73

16

COVER, FR.

61401-ME5-000

Unavailable

17

LID, FR. COVER (NOT AVAILABLE)

61402-ME5-000

Unavailable

18

STAY, FR. COVER

61405-ME5-000

Unavailable

19

RUBBER, FR. COVER

61406-ME5-000

Unavailable

20

COVER, JOINT BOX

61410-ME5-000

Unavailable

21

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

22

BOLT-WASHER (6X16)

93405-06016-07

$1.74

22

BOLT-WASHER (6X16) This part replaces 93495-06016-07.

93405-06016-07

$1.74

23

SCREW-WASHER (6X18) (NOT AVAILABLE)

93891-06018-07

Unavailable

24

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

24

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

25

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
