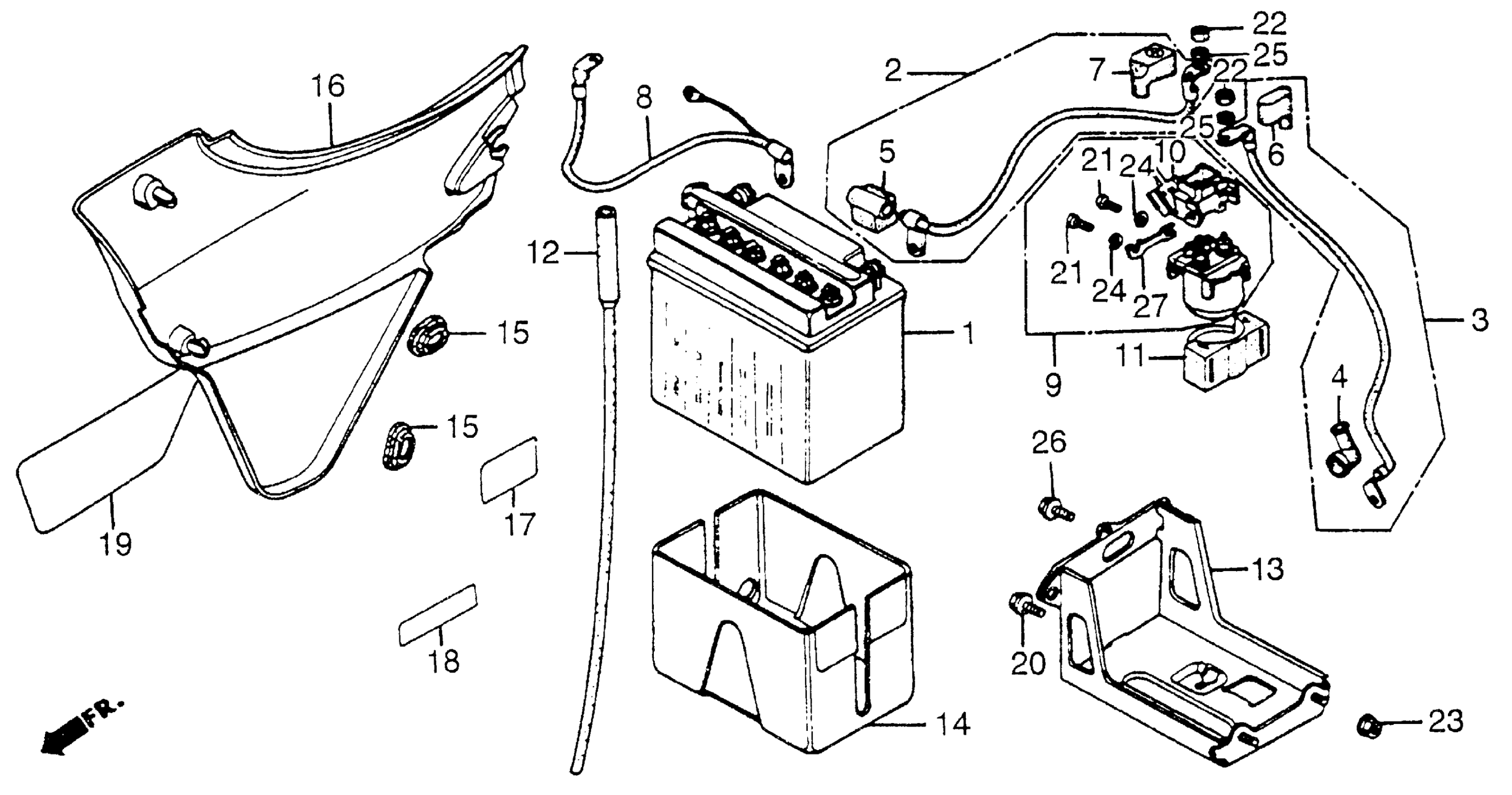

Honda CB650SCA (84) NIGHTHAWK 650, JPN, VIN# JH2RC130-EM100001 TO JH2RC130-EM109962 RIGHT SIDE COVER + BATTERY + STARTER MAGNETIC SWITCH Diagram

#

Description
Price

1

BATTERY (YB12AL-A) This part replaces 31500-ME5-602.

31500-ME5-602AH

Unavailable

1

BATTERY (YB12AL-A) This part replaces 31500-ME5-671.

31500-ME5-602AH

Unavailable

1

BATTERY (YB12AL-A) This part replaces 31500-ME5-672.

31500-ME5-602AH

Unavailable

2

CABLE, STARTER BATTERY (NOT AVAILABLE) This part replaces 32401-ME5-000.

32401-ME5-010

Unavailable

2

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-ME5-010

Unavailable

3

CABLE, STARTER MOTOR

32410-ME5-000

Unavailable

4

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

4

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

5

COVER, BATTERY TERMINAL

32412-ME5-000

Unavailable

6

COVER, MAGNETIC SWITCH TERMINAL

32412-426-000

Unavailable

7

COVER A, MAGNETIC SWITCH

32415-425-000

$3.30

8

CABLE, BATTERY GROUND

32601-ME5-020

Unavailable

8

CABLE, BATTERY GROUND This part replaces 32601-ME5-010.

32601-ME5-020

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$131.64

10

COVER, FUSE

35852-MB0-007

Unavailable

11

RUBBER, SHOCK ABSORBER

35856-MB0-007

Unavailable

12

TUBE, BATTERY

50325-ME5-000

Unavailable

13

BOX ASSY., BATTERY

50328-ME5-000

Unavailable

13

BOX ASSY., BATTERY This part replaces 50328-ME5-010.

50328-ME5-000

Unavailable

14

RUBBER, BATTERY (NOT AVAILABLE)

50329-ME5-000

Unavailable

15

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

16

COVER, R. SIDE *NH1Z* (WL) (BLACK-Z) (NOT AVAILABLE)

836A1-ME5-770ZA

Unavailable

16

COVER, R. SIDE *R107CU* (WL) (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

836A1-ME5-770ZB

Unavailable

19

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-ME5-670

Unavailable

20

BOLT, RECESSED (6X14) This part replaces 92300-06014-0A.

92301-06014-0A

$1.49

20

BOLT, RECESSED (6X14)

92301-06014-0A

$1.49

21

SCREW, PAN (4X6)

93500-04006-0H

$1.49

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

WASHER, SPRING (4MM)

94111-04800

$1.49

25

WASHER, SPRING (6MM)

94111-06800

$1.49

26

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

26

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

27

FUSE F (30A)

98200-53000

$1.49
