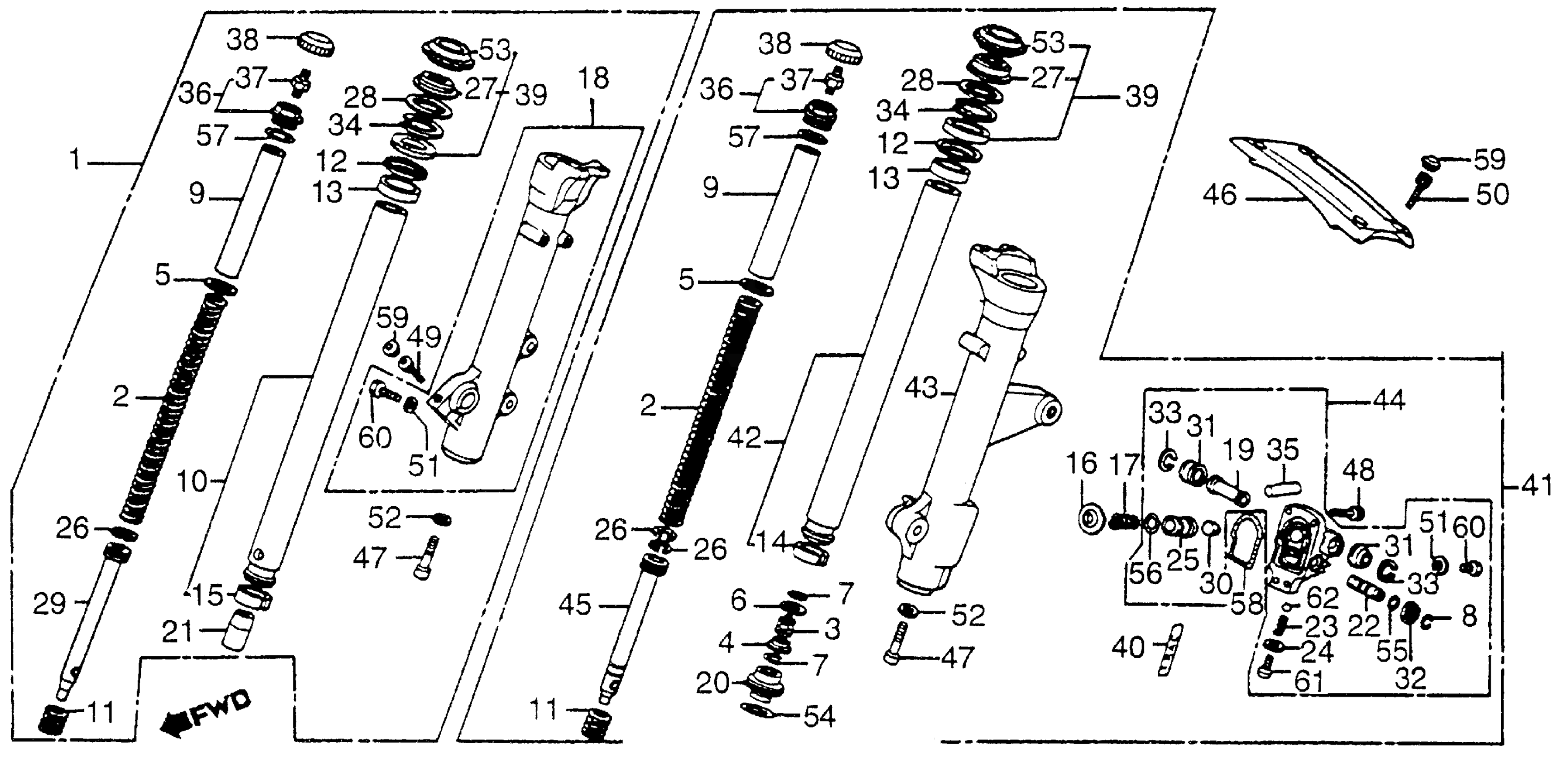

Honda CB650SCA (84) NIGHTHAWK 650, JPN, VIN# JH2RC130-EM100001 TO JH2RC130-EM109962 FRONT FORK 83-84 Diagram

#

Description
Price

1

FORK ASSY., R. FR. This part replaces 51400-ME5-013.

51400-ME5-023

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-ME5-003

Unavailable

3

SPRING, OIL LOCK

51402-MB7-611

$5.54

4

VALVE, OIL LOCK

51403-MB7-611

$10.85

5

PLATE, SPRING JOINT

51403-ME5-003

Unavailable

6

SEAT, SPRING

51404-MB7-611

$5.26

7

RING, STOPPER

51405-MB7-611

$2.92

8

RING, STOPPER (NOT AVAILABLE)

51406-MB1-771

Unavailable

9

COLLAR, SPRING (NOT AVAILABLE)

51406-ME5-003

Unavailable

10

PIPE, FR. FORK This part replaces 51410-ME5-003.

51410-ME5-013

Unavailable

10

PIPE, FR. FORK

51410-ME5-013

Unavailable

11

SPRING, REBOUND

51411-ME5-003

Unavailable

12

RING, BACK-UP

51412-463-003

$7.75

12

RING, BACK-UP This part replaces 51412-463-305.

51412-463-003

$7.75

13

BUSH, FORK PIPE

51414-463-003

$15.77

14

BUSH, SLIDER

51415-MB9-781

$20.08

15

SLEEVE, FORK PIPE

51415-463-003

$18.74

16

GASKET This part replaces 51417-ME1-671.

51417-MJ0-013

Unavailable

16

GASKET

51417-MJ0-013

Unavailable

17

SPRING, PISTON (NOT AVAILABLE)

51418-ME1-671

Unavailable

18

CASE, R. (LOWER)

51421-ME5-003

Unavailable

19

COLLAR, PISTON (NOT AVAILABLE)

51423-MB1-771

Unavailable

20

PIECE, OIL LOCK

51432-MB7-611

Unavailable

21

PIECE, OIL LOCK (NOT AVAILABLE)

51432-463-003

Unavailable

22

ROD, ADJUSTER (NOT AVAILABLE)

51433-MB1-771

Unavailable

23

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

24

WASHER, SPECIAL (5MM)

51435-MC7-003

$2.92

25

PISTON

51436-MB1-771

Unavailable

26

RING, PISTON

51437-ME5-003

Unavailable

27

HOLDER, GREASE (NOT AVAILABLE)

51438-MB9-781

Unavailable

28

WASHER, HOLDER (NOT AVAILABLE)

51439-MB9-781

Unavailable

29

PIPE, SEAT

51440-ME5-003

Unavailable

30

RUBBER, STOPPER

51441-MC7-003

Unavailable

31

BOOT, PISTON CASE

51442-MC7-003

$10.65

32

WASHER, L. SIDE (NOT AVAILABLE)

51444-MB1-771

Unavailable

33

HOLDER, BOOT

51445-MC7-003

$6.48

34

CIRCLIP (INNER)

51447-463-003

$4.53

35

PIN, PARALLEL (NOT AVAILABLE)

51448-MB1-771

Unavailable

36

BOLT ASSY., FR. FORK

51450-ME5-003

Unavailable

37

VALVE, AIR (SHOWA)

51456-469-013

$33.69

38

CAP, AIR VALVE

51457-MG1-003

Unavailable

39

SEAL SET, FR. FORK This part replaces 51490-MB9-781.

51490-MB9-782

$38.57

39

SEAL SET, FR. FORK

51490-MB9-782

$38.57

39

SEAL SET, FR. FORK This part replaces 51490-MG2-305.

51490-MB9-782

$38.57

39

SEAL SET, FR. FORK This part replaces 51490-463-305.

51490-MB9-782

$38.57

40

MARK, FR. FORK

51496-MC7-670

$4.99

41

FORK ASSY., L. FR. This part replaces 51500-ME5-003.

51500-ME5-023

Unavailable

41

FORK ASSY., L. FR. This part replaces 51500-ME5-013.

51500-ME5-023

Unavailable

41

FORK ASSY., L. FR.

51500-ME5-023

Unavailable

42

PIPE, L. FR. FORK This part replaces 51510-ME5-003.

51510-ME5-013

Unavailable

42

PIPE, L. FR. FORK

51510-ME5-013

Unavailable

43

CASE, L. (LOWER)

51521-ME5-003

Unavailable

44

CASE ASSY., L. PISTON (NOT AVAILABLE)

51530-MB1-771

Unavailable

45

PIPE, L. SEAT

51540-ME5-003

Unavailable

46

STABILIZER, FR. FORK This part replaces 53240-MB1-030.

53240-MB1-050

Unavailable

46

STABILIZER, FR. FORK This part replaces 53240-MB1-040.

53240-MB1-050

Unavailable

46

STABILIZER, FR. FORK

53240-MB1-050

Unavailable

47

BOLT, SOCKET (8MM)

90116-ME1-671

Unavailable

48

BOLT, SOCKET (6X18) This part replaces 90118-MC7-003.

96700-06018-17

Unavailable

48

BOLT, SOCKET (6X18)

96700-06018-17

Unavailable

49

BOLT, SOCKET (8X28)

90152-ME5-000

$3.46

50

BOLT, SOCKET (8X17) This part replaces 90153-MB0-000.

90153-MB0-405

$3.38

50

BOLT, SOCKET (8X17)

90153-MB0-405

$3.38

51

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

52

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

53

DUST SEAL

91254-463-003

$22.51

54

O-RING (35.5X2)

91302-MA3-661

$2.65

55

O-RING (13.8X2.4) (NOK) This part replaces 91305-MC7-003.

91311-PH7-003

$2.28

55

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.28

55

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

56

O-RING E (33.5X2) (NOT AVAILABLE)

91306-MC7-003

$2.54

57

O-RING (29.2X3.5)

91356-MA3-661

$3.69

58

O-RING (49.4X3.1)

91308-MJ0-003

$3.58

58

O-RING (49.4X3.1) This part replaces 91399-MB0-003.

91308-MJ0-003

$3.58

59

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

60

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

60

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

61

SCREW, PAN (5X10)

93500-05010-0A

$1.49

61

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

61

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

62

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
