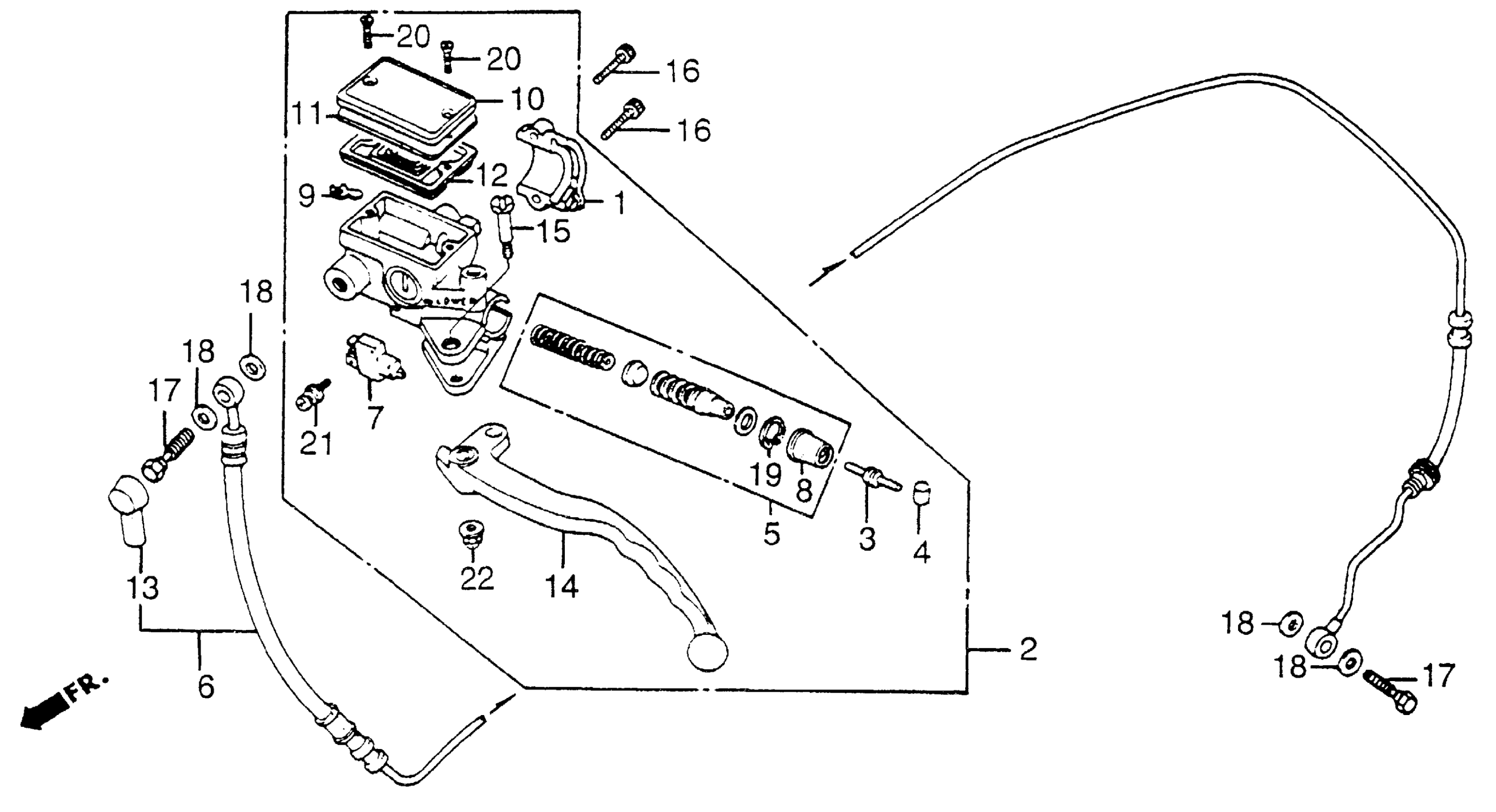

Honda CB650SCA (84) NIGHTHAWK 650, JPN, VIN# JH2RC130-EM100001 TO JH2RC130-EM109962 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

2

MASTER CYLINDER ASSY., CLUTCH

22880-ME5-772

Unavailable

3

ROD, PUSH

22884-MB0-006

$18.97

4

BUSH

22885-MB0-006

$11.88

5

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$68.24

6

PIPE, CLUTCH (NOT AVAILABLE) This part replaces 22889-ME5-003.

22889-ME5-013

Unavailable

6

PIPE, CLUTCH (NOT AVAILABLE)

22889-ME5-013

Unavailable

7

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

8

BOOT

45504-410-003

$11.17

9

PROTECTOR

45512-MA6-006

$4.09

10

CAP, MASTER CYLINDER | Use from Frame SN EM101319

45513-KE5-026

$38.35

10

CAP SET, FR. BRAKE MASTER CYLINDER (NOT AVAILABLE) | Use up to Frame SN EM101318

45540-KE5-305

Unavailable

11

PLATE, DIAPHRAGM | Use from Frame SN EM101319

45518-MB4-671

$11.13

12

DIAPHRAGM

45520-MA5-672

$16.64

13

BOOT, MASTER CYLINDER

45522-422-000

$7.99

14

LEVER, L. HANDLEBAR

53178-KE8-006

$22.74

15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

16

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$10.11

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$10.11

17

BOLT, OIL (10X22)

90145-KM3-751

$10.11

17

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$10.11

18

WASHER, OIL BOLT

90545-300-000

$5.79

19

CIRCLIP (INNER) (18MM)

90651-377-003

$1.79

20

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

21

SCREW-WASHER (4X12)

93893-04012-07

$1.32

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

22

NUT, FLANGE (6MM)

94050-06000

$0.60
