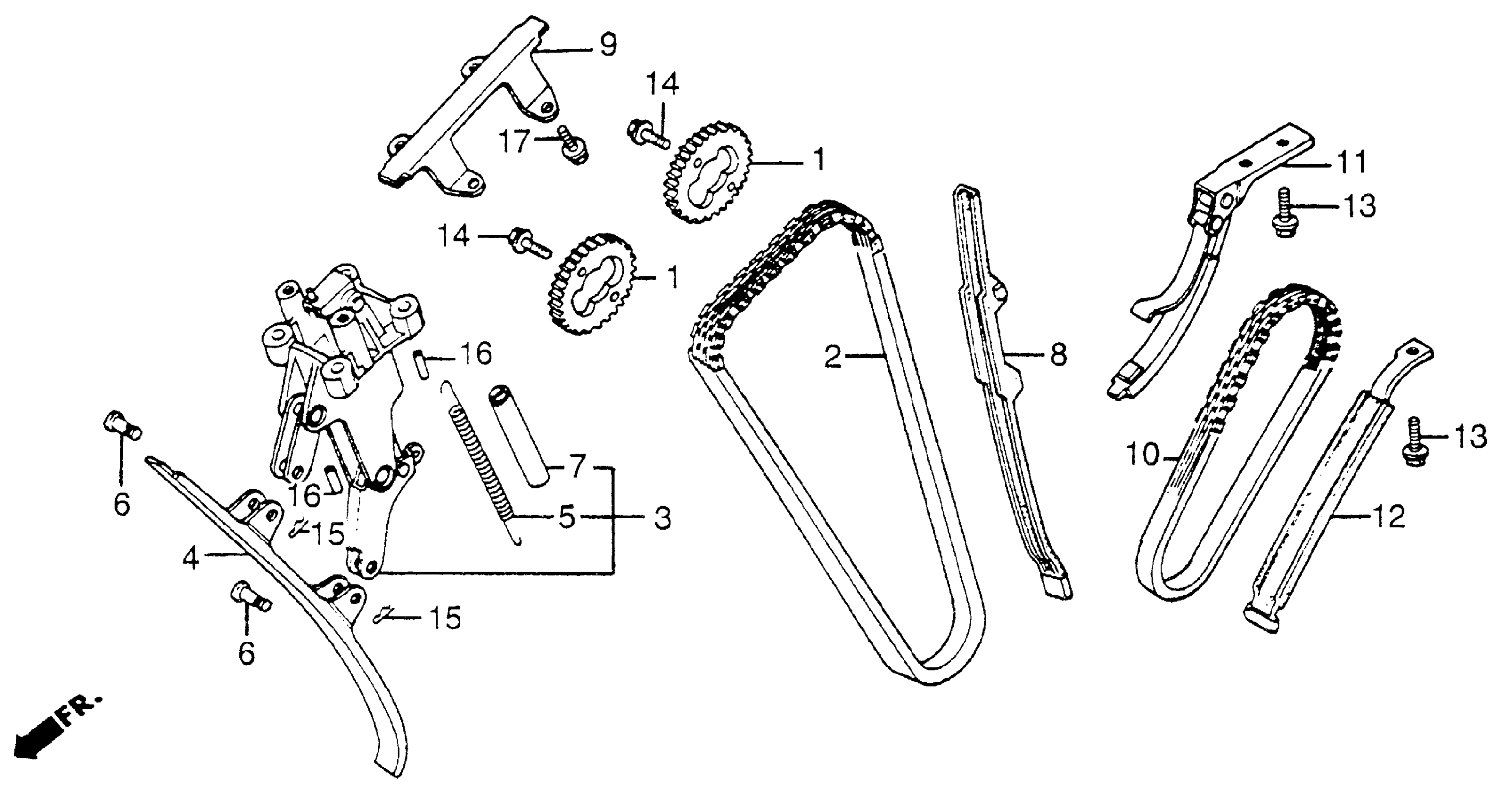

Honda CB650SCA (84) NIGHTHAWK 650, JPN, VIN# JH2RC130-EM100001 TO JH2RC130-EM109962 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM CHAIN This part replaces 14322-ME5-000.

14322-ME5-010

Unavailable

1

SPROCKET, CAM CHAIN

14322-ME5-010

Unavailable

2

CHAIN, CAM (TSUBAKIMOTO) This part replaces 14401-ME5-003.

14401-ME5-013

$153.62

2

CHAIN, CAM (TSUBAKIMOTO) This part replaces 14401-ME5-004.

14401-ME5-013

$153.62

2

CHAIN, CAM (TSUBAKIMOTO)

14401-ME5-013

$153.62

3

BRACKET, TENSIONER This part replaces 14500-ME5-020.

14500-ME5-030

Unavailable

3

BRACKET, TENSIONER

14500-ME5-030

Unavailable

4

SLIPPER, CAM CHAIN TENSIONER This part replaces 14510-ME5-000.

14510-MJ0-000

Unavailable

4

SLIPPER, CAM CHAIN TENSIONER

14510-MJ0-000

Unavailable

5

SPRING, TENSIONER

14514-ME5-010

Unavailable

6

PIN, TENSIONER ARM

14531-ME5-000

Unavailable

7

TUBE, TENSIONER SPRING This part replaces 14539-ME5-000.

14539-ME5-010

$6.00

7

TUBE, TENSIONER SPRING

14539-ME5-010

$6.00

8

GUIDE A, CAM CHAIN (NOT AVAILABLE)

14620-ME5-000

Unavailable

9

GUIDE B, CAM CHAIN This part replaces 14630-ME5-000.

14630-ME5-010

Unavailable

9

GUIDE B, CAM CHAIN

14630-ME5-010

Unavailable

10

CHAIN, ALTERNATOR DRIVE

28161-ME5-000

Unavailable

10

CHAIN, ALTERNATOR DRIVE (DAIDO) (NOT AVAILABLE) This part replaces 28161-ME5-003.

28161-ME5-004

Unavailable

10

CHAIN, ALTERNATOR DRIVE (DAIDO) (NOT AVAILABLE)

28161-ME5-004

Unavailable

11

TENSIONER, ALTERNATOR CHAIN | Use up to Engine SN 2107380 This part replaces 28171-ME5-000.

28171-ME5-010

Unavailable

11

TENSIONER, ALTERNATOR CHAIN | Use up to Engine SN 2107380

28171-ME5-010

Unavailable

11

TENSIONER, ALTERNATOR CHAIN

28171-ME5-010

Unavailable

12

GUIDE, ALTERNATOR CHAIN (NOT AVAILABLE)

28191-ME5-000

Unavailable

13

BOLT, FLANGE SOCKET (6X14) This part replaces 90009-ME5-000.

90009-MZ8-H00

$1.56

13

BOLT, FLANGE SOCKET (6X14)

90009-MZ8-H00

$1.56

14

BOLT, UBS (7X13)

90027-ME5-000

$2.92

15

PIN, SPECIAL LOCK (6MM)

90607-ME5-000

$2.89

16

PIN A, DOWEL (10X16)

94301-10160

$2.28

17

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

17

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
