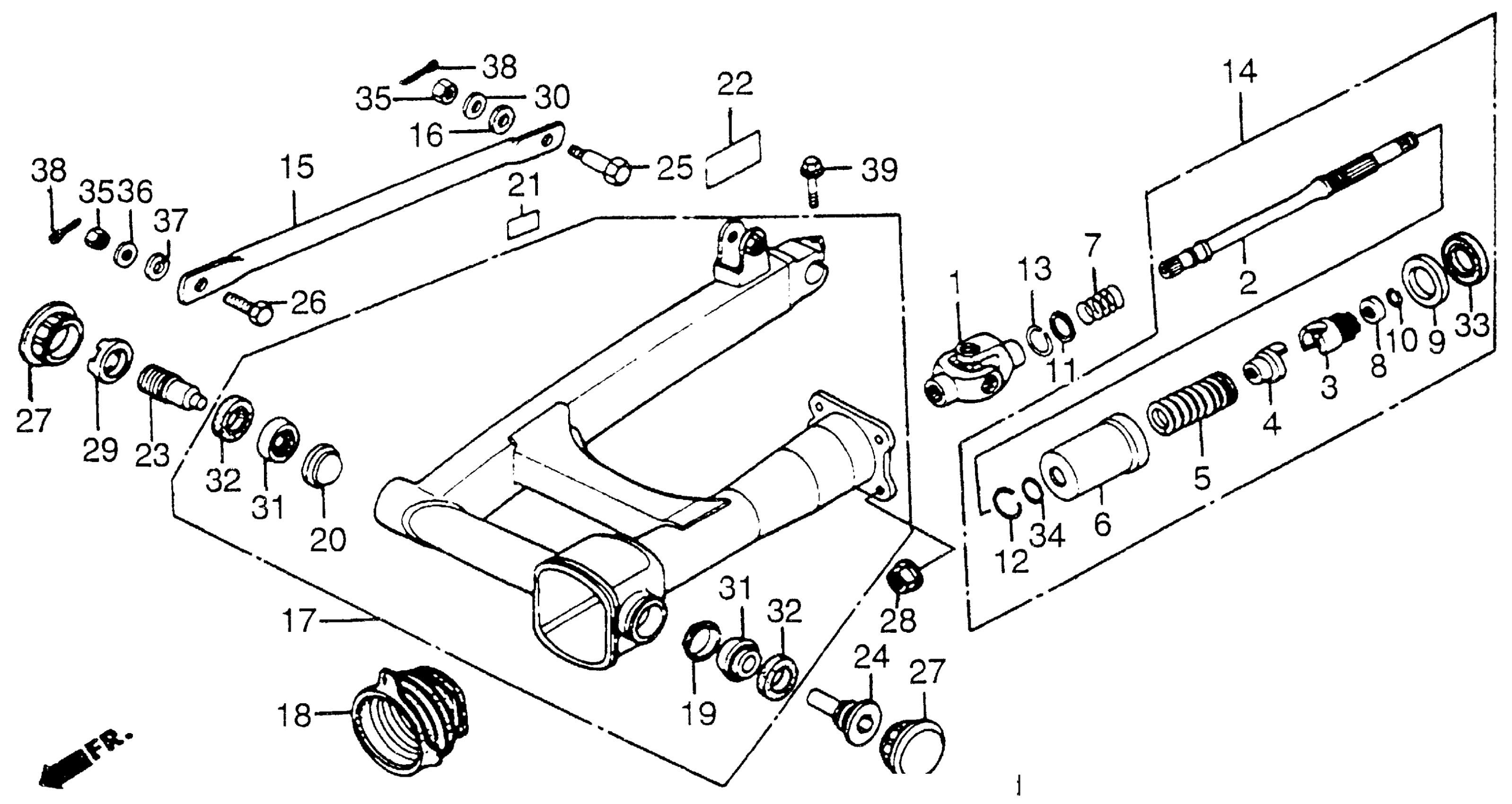

Honda CB650SCA (83) NIGHTHAWK 650, JPN, VIN# JH2RC130-DM000034 TO JH2RC130-DM022939 SWINGARM + DRIVE SHAFT Diagram

JOINT, YOKE (NOT AVAILABLE) This part replaces 40200-ME5-000.

40200-ME5-010

Unavailable

SHAFT, DRIVE This part replaces 40201-ME5-300.

40201-ME5-310

Unavailable

SHAFT, DRIVE

40201-ME5-310

Unavailable

CAM, DAMPER

40211-ME5-000

Unavailable

LIFTER, DAMPER

40212-ME5-000

Unavailable

SPRING, DAMPER CAM

40213-ME5-000

Unavailable

COVER, DAMPER

40214-ME5-000

Unavailable

SPRING, DRIVESHAFT

40215-ME5-000

Unavailable

RING, STOPPER This part replaces 40216-ME5-000.

40216-ME5-020

Unavailable

RING, STOPPER This part replaces 40216-ME5-010.

40216-ME5-020

Unavailable

RING, STOPPER

40216-ME5-020

Unavailable

GUIDE, OIL SEAL

40217-MB0-010

Unavailable

RING, SPRING STOPPER

40218-ME5-000

Unavailable

CIRCLIP

40219-ME5-000

Unavailable

RING, DAMPER COVER

40220-ME5-000

Unavailable

RING, STOPPER

40221-MB0-000

$4.53

STOPPER, DRIVESHAFT SPRING

40222-ME5-000

Unavailable

SHAFT ASSY., DRIVE (NOT AVAILABLE)

40250-ME5-000

Unavailable

ARM, RR. BRAKE STOPPER This part replaces 43431-415-000.

43431-415-010

Unavailable

ARM, RR. BRAKE STOPPER

43431-415-010

Unavailable

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-ME5-000ZA

Unavailable

BOOT, JOINT (NOT AVAILABLE)

52105-ME5-000

Unavailable

PLATE, DUST SEAL This part replaces 52118-ME5-000.

52118-ME5-004

Unavailable

PLATE, DUST SEAL

52118-ME5-004

Unavailable

PLATE, DUST SEAL

52118-415-000

Unavailable

LABEL, MUFFLER CAUTION | Use up to Frame SN DM016289

87504-463-670

Unavailable

LABEL, TIRE CAUTION

87505-ME5-670

Unavailable

BOLT, R. RR. SWINGARM PIVOT

90121-ME5-000

Unavailable

BOLT, L. RR. SHOCK PIVOT

90124-ME5-000

Unavailable

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

CAP, R. LOCK NUT

90302-ME5-000

$19.37

NUT, HEX. (10MM)

90308-ME5-000

Unavailable

NUT, LOCK (23MM)

90354-ME5-000

Unavailable

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-003.

91066-415-006

Unavailable

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-004.

91066-415-006

Unavailable

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-005.

91066-415-006

Unavailable

BEARING (30202) (NIPPON SEIKO)

91066-415-006

Unavailable

OIL SEAL (20X35X5)

91266-ME5-003

Unavailable

OIL SEAL (20X35X5) This part replaces 91266-ME5-004.

91266-ME5-003

Unavailable

OIL SEAL (47X56X7) This part replaces 91271-MB0-000.

91271-MB0-013

$12.43

OIL SEAL (47X56X7) This part replaces 91271-MB0-003.

91271-MB0-013

$12.43

OIL SEAL (47X56X7) This part replaces 91271-MB0-004.

91271-MB0-013

$12.43

OIL SEAL (47X56X7)

91271-MB0-013

$12.43

OIL SEAL (47X56X7) This part replaces 91271-MK3-003.

91271-MB0-013

$12.43

O-RING (18X1.9)

91361-ME5-003

$3.76

O-RING (18X1.9) This part replaces 91361-ME5-004.

91361-ME5-003

$3.76

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
