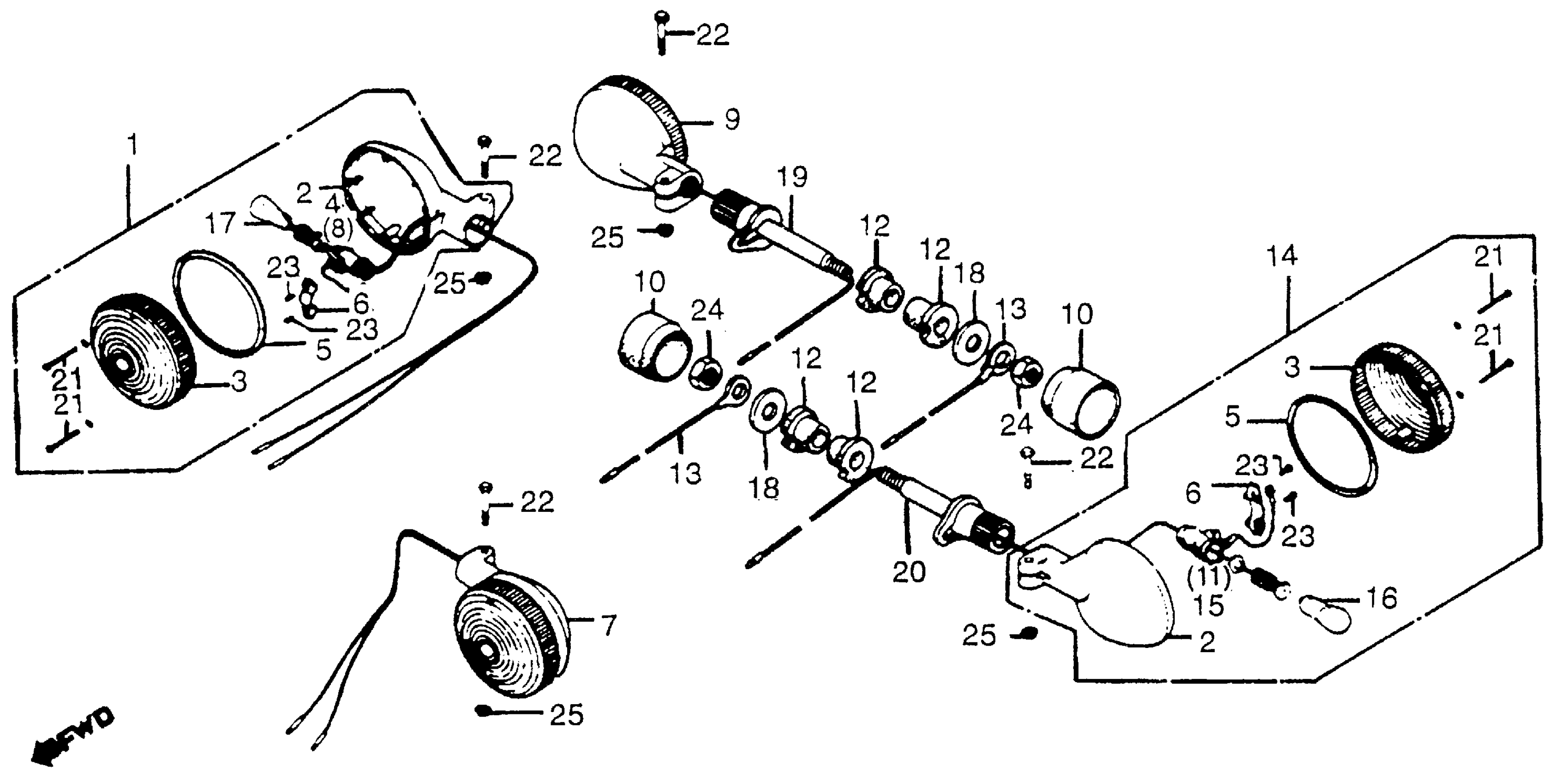

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 TURN SIGNAL Diagram

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE)

33400-460-671

$80.64

BASE, R. FR. TURN SIGNAL (NOT AVAILABLE)

33401-377-671

Unavailable

LENS, FR. TURN SIGNAL

33402-377-671

Unavailable

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-377-671.

33405-461-670

Unavailable

GASKET, TURN SIGNAL LENS

33406-377-671

Unavailable

HOLDER, FR. TURN SIGNAL SOCKET (NOT AVAILABLE)

33407-377-671

Unavailable

TURN SIGNAL ASSY., L. FR. (NOT AVAILABLE)

33450-460-671

Unavailable

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33455-377-671.

33405-461-670

Unavailable

TURN SIGNAL, R. RR.

33600-377-671

Unavailable

BOOT, RR. TURN SIGNAL

33601-460-840

Unavailable

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33605-377-671

Unavailable

RUBBER, RR. TURN SIGNAL SETTING (NOT AVAILABLE)

33606-460-840

Unavailable

WIRE, RR. TURN SIGNAL GROUND (NOT AVAILABLE)

33620-460-840

Unavailable

TURN SIGNAL ASSY., L. RR. (NOT AVAILABLE)

33650-377-671

Unavailable

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33655-377-671

Unavailable

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

WASHER, RR. TURN SIGNAL (NOT AVAILABLE)

90102-460-840

Unavailable

BOLT, R. RR. TURN SIGNAL (NOT AVAILABLE)

90155-460-840

Unavailable

BOLT, L. RR. TURN SIGNAL (NOT AVAILABLE)

90156-460-840

Unavailable

SCREW, PAN (4X25) This part replaces 90192-377-671.

93500-04025-0A

$1.93

SCREW, PAN (4X25)

93500-04025-0A

$1.93

BOLT, HEX. (6X35) This part replaces 93000-06035-0B.

93101-06035-0B

Unavailable

BOLT, HEX. (6X35)

93101-06035-0B

Unavailable

SCREW, PAN (3X8)

93500-03008-0H

$1.49

NUT, HEX. (10MM)

94001-10000-0S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
