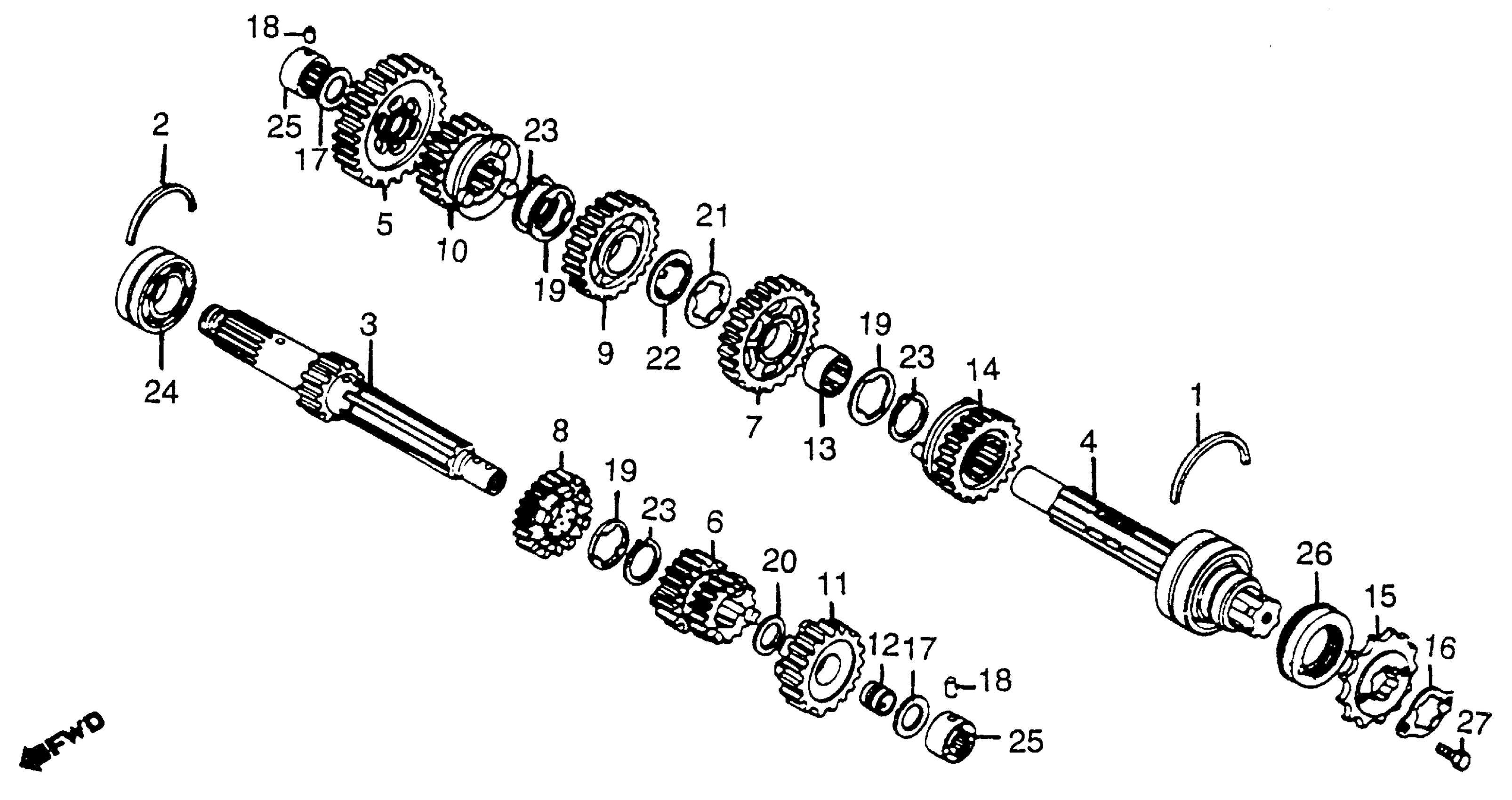

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 TRANSMISSION Diagram

#

Description
Price

1

RING, BEARING SETTING (57MM) (NOT AVAILABLE)

13491-283-000

Unavailable

2

SET-RING (520) This part replaces 13492-283-000.

95015-25200

Unavailable

2

SET-RING (520)

95015-25200

Unavailable

3

MAINSHAFT, TRANSMISSION (13T)

23210-460-680

Unavailable

4

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-426-000

Unavailable

4

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) This part replaces 23220-426-010.

23220-426-000

Unavailable

5

GEAR, COUNTERSHAFT LOW (35T)

23421-460-680

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (18T/22T) (NOT AVAILABLE)

23431-460-680

Unavailable

7

GEAR, COUNTERSHAFT SECOND (32T)

23441-460-680

Unavailable

8

GEAR, MAINSHAFT FOURTH (24T) (NOT AVAILABLE)

23451-460-680

Unavailable

9

GEAR, COUNTERSHAFT THIRD (28T)

23461-460-680

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (25T)

23400-460-680

Unavailable

11

GEAR, MAINSHAFT TOP (26T) (NOT AVAILABLE)

23481-426-000

Unavailable

12

BUSH (20MM) (NOT AVAILABLE)

23482-426-000

Unavailable

13

BUSH, SPLINE (28MM)

23485-369-000

$29.59

14

GEAR, COUNTERSHAFT TOP (23T)

23491-426-010

Unavailable

15

SPROCKET, DRIVE (17T) (NOT AVAILABLE)

23801-460-680

Unavailable

16

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

17

PLATE A, THRUST (1.45MM) (NOT AVAILABLE)

23901-567-319

Unavailable

18

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

19

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90451-286-000

Unavailable

20

WASHER, THRUST (20MM)

90454-107-000

$1.80

21

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

22

WASHER, LOCK (25MM)

90462-323-000

$3.77

23

CIRCLIP (OUTER) (25MM) This part replaces 90602-259-000.

90602-259-010

$6.16

23

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

23

CIRCLIP (OUTER) (25MM) This part replaces 90602-426-000.

90602-259-010

$6.16

24

BEARING, BALL (5205HS) (TOYO)

91002-286-008

Unavailable

25

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91022-426-008.

91023-MKP-D01

$34.39

25

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91023-MM4-003.

91023-MKP-D01

$34.39

26

OIL SEAL (36X57X13)

91205-426-013

Unavailable

27

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
