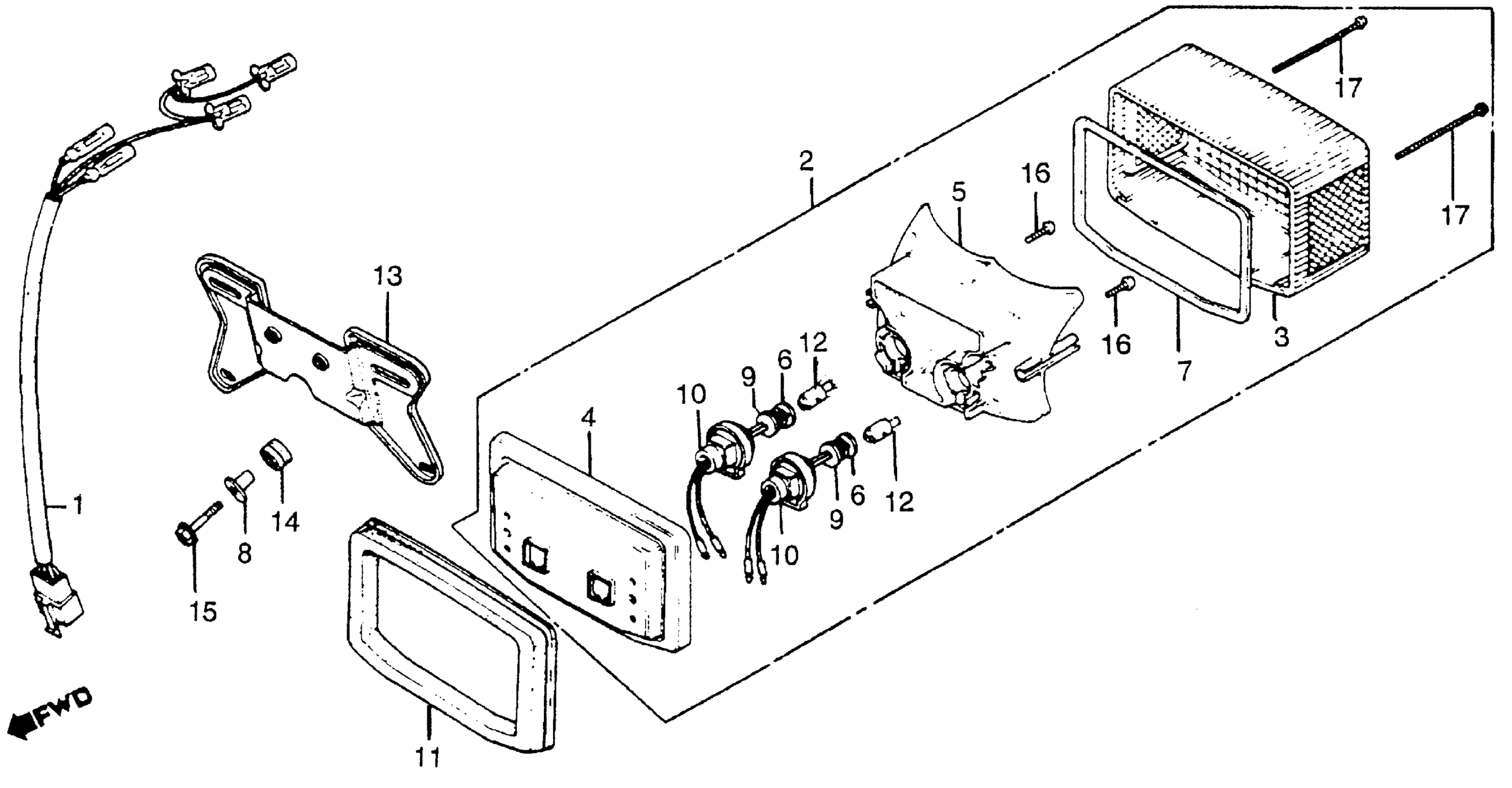

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 TAILLIGHT Diagram

#

Description
Price

1

SUB-WIRE HARNESS, TAILLIGHT (NOT AVAILABLE) This part replaces 32102-460-840.

32102-MC9-670

Unavailable

2

TAILLIGHT UNIT (NOT AVAILABLE) This part replaces 33701-425-771.

33701-MC9-830

Unavailable

2

TAILLIGHT UNIT (NOT AVAILABLE) This part replaces 33701-425-772.

33701-MC9-830

Unavailable

3

LENS, TAILLIGHT

33702-425-771

Unavailable

4

BASE, TAILLIGHT

33703-425-772

Unavailable

5

REFLECTOR This part replaces 33704-425-771.

33704-460-791

Unavailable

6

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

7

GASKET, LENS

33708-425-771

Unavailable

8

COLLAR, TAILLIGHT MOUNT (NOT AVAILABLE)

33709-460-840

Unavailable

9

SOCKET, TAILLIGHT

33710-425-772

Unavailable

10

RUBBER, CUSHION (NOT AVAILABLE)

33711-425-771

Unavailable

11

GASKET, TAILLIGHT BASE

33718-460-840

Unavailable

12

BULB, TAILLIGHT (12V27/8W) (STANLEY)

34906-425-771

$4.40

13

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-460-840

Unavailable

14

RUBBER, CUSHION (NOT AVAILABLE)

84905-460-840

Unavailable

15

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

15

BOLT, HEX. (6X22) This part replaces 92000-06022-0A.

92101-06022-0A

$1.54

15

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

15

BOLT, HEX. (6X22) This part replaces 92100-06022.

92101-06022-0A

$1.54

15

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

16

SCREW, PAN (4X12)

93500-04012-0A

$1.49

17

SCREW, PAN (4X55)

93500-04055-4J

$1.49
