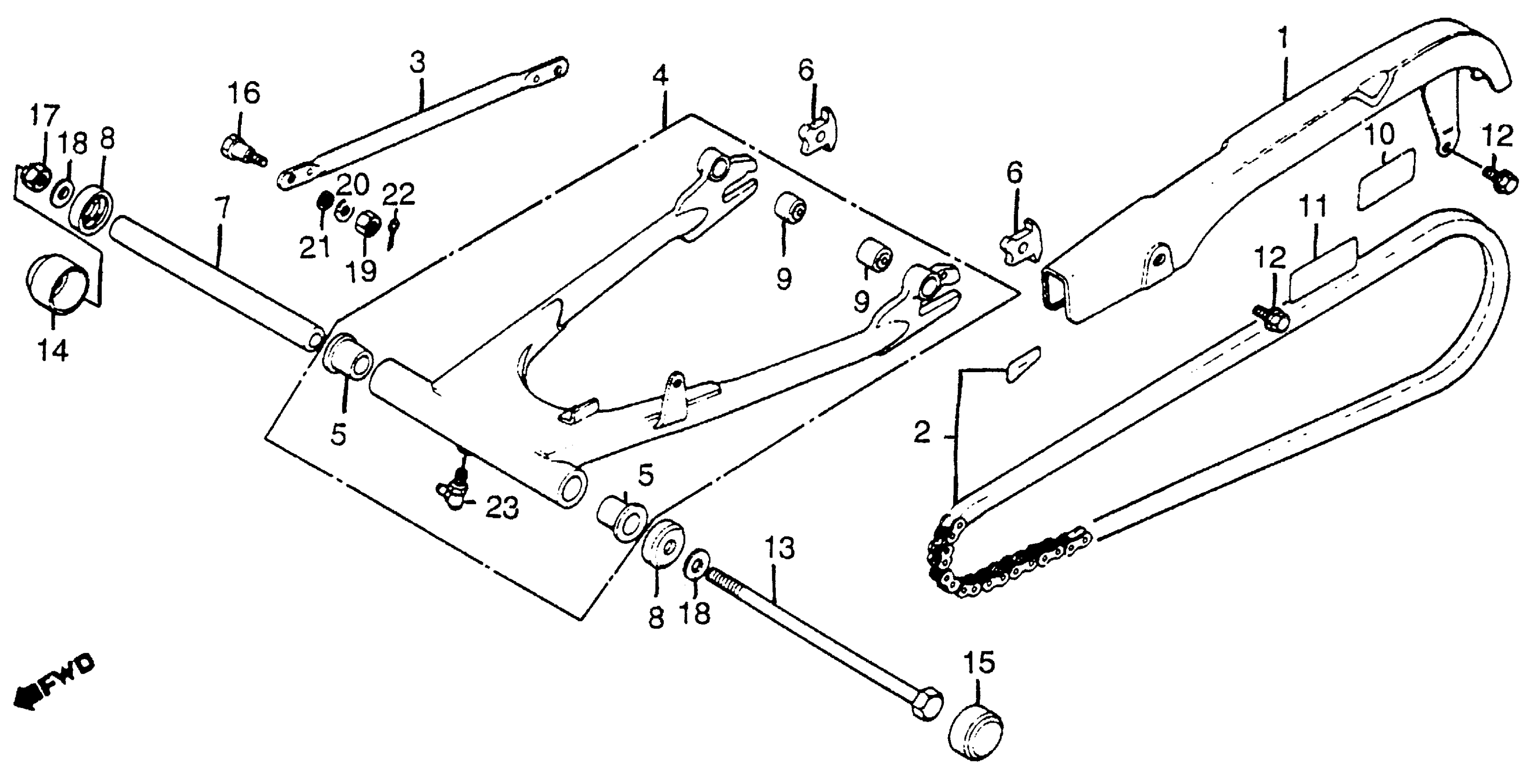

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-460-840

Unavailable

2

CHAIN SET, DRIVE (50MO-106LE) (TAKASAGO) (NOT AVAILABLE) This part replaces 40535-425-643.

40535-425-644

Unavailable

2

CHAIN SET, DRIVE (50MO-106LE) (TAKASAGO) (NOT AVAILABLE)

40535-425-644

Unavailable

3

ARM, RR. BRAKE STOPPER This part replaces 43431-460-000.

43431-460-010

Unavailable

3

ARM, RR. BRAKE STOPPER

43431-460-010

Unavailable

4

SWINGARM ASSY., RR. *PB116M* (PACIFIC BLUE METALLIC)

52100-460-840ZA

Unavailable

4

SWINGARM ASSY., RR. *B100MU* (COSMO BLACK METALLIC)

52100-460-840ZB

Unavailable

5

BUSH, RR. SWINGARM

52108-460-300

Unavailable

6

STOPPER, CHAIN ADJUSTER

52136-ME1-670

Unavailable

6

STOPPER, CHAIN ADJUSTER This part replaces 52136-405-000.

52136-ME1-670

Unavailable

6

STOPPER, CHAIN ADJUSTER This part replaces 52136-425-870.

52136-ME1-670

Unavailable

7

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-460-000

Unavailable

8

CAP, DUST SEAL (NOT AVAILABLE)

52144-460-003

Unavailable

9

BUSH, RR. SHOCK ABSORBER

52451-357-000

Unavailable

10

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-460-840

Unavailable

11

MARK, ACCESSORIES & LOADING CAUTION

87512-461-770

Unavailable

12

BOLT, FLANGE (6X8) This part replaces 90013-425-700.

90011-ZG0-920

Unavailable

13

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-460-840

Unavailable

14

CAP A, SWINGARM PIVOT BOLT (NOT AVAILABLE)

90125-460-840

Unavailable

15

CAP B, SWINGARM PIVOT BOLT (NOT AVAILABLE)

90126-460-840

Unavailable

16

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

17

NUT, SELF-LOCK (16MM) (NOT AVAILABLE)

90354-425-830

Unavailable

18

WASHER (16MM) (NOT AVAILABLE)

90600-425-830

Unavailable

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-10000

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

22

PIN, COTTER (2.0X22)

94201-20220

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

22

PIN, COTTER (2.0X35)

94201-20350

$1.49

22

PIN, COTTER (2.0X22)

94201-29220

$1.49

23

FITTING, GREASE (C.76)

96201-60000

$2.87
