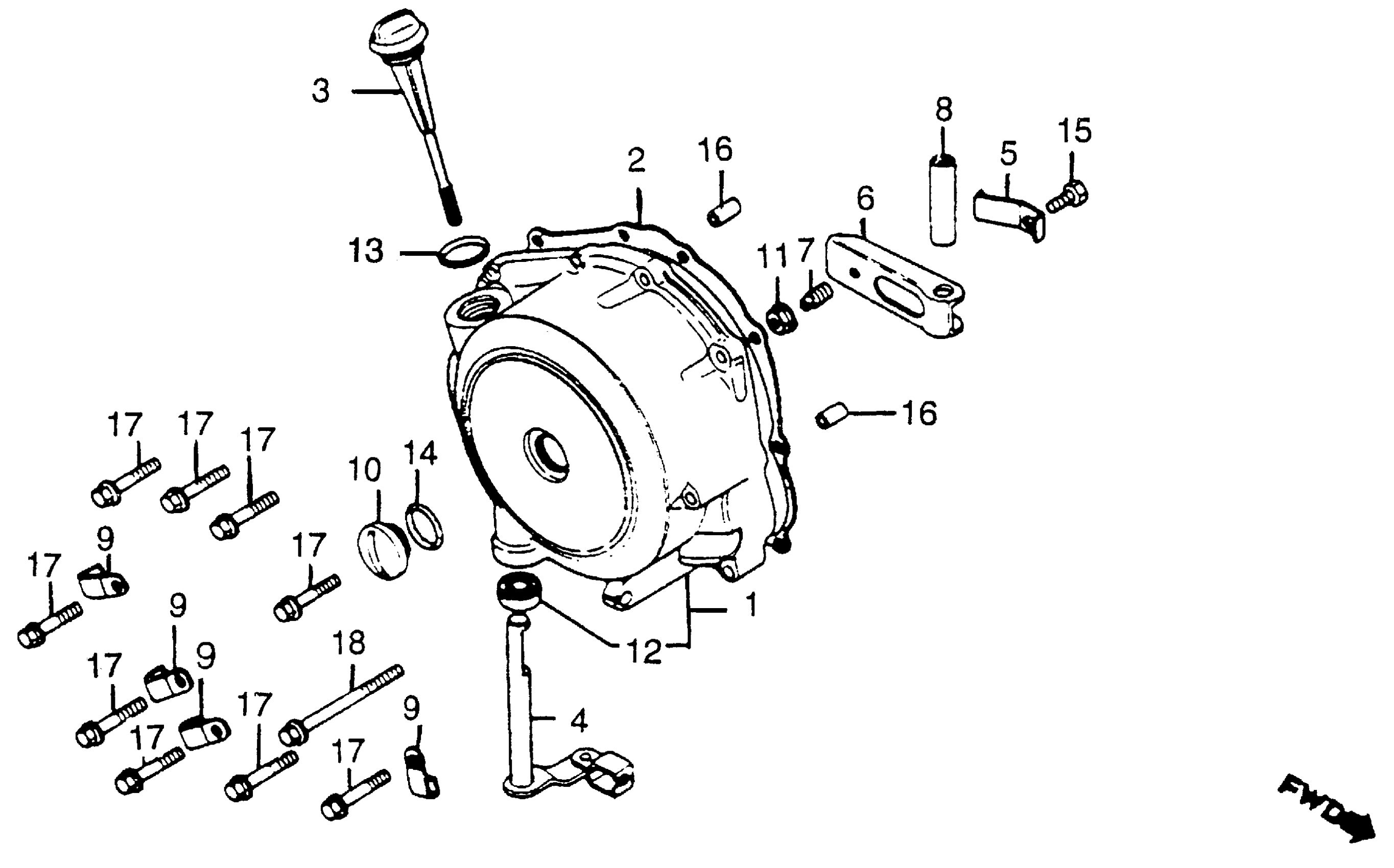

Honda CB650SCA (82) NIGHTHAWK 650, JPN, VIN# JH2RC080-CM000013 TO JH2RC080-CM019135 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-460-780

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-426-000.

11394-426-306

Unavailable

2

GASKET, R. CRANKCASE COVER

11394-426-306

Unavailable

3

DIPSTICK, OIL (NOT AVAILABLE)

15650-426-000

Unavailable

4

LEVER, CLUTCH (NOT AVAILABLE)

22710-460-780

Unavailable

5

SPRING, LEVER (NOT AVAILABLE)

22815-426-000

Unavailable

6

LEVER, CLUTCH ADJ.

22831-426-000

Unavailable

7

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22841-425-000

Unavailable

8

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-422-000

Unavailable

9

CLAMP, CABLE

32111-426-000

Unavailable

9

CLAMP, WIRE This part replaces 32111-460-780.

32111-426-000

Unavailable

10

CAP, CLUTCH ADJUSTING (NOT AVAILABLE)

90042-422-000

Unavailable

11

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

12

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

12

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$4.06

12

OIL SEAL (12X22X5)

91201-965-000

$4.06

13

O-RING (23X2.8) (NOT AVAILABLE)

91302-426-003

Unavailable

14

O-RING (23.5X2.6)

91305-425-003

$3.69

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

17

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

17

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

18

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

18

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

18

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

18

BOLT, FLANGE (6X80)

96001-06080-07

$2.23
